Helical Cutter Head for Ridgid R4331 13" Thickness Planer

SKU: 1040000118001
$339.99 $349.99
Tax included Shipping calculated at checkout.

Includes

Payment & Security

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Trusted Delivery

  • Description
  • Reviews
  • $339.99 $349.99

Ready for immediate FREE shipping.

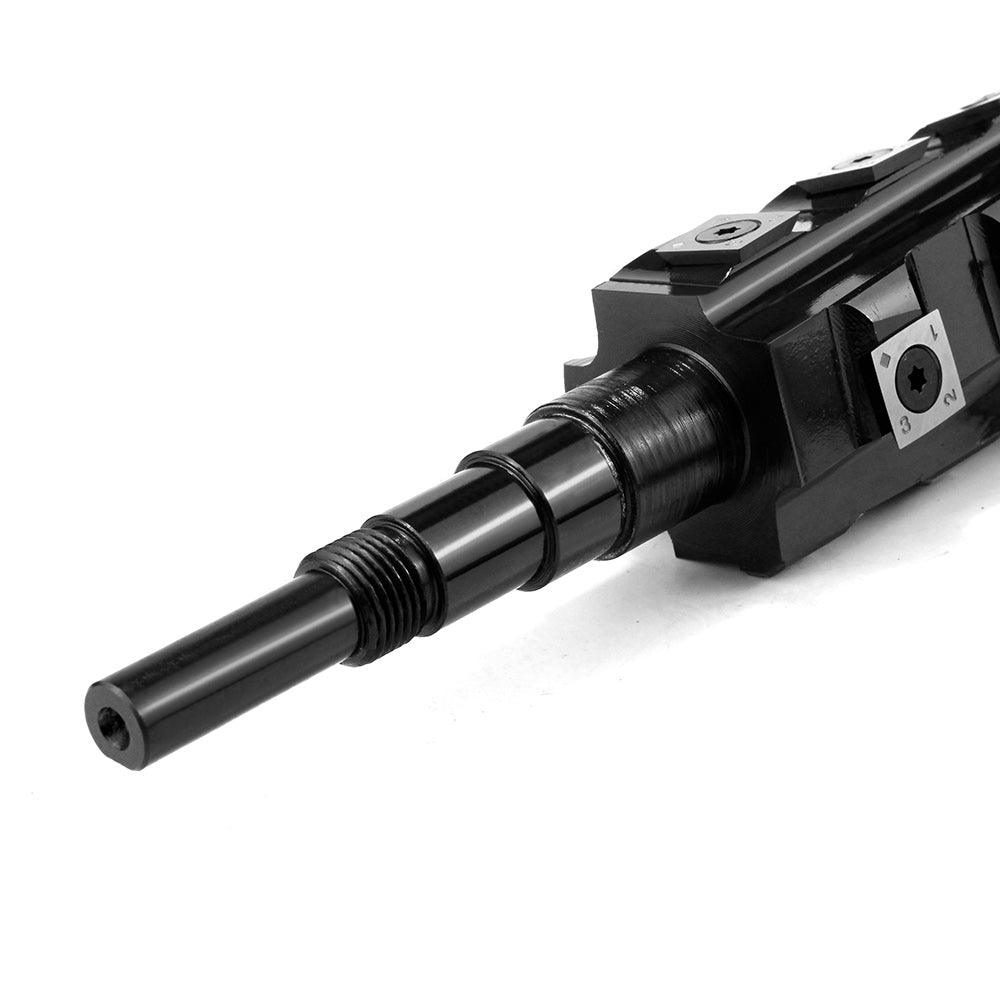

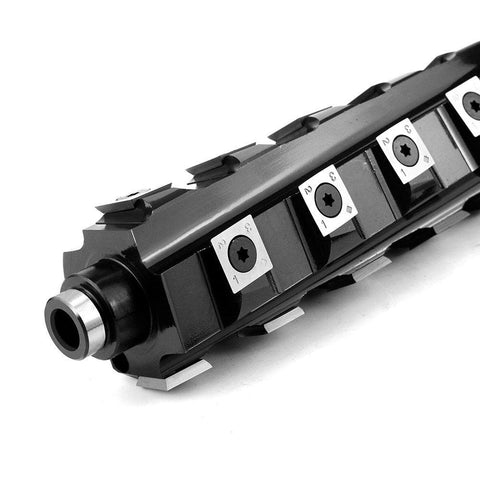

The helical cutter head fits Ridgid R4331 13-in. thickness planer.

This 13" helical cutterhead will take the performance of your Ridgid R4331 planer (thicknesser) to the next level. It will provide you with a noticeably smoother finish, eliminate tear-outs, and significantly reduce the noise level by at least 50%.

#If you need a helical head for the Ridgid TP1300 R4330 planer, please click here.

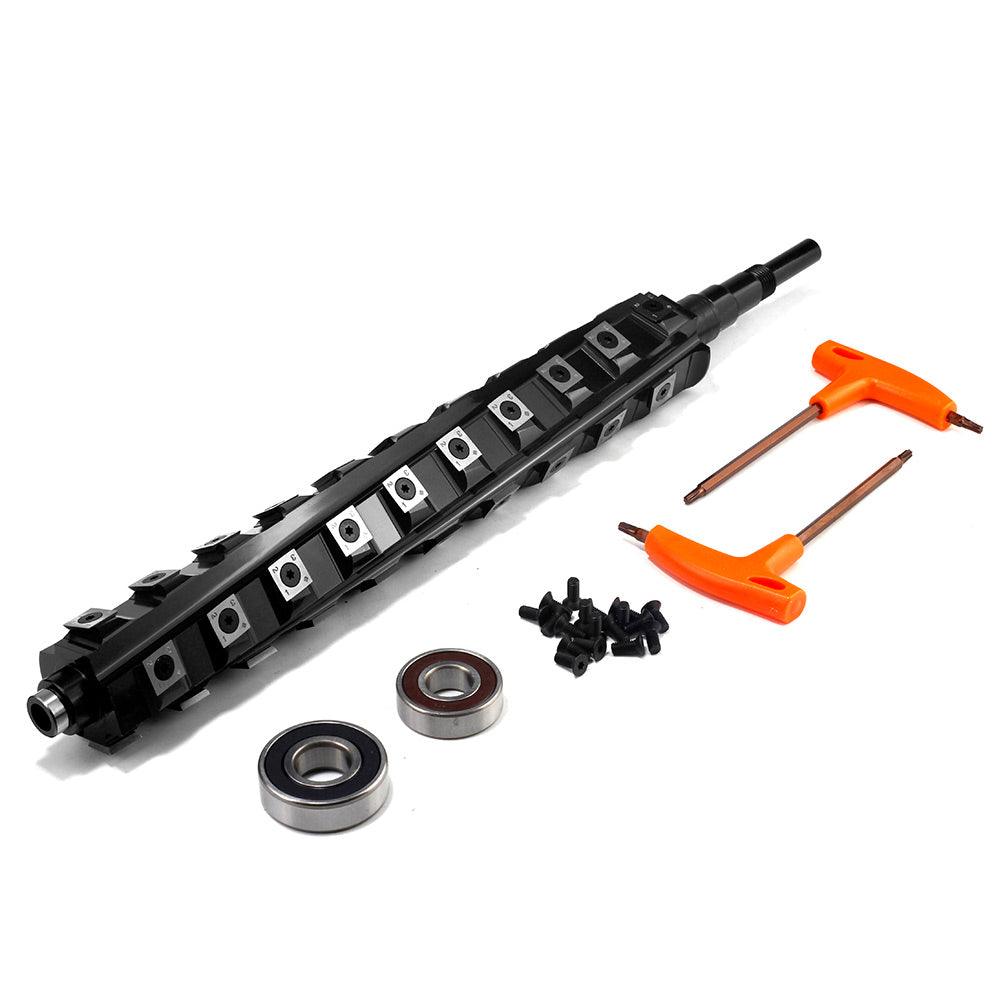

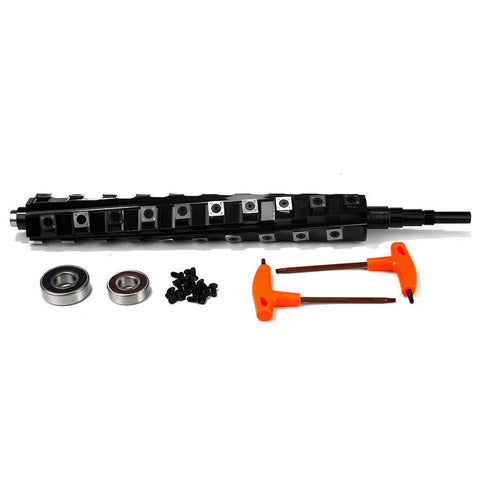

Components Included

  • 1 x 13" helical cutter head
  • 40 x Carbide insert knives
  • 40 x Screws
  • 2 x Screw Drivers
  • A Pair of bearings

Features

  • Fit your Ridgid R4331 thickness planer perfectly.
  • The indexable carbide insert knives are made from top-quality tungsten carbide.
  • The better wood surface finishes on all kinds of hardwoods, softwoods, and artificial wood.
  • The helical style design produces a shear cut, which eliminates tear-outs.
  • 40x lifetime thanks to the top-quality tungsten carbide inserts.
  • Upgraded insert knives: radius-corner design eliminates the lines and scalloped surface, and reduces the possibility of breaking the blades.
  • Producing much smaller chips and your dust collection system will function more efficiently.

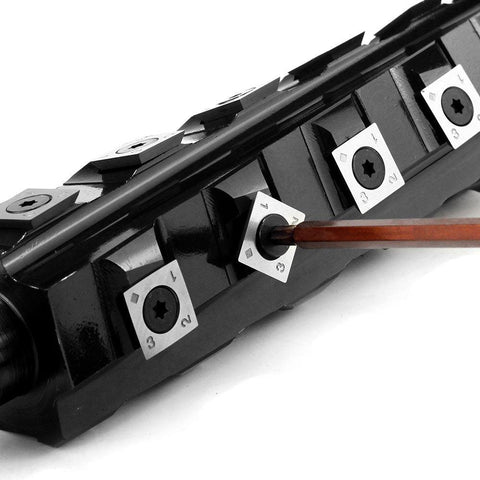

  • Changing blades is effortless and does not require adjustment.
  • No need to re-sharpen the blades any longer.
  • At least 50% noise reduction.
  • The recommended spec for torquing the knives is 6 Newton meters. Please refer to the manual for guidance on installing the carbide insert knives when replacing them.
  • In case you're unable to locate a cutter head that matches your machine model, we also provide an option for a custom cutter head
  • If you need spare carbide insert knives, please click15x15x2.5mm carbide insert

Technical information

Max Wide of Cut 13 Inch
Cutting Wings 4
Quantity of Knives 40
Insert Knives 15x15x2.5mm

Application

  • Wood, Plywood, MDF

SHIPPING DIAMETER

  • Net Weight
  • 7200g
  • Package Size
  • 450 x 100 x 100mm

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Denis Guevin (Victoriaville, CA)
Wow great upgrade

I just bought the upgrade spiral cutter for my ridgid planer and I can't believe the difference it makes. I have owned a portable planer for 25 years, 3 different makes and they were all the same, even the DeWalt. Less noise, less marks, less vibration so the height adjustment doesn't tend to go up by itself, the wood doesn't stall half way in, even with hardwood. I was hesitant to buy because of the price but in my opinion, it's well worth it. For my planer the installation was very simple. And the shipping is very rapid. All in all I'm really satisfied, I just hope it will stand the test of time. I recommend this to everyone who has been having issues with standard knives and swearing when having problems with the feeding of wood.
Thanks alot for the upgrade.

Thank you for your review We are so glad to hear that you are enjoying the upgrade and noticing a difference in noise, marks, and vibration. Happy planing!
