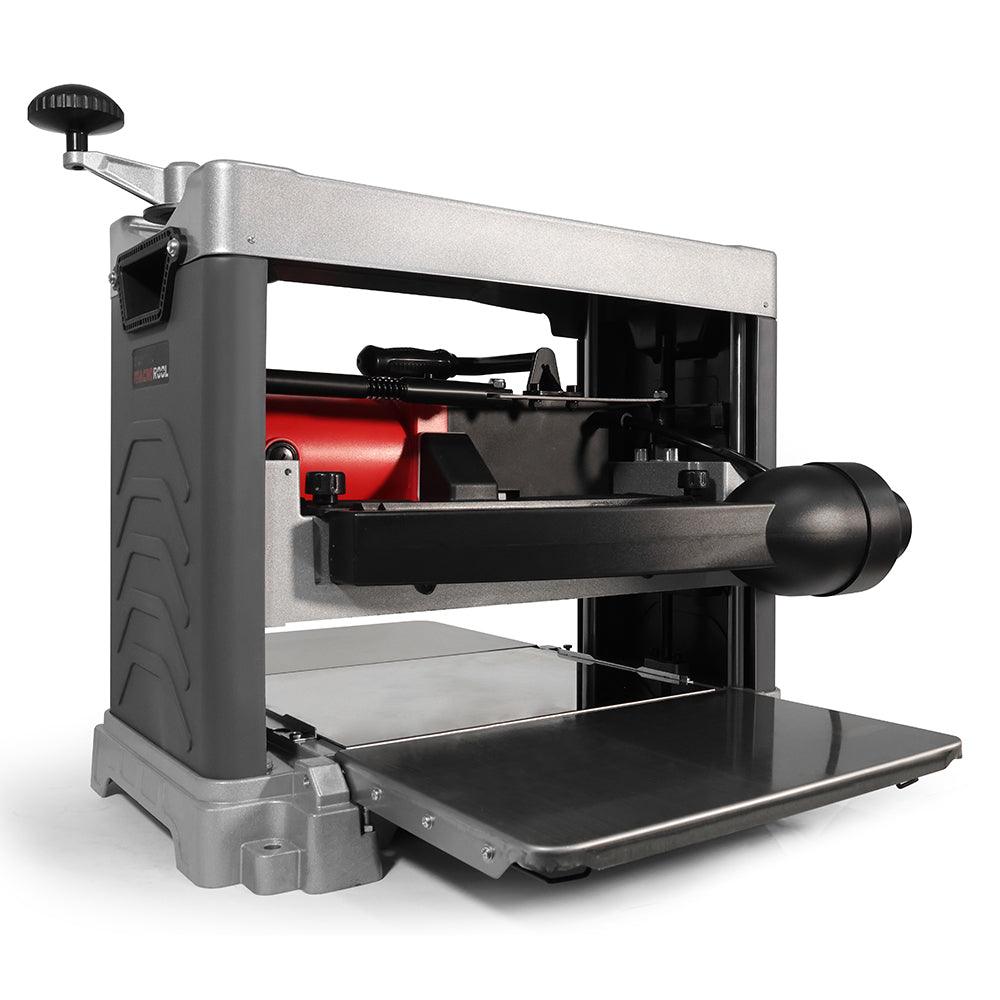

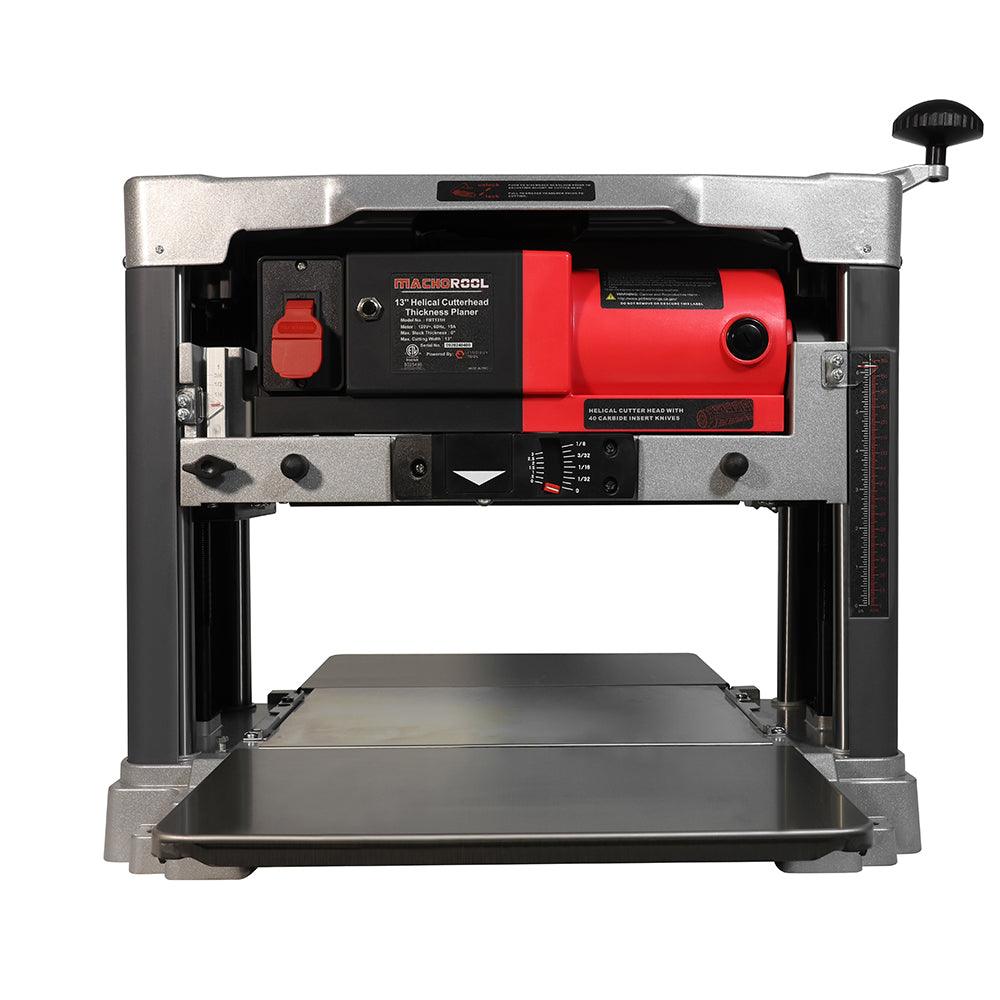

FindBuyTool Machorool® FB131H 13" Benchtop Wood Thickness Planer with Helical Cutter Head
FREE Shipping & Tax-Free at checkout
FindBuyTool Machorool® FB131H 13" Benchtop Wood Thickness Planer with Helical Cutter Head - 🗽US Version is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast and Free Shipping in 3–5 Days
Fast and Free Shipping in 3–5 Days
With local warehouses in California US, Lodon UK, Sydney AU, and Europe, we ship within 1–2 days and deliver to your door within 3–5 days. Enjoy hassle-free shopping today!
30-Day Money-Back Guarantee | 12-Month Warranty
30-Day Money-Back Guarantee | 12-Month Warranty
30-Day Money-Back Guarantee
You can return a Findbuytool product which states that it comes with a 30 day money back guarantee within 30 days for a full refund for any manufacturer defects or product quality issues
12-Month Warranty
We offer a one-year warranty for quality-related issues and lifetime technical guidance from the date of purchase for FindBuyTool FB131H 13" Thickness Planer.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FindBuyTool Machorool® FB131H 13" Benchtop Wood Thickness Plan...
- Description
- Spec
- Influencers
- Reviews
1800W Powerful Motor
15 AMP 1800W motor (US)/ 7.8 AMP 1800W motor (EU/AU/UK); Blade Speed: 10,000 RPM; Feed Rate: 330 inches/minute (27.5 FPM). This powerful motor boasts low interference, low noise, smooth operation, high speed, high temperature resistance, and a long lifespan (over 200,000 hours), ensuring stability and reliability in woodworking. It can handle larger, deeper hardwood cuts, providing the performance you need to complete a wide range of tasks.

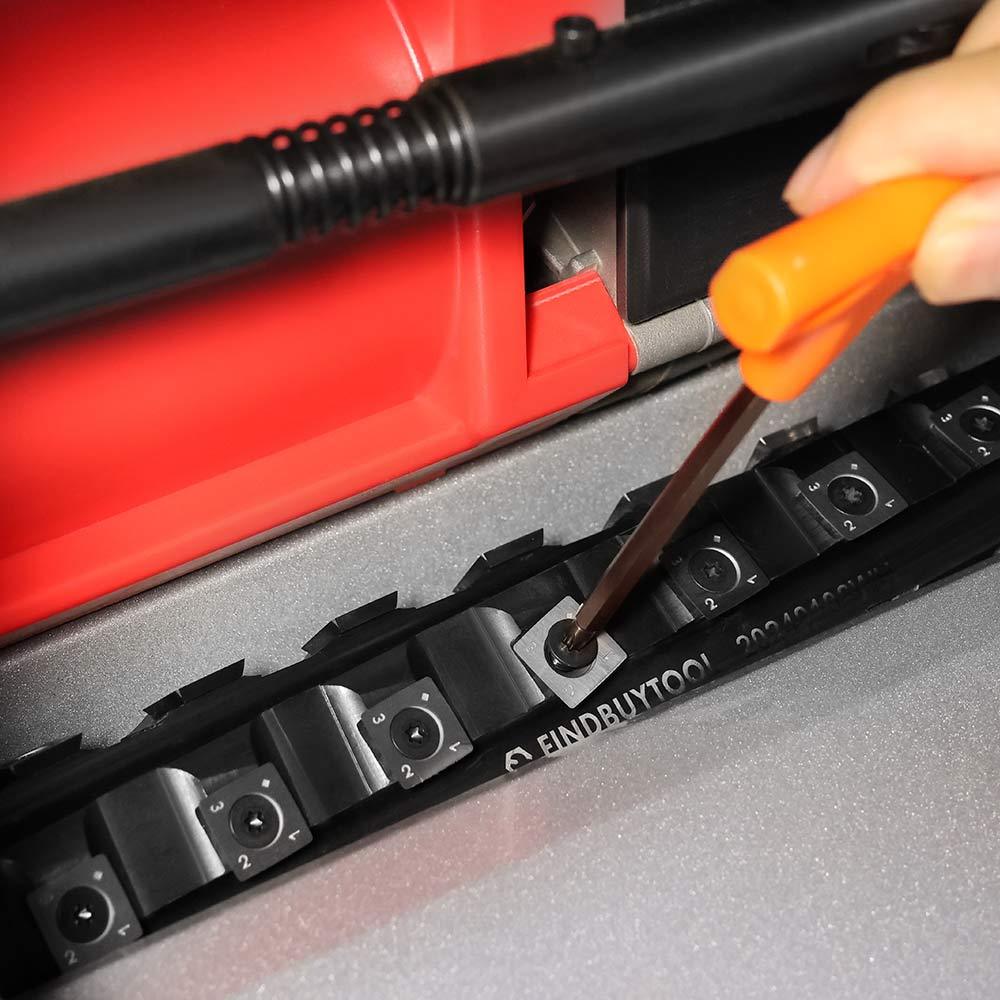

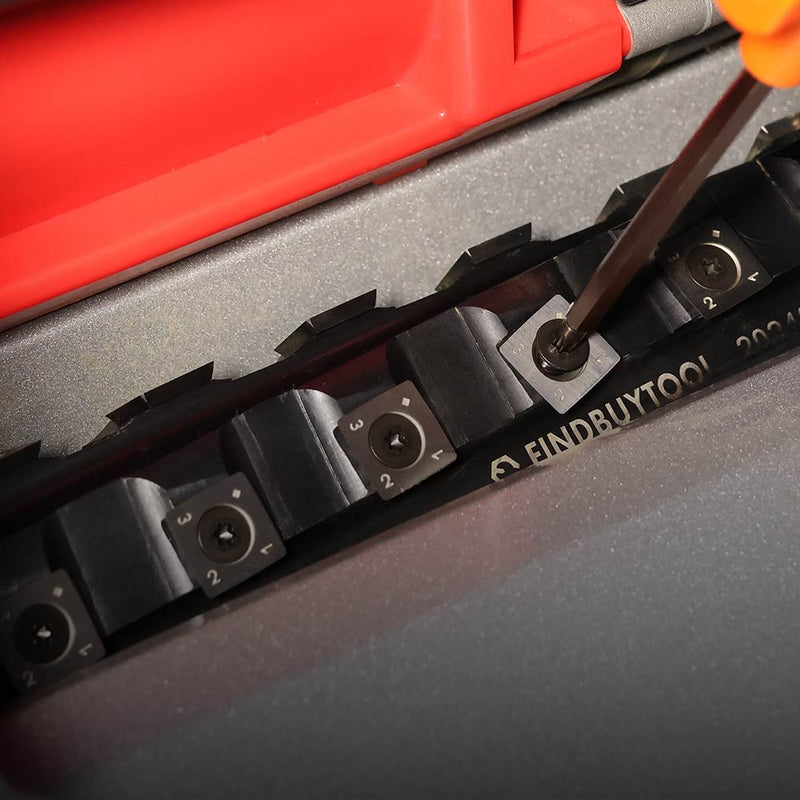

Helical Cutterhead with 40 Inserts
FB131H thickness planer with a helical cutter head provides a smoother finish compared to other planers. Its 4-row, 40 tungsten carbide inserts work in tandem to reduce chatter marks and snipe, producing a smooth, tear-free shear cut with minimal noise. This portable thickness planer delivers a flawless finish on all types of hardwoods, weathered wood, or engineered wood.

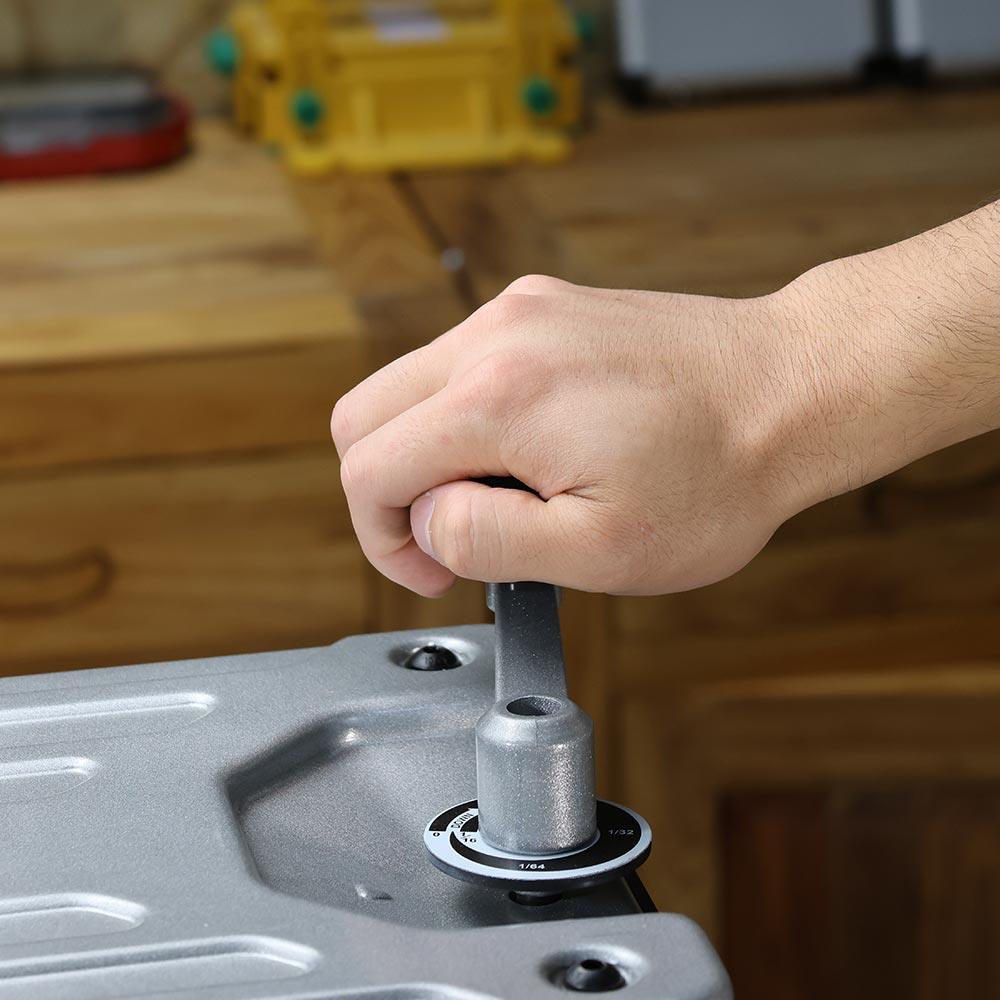

Precision Planing

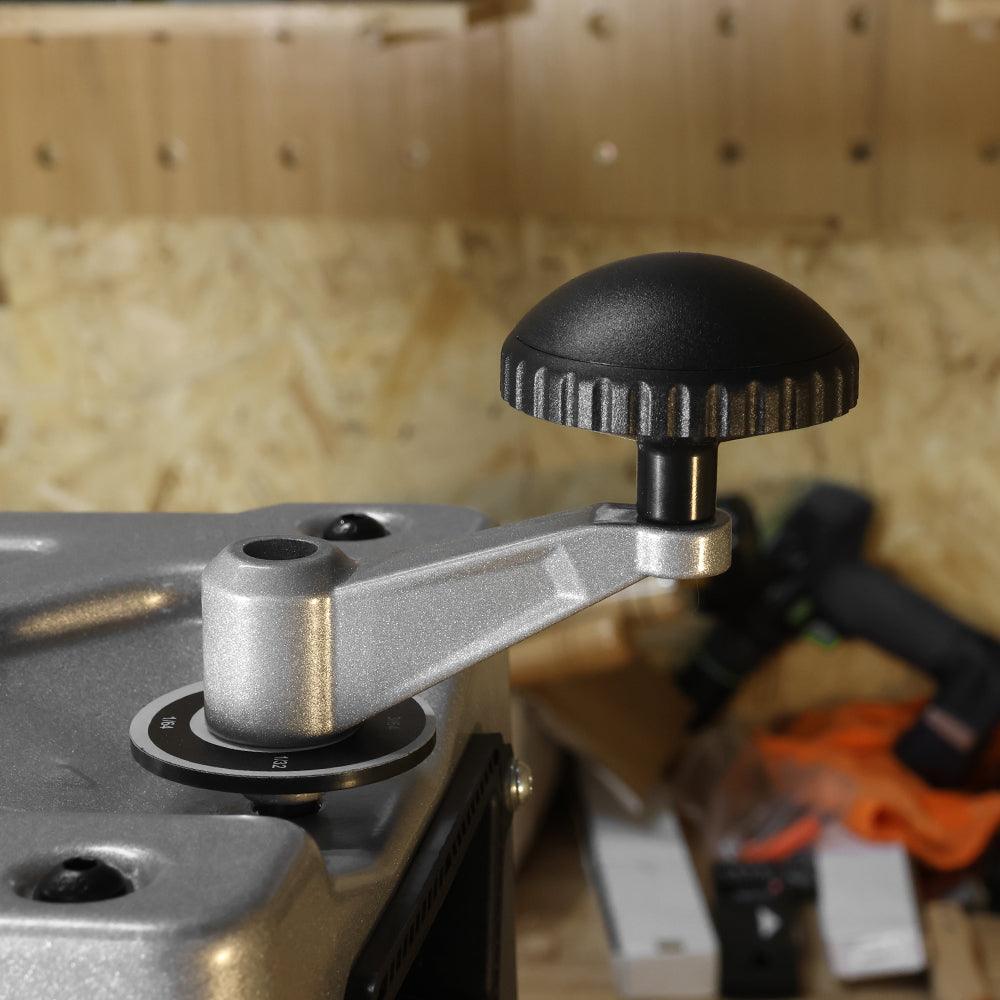

Our Findbuytool FB131H surface thickness planer excels in precision, offering fine adjustments for wood thickness. It comes with a convenient raise/lower handle that allows for fine adjustments of the cut depth. By rotating this handle, you can control accurately displays the height of the cutter blades to a maximum of 6 in.
Features of FB131H
-

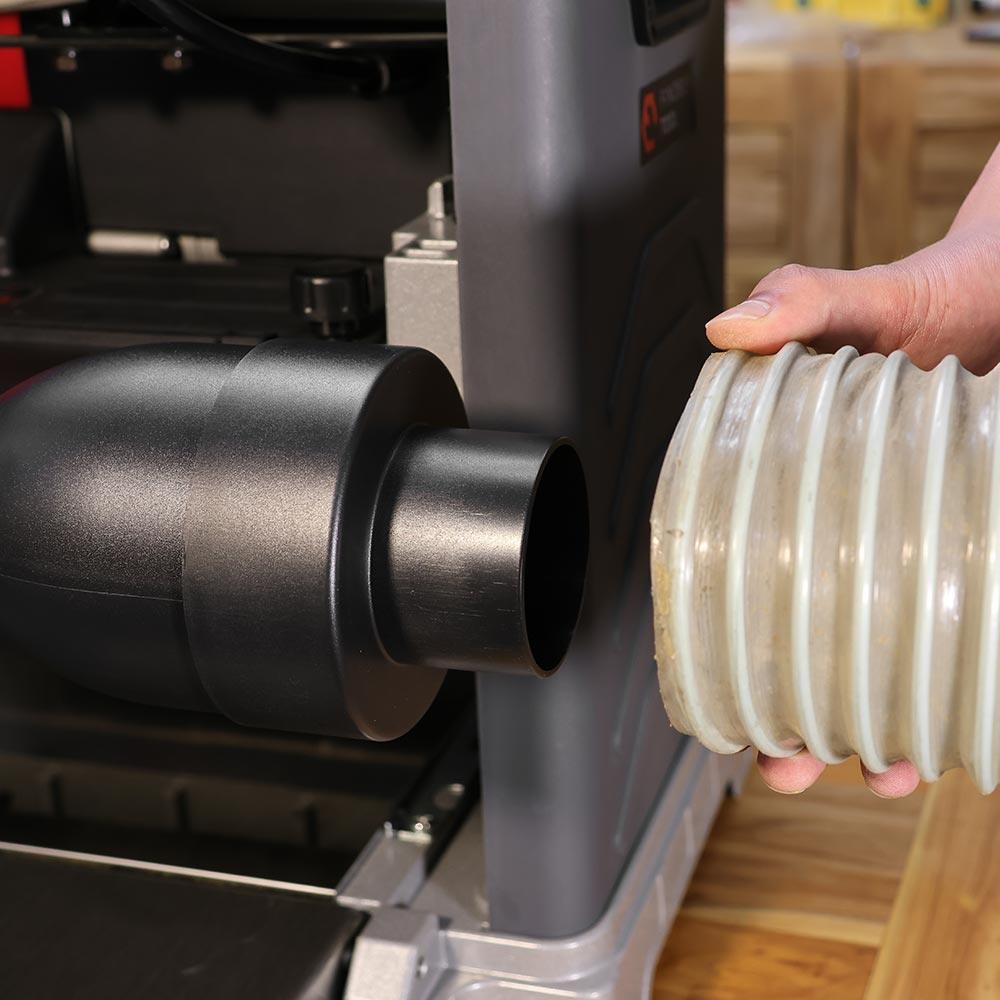

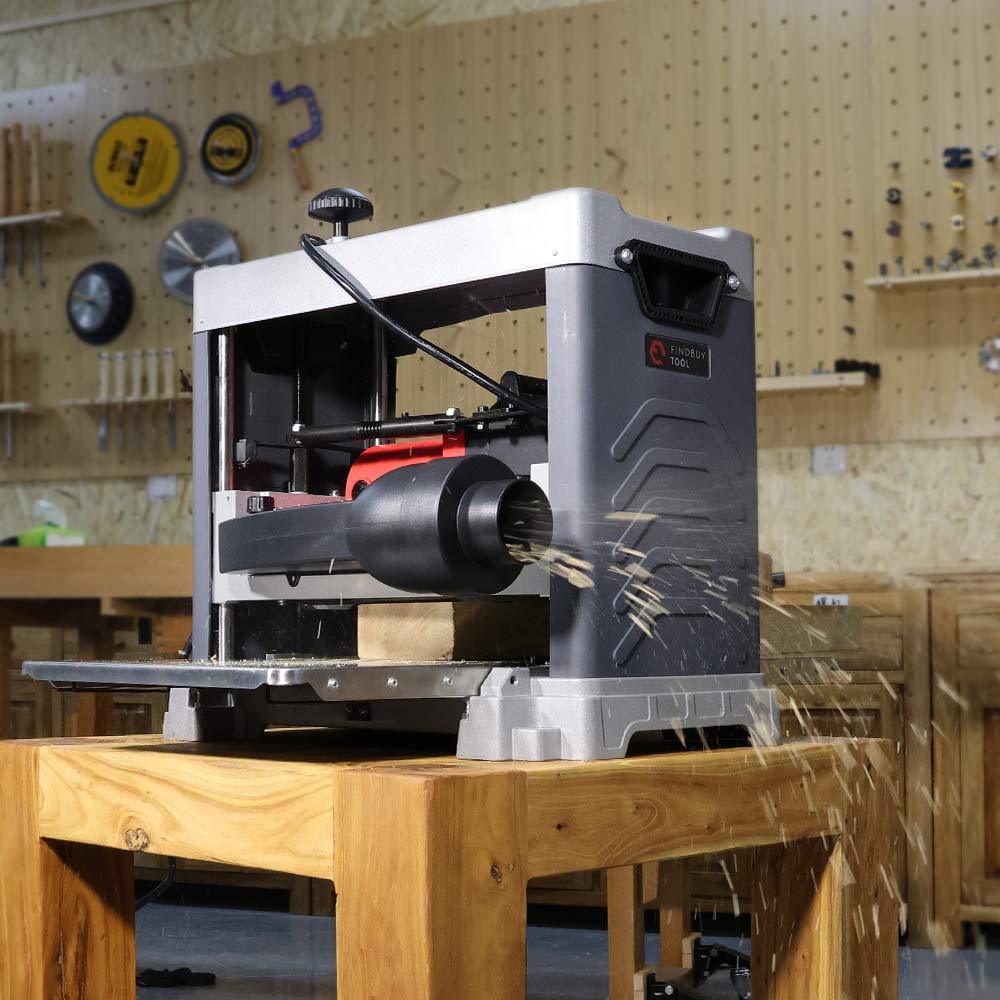

Low Dust Planing
This wood thickness planer is equipped with a vacuum suction port(diameter 2.36 inches), making dust collection straightforward. This chip removal device connects to a vacuum cleaner, efficiently pulling debris away from the cutter head and expelling it out of the machine. This feature helps keep your workroom cleaner.
-
Portability and Space-Saving
This thickness planer is compact and portable. When the infeed and outfeed tables are extended, it can accommodate wood pieces up to 13 inches in width, providing ample support for larger planing tasks. Once the tables are retracted, the thickness planer’s dimensions are just 19.5 in × 14.2 in × 17.5 in, allowing for convenient storage in any corner of your workspace.
-

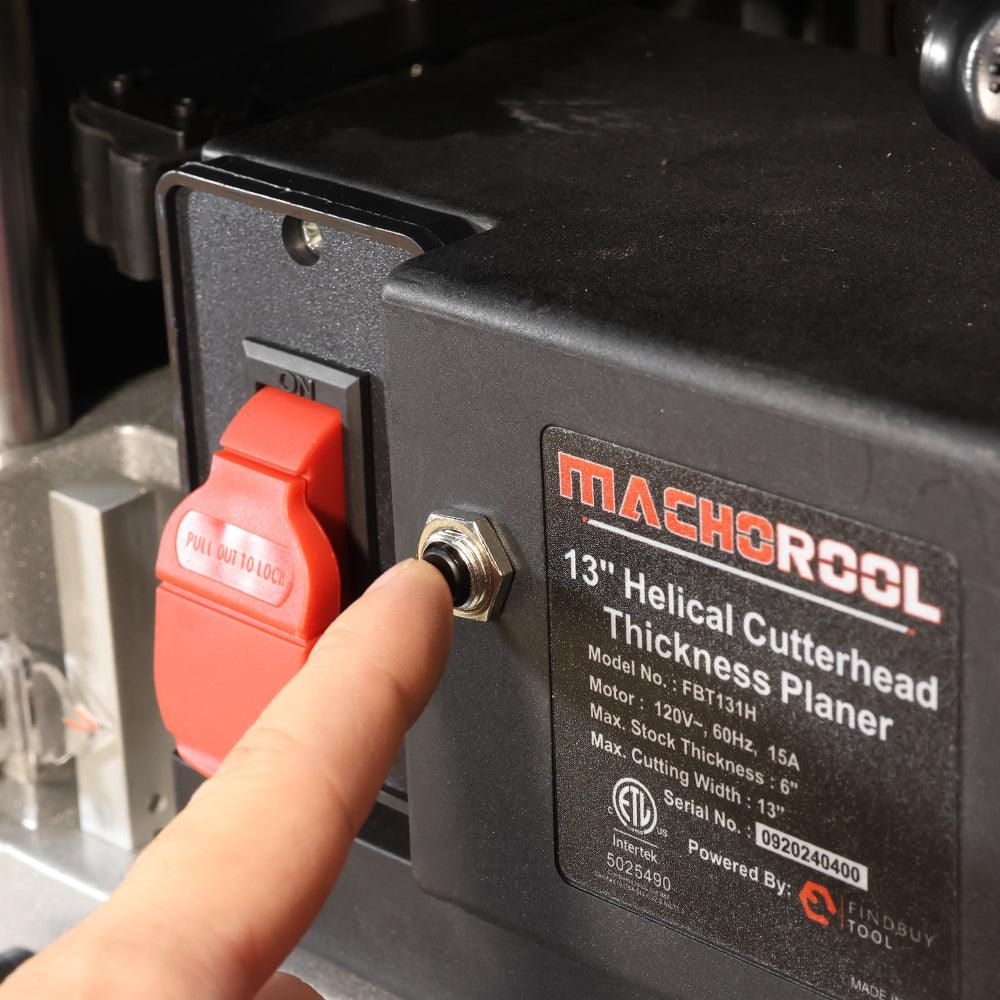

Motor Overload Protector
For additional safety, when the total current exceeds 20A, the 20A overcurrent protector will automatically cut off the power supply to protect your safety.
-
Low Noise Level
This benchtop thickness planer operates as quietly as 83 decibels, by minimizing noise during use. This quieter operation helps reduce fatigue and creates a more pleasant working environment, allowing you to focus on your woodworking tasks without being distracted by excessive noise.
-

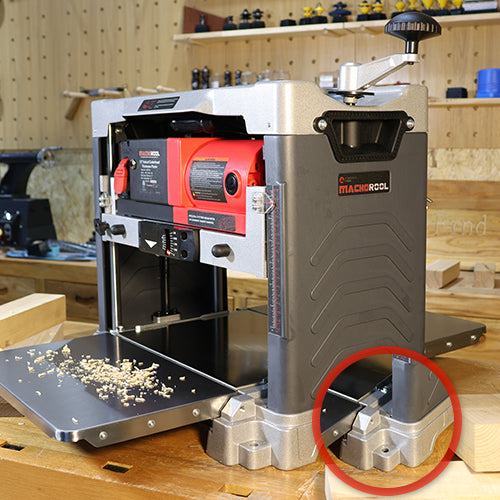

Stability and Build Quality
This portable thickness planer is built with a sturdy base and 4-column frame.Holes on the base of the FB131H allow it to be securely fixed to a workbench, ensuring the machine remains stable during operation. This design minimizes vibration and ensures stability during operation, which can achieve best consistent planing results.
-

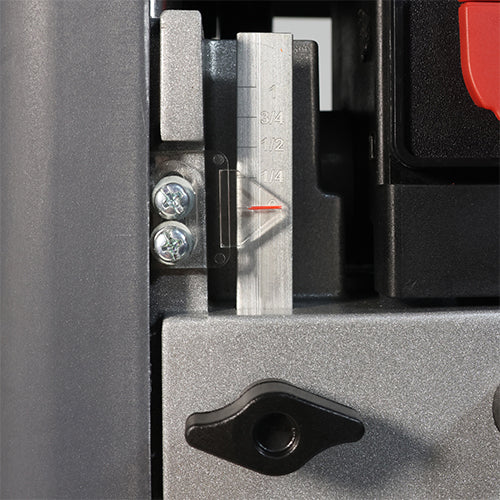

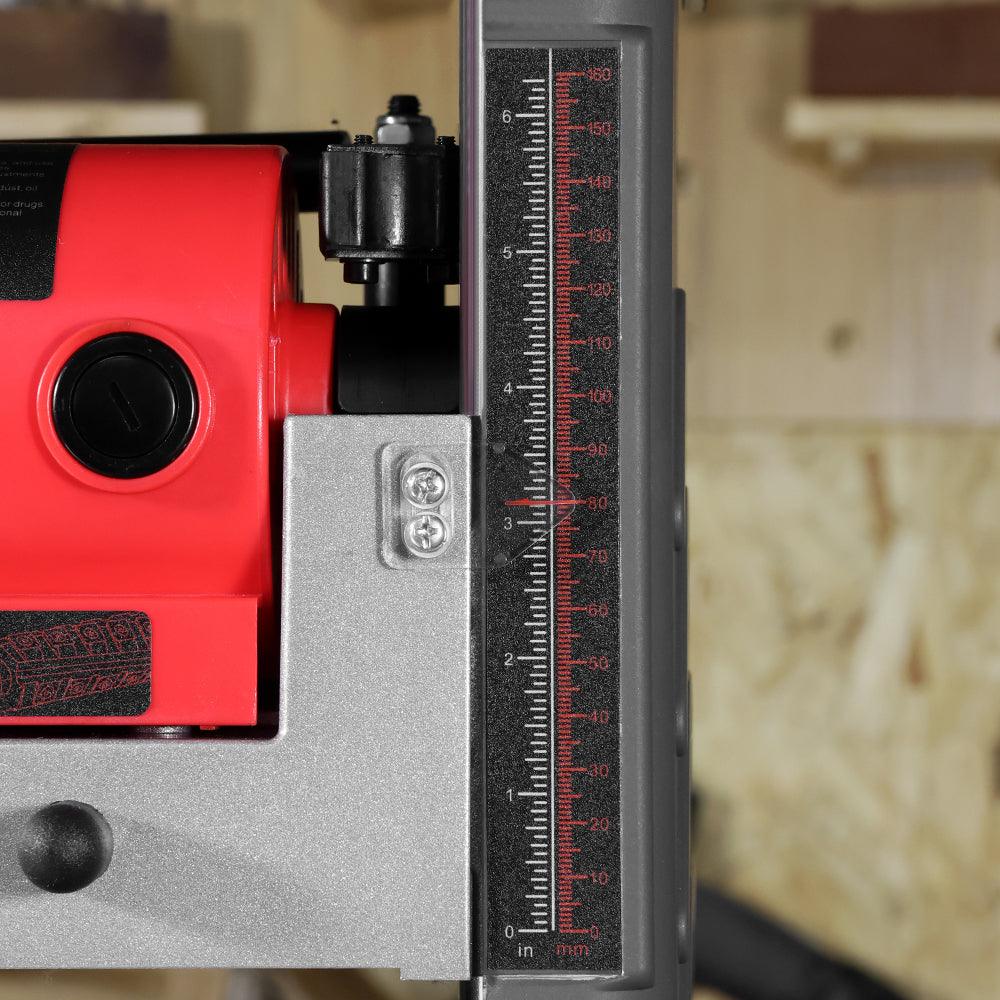

Visible Thickness Scale
Thickness scale of this dimensional thickness planer clearly displays the planing thickness up to 0.1 mm. This allows you to easily monitor and adjust the cutting depth without having to check the internal measurement.
-

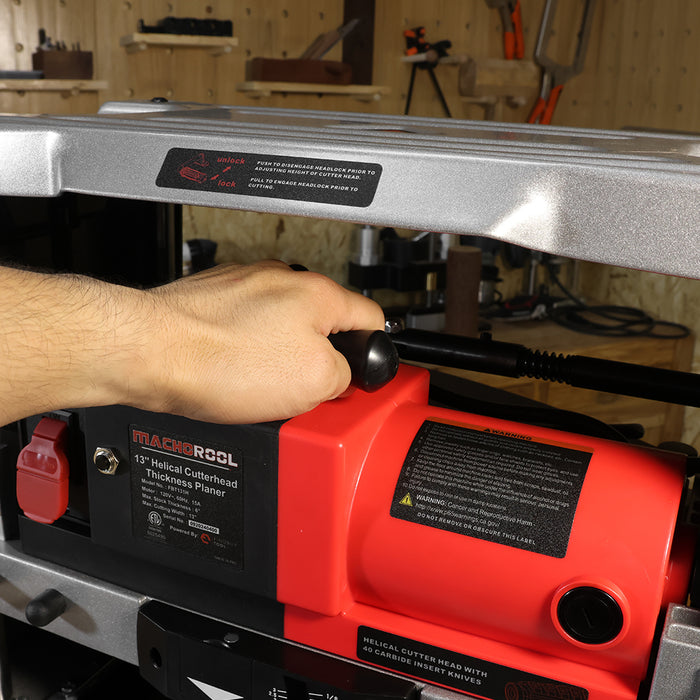

Locking Lever
By dampening the effects of vibration and other disturbances, this locking bar ensures that the workpiece remains fixed and aligned throughout the milling process. Not only does it increase operator safety, it also improves the smoothness of the wood, making it an important component for high-precision planing.
-

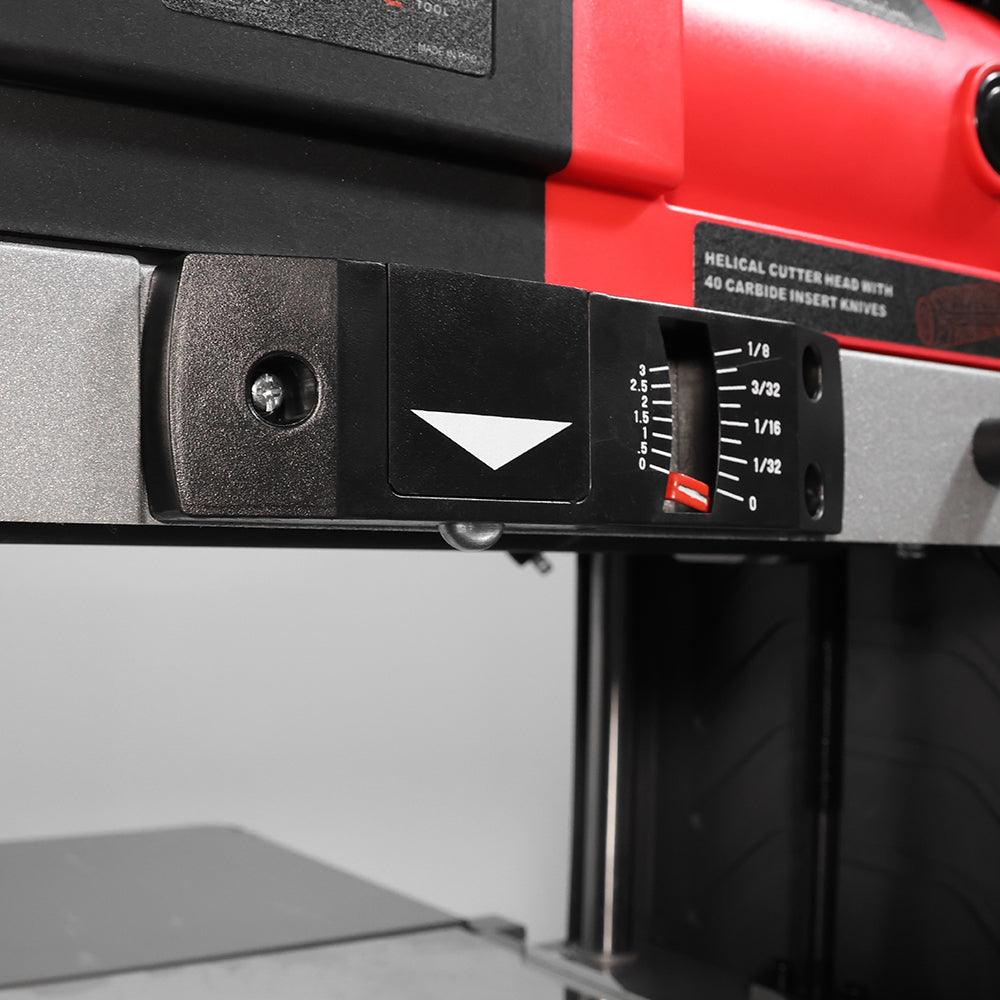

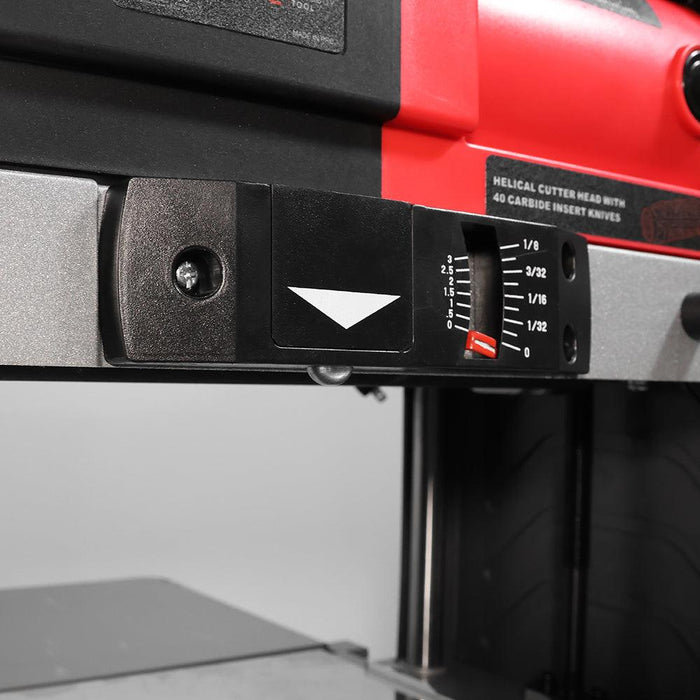

Depth of Indicator
This high-precision part designed to view the cutting depth in real-time. It allows you to make precise adjustments to the cutting depth, helping to maintain a consistent and uniform cutting depth throughout the process, ultimately improving surface quality and reducing errors
-
Quick Limit Block
The quick limit block revolutionizes the milling workflow by allowing you to quickly set up and reach a specified height. Once the desired height is configured, the machine can mill at that height continuously without constant adjustments. This feature is particularly useful for tasks that require repetitive milling at a fixed height, increasing efficiency and productivity for high-volume operations.
Technical Details
Max Planing Width: 13 inch (33 cm)
Max Planing Height: 6-1/4 inch (15.9cm)
Max Planing Depth: 1/8 inch (0.32cm)
Power: 120V 60Hz 15Amp(US) / 230V 50Hz 7.8Amp(AU/UK/EU)
No Load Speed: 10000RPM
Feed Rate: 27.5 FPM
Size: 27.4 in x 20.7 in x 18.9 in(69.6cm x 52.5cm x 48cm)
Weight: 77lbs (35kg)
FB131H FAQs
Why are there different versions (US, AU, European, UK) of the planer?
Why are there different versions (US, AU, European, UK) of the planer?
This machine or motor and is customized for each region to match its local electrical standards, voltage, frequency, and plug types. Each version meets the safety certifications required by the region, This ensures safe and efficient operation.
When will my order arrive in Europe?
When will my order arrive in Europe?
We have warehouses in Europe, and we offer delivery to several countries including Germany, France, the Netherlands, Belgium, Czech Republic, Italy, Poland, Denmark, Austria, Luxembourg, Spain, Portugal, Ireland, Greece, Finland, Romania, Slovenia, Sweden, Hungary, and Latvia. Shipping is free to these countries, and the estimated delivery time is approximately 3-5 business days after your order has been successfully processed.
How long will it take to receive my order?
How long will it take to receive my order?
Orders usually take 3-5 business days to arrive from our local warehouse in the USA. For information on shipping to other countries, please contact us.
What's the size of the FB131H?
What's the size of the FB131H?
Overall Size(L × W × H): 27.4inch × 20.7inch × 18.9 inch
Folded Size(L x W x H): 19.5inch × 14.2inch × 17.6 inch
Dust Port Diameter:2.36 inches (6cm)
Weight: 76 lb (34.5 kg)
Can I replace the knives?
Can I replace the knives?
Yes, you can buy the knives from here: 15x15x2.5mm R150 carbide insert
How much does it weigh?
How much does it weigh?
The item weighs 77 lbs
Where is the user manual?
Where is the user manual?
Yes, Click here to view the FB131H user manual
Can the preset thickness be set at 3/8 inch?
Can the preset thickness be set at 3/8 inch?
Yes, the minimum planing thickness of the planers is 1/16"
What's your warranty policy?
What's your warranty policy?
Findbuytool offers a one-year warranty on all thickness planer, for more specific warranties, please check our warranty policy.
What's your return policy?
What's your return policy?
All customers have a 30 DAY MONEY BACK GUARANTEE
For more specific return and refund, pls check our return policy.
