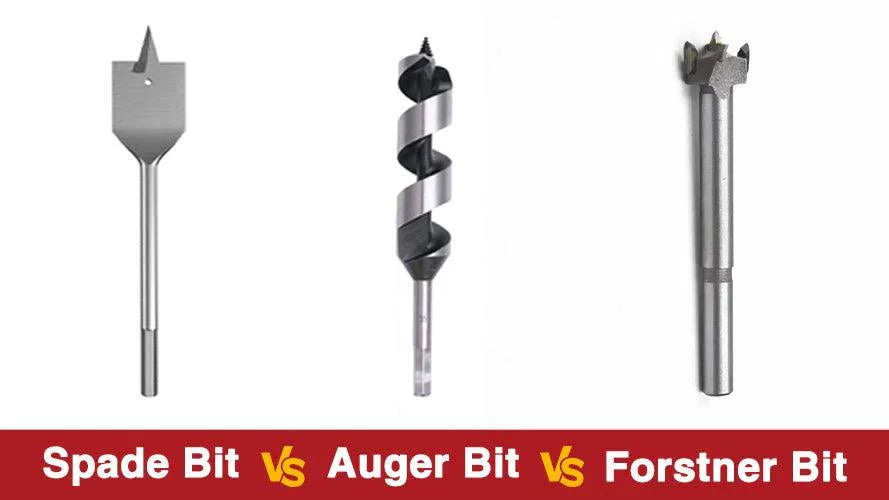

The type of the bit decides speed, smoothness, and accuracy. So it's important to choose a compatible drill bit. Here, we want to introduce you to three common bits: spade bits, auger bits, and Forstner bits.
Before purchasing, you need to know what they are, what they are used for, and what the differences are between them. In this guide, we will give a comprehensive explanation of these three aspects.
What is a Spade Bit?
A spade bit, also known as a paddle bit or flat bit, is commonly used for drilling large holes with flat bottoms, whose diameter can be up to 1-1/2 inches. Different from formal drill bits, spade bits use a paddle-shaped blade with a tip in the center.
This design allows them to quickly remove wood, but results in a rougher surface. But it still can be acceptable in many applications, such as installing pipes, routing electrical boxes, drilling openings for ventilation, plumbing, etc.
However, spade bits are more suitable for softwood than hardwoods or precise drilling tasks, for they will wobble and result in an imprecise hole. If you need to tackle hardwoods, twist drill bits are more compatible, they are more durable, and can be quickly sharpened.
Pay special attention to the heat while using it, which may lead to the burning of the wood. So it's important for every woodworker to control the drill speed and apply the right force to ensure safety.
Advantages
- They can drill large holes quickly.
- They are much cheaper than other types of drill bits and can be resharpened easily.
Disadvantages
- Like we mentioned before, the holes made by spade bits will be rougher than those made by auger bits or Forstner bits.
- When working in dense hardwood or on precise drilling tasks, spade bits will wobble and lead to imprecise holes.
- Spade bits are not suited for metal or masonry.
- Spade bits are less precise than other bits, especially when working on smaller holes or drilling near the edge of the workpiece.
What is an Auger Bit?
An auger bit is designed to create deep, precise, and clean holes with less force. The scoring spurs, ahead of the bit, cut the wood fibers to result in a smooth surface. The screw tip can help users position the starting point and control the whole drilling process.
Auger bits have two different designs: solid and hollow center. The former has a solid center for greater strength and rigidity. In high torque or pressure tasks, it can reduce the risk of drill bit bending or breaking and ensure more precise drilling.
The latter has a hollow center for enhanced chip removal and deep drilling. It can be used for long periods of continuous drilling, such as deep hole drilling. With large helical flutes, it can remove wood chips efficiently to prevent clogging and improve efficiency.
Auger bits are suited for low-speed, high-torque tools, like power drills or hand braces. Although the drilling speed of these bits is slower than that of other drill bits, they are still ideal tools for drilling precise and smooth holes in most finishing tasks.
In conclusion, auger bits are primarily used for drilling accurate, deep, high-quality holes in wood for a variety of applications, such as: installing plumbing pipes and electrical conduits; creating openings for door knobs, hinges, and other hardware; drilling holes for dowels, plugs, and other woodworking joinery; enlarging existing holes to accommodate larger fasteners or components.
Advantages
- The clean and precise holes made by auger bits are suitable for joinery and precision woodworking tasks.
- Effective chip removal can prevent clogging.
- They can drill deep holes with minimal force.
Disadvantages
- Auger bits are generally more expensive than spade bits but cheaper than Forstner bits.
- The drilling speed of auger bits is slower than other drill bits.
- For auger bits, precision is priority. So it's not suitable for rough or high-speed drilling tasks, whose priority is speed.
What is a Forstner Bit?
The Forstner bit was named after its inventor, Benjamin Forster. This bit is used for drilling precise and clean holes with flat bottoms. And it won't splinter the wood, resulting in smooth hole walls.
Forstner bits have a small spur in the center for positioning and have peripheral rim teeth for a smooth perimeter and hole walls. These bits need to be installed on a drill press rather than a hand-held drill. The former can provide the necessary stability and control, while the latter cannot.
Fostner bits are ideal for creating holes for doorknobs, hinges, or hardware installations. In addition, with a wide range of diameters, typically from 1/4 inch to 2 inches or more, they are also suitable for creating large and precise holes.
Advantages
- Forstner bits can produce clean and precise holes with flat bottoms.
- With sharp and angled cutting edges, Forstner bits can reduce splintering and tear-out effectively, even in delicate or cross-grained wood.
- Forstner bits can drill overlapping holes and holes with angles.
Disadvantages
- Forstner bits are more expensive than other drill bits.
- Due to the complex cutting action, the drilling speed of Forstner bits is slower than other bits, such as spade bits and auger bits.
- Forstner bits are not suitable for drilling deep holes. Their large diameter makes them difficult to control and maintain stability at greater depths.
Differences: Spade bit vs Auger bit vs Forstner
Understanding the differences between spade bits, auger bits, and Forstner bits will help you select the most appropriate tool for the job.
Speed and efficiency
- Spade bits: The fastest among the three, ideal for rough work where speed is more important than finish.
- Auger bits: Slower than spade bits but more efficient at chip removal, suitable for deeper holes.
- Forstner bits: The slowest but provide the cleanest cuts, prioritizing precision over speed.
Hole quality
- Spade bits: Produce rough holes with potential splintering and tear-out; suitable for tasks where hole quality is not critical.
- Auger bits: Create clean, smooth holes with good edge quality, making them suitable for detailed woodworking.
- Forstner bits: Produce the cleanest, most precise holes with flat bottoms, ideal for fine woodworking and cabinetry.
Size
- Spade bits: Typically available in sizes from 1/4 inch to 1-1/2 inches.
- Auger bits: Available in a range of sizes, commonly from 1/4 inch to 1 inch or larger, with longer shafts for deeper holes.
- Forstner bits: Commonly available in sizes from 1/4 inch to 2 inches or more, depending on the application.
Materials
- Spade bits: Primarily designed for soft materials such as wood and plastic.
- Auger bits: Mainly used for wood and plastic, not suitable for metal.
- Forstner bits: Best used for clean and finished large-diameter holes.
Cost
- Spade bits: Generally, the least expensive, making it a cost-effective choice for many applications.
- Auger bits: More expensive than spade bits but less than Forstner bits, offering a balance of cost and performance.
- Forstner bits: The most expensive, reflecting their precision and clean-cutting ability.
Tool requirements
- Spade bits: Can be used with hand-held drills; they do not require much power.
- Auger bits: Works best with low-speed, high-torque tools, including both power drills and hand braces.
- Forstner bits: Requires a drill press for optimal control and force, although it can be used with powerful hand-held drills with care.
Priorities
- Spade bits: Speed and cost-effectiveness for rough work.
- Auger bits: Balance of depth and precision for detailed woodworking, offering deep and efficient hole drilling with reasonably clean results.
- Forstner bits: Ultimate precision, high-quality finish, and clean cuts for fine woodworking and cabinetry.
How to Choose: Spade Bit vs Auger Bit vs Forstner
When choosing between spade bits, auger bits, and Forstner bits, consider the specific requirements of your project. For quick, rough work, spade bits remain a practical, cost-effective option for quickly creating large holes where the finish quality is not a primary concern. They are suitable for tasks like running wires or pipes through wood, but are not the best choice for precise or clean work.
Auger Bits offer a good balance between speed and precision, making them suitable for detailed woodworking and carpentry. They excel at drilling deep, clean holes with minimal effort, but require more power and are slower than spade bits.
Forstner Bits are the go-to choice for fine woodworking and cabinetry, where clean, precise holes with flat bottoms are crucial. They provide the best finish quality but are slower and more expensive, often necessitating the use of a drill press for optimal results.
Findbuytool has a great selection of auger bits to choose from, and they are some of the most durable options out there. We offer wood auger bits for drilling quick and clean holes with minimum effort. Our wood auger bit is an ideal choice for making quick and clean holes in all types of wood.
This auger drill bit features hard-wearing steel construction, 3 precision-ground flutes, and a sharp centering point for fast and efficient drilling. We also provide long auger bits, which are perfect for drilling and boring tasks, and allow for fast and precise hole creation with minimal effort. They are crafted from sturdy steel and designed with three precision-ground flutes and a sharp centering point.
FAQ about Spade Bit vs Auger Bit vs Forstner Bit
#1 What is the difference between a spade bit and a Forstner bit?
The speed of spade bits is faster but results in a rougher surface, while the speed of Fostner bits is slower but results in a clean and precise surface. Spade bits are more suitable for a quick process, and Forstner bits are suitable for the finishing process.
#2 What is the difference between a Forstner bit and a drill bit?
With sharp and angled cutting edges, Forstner bits can reduce splintering and tear-out effectively, even in delicate or cross-grained wood. And Forstner bits are used on the drill press to achieve a better effect.
