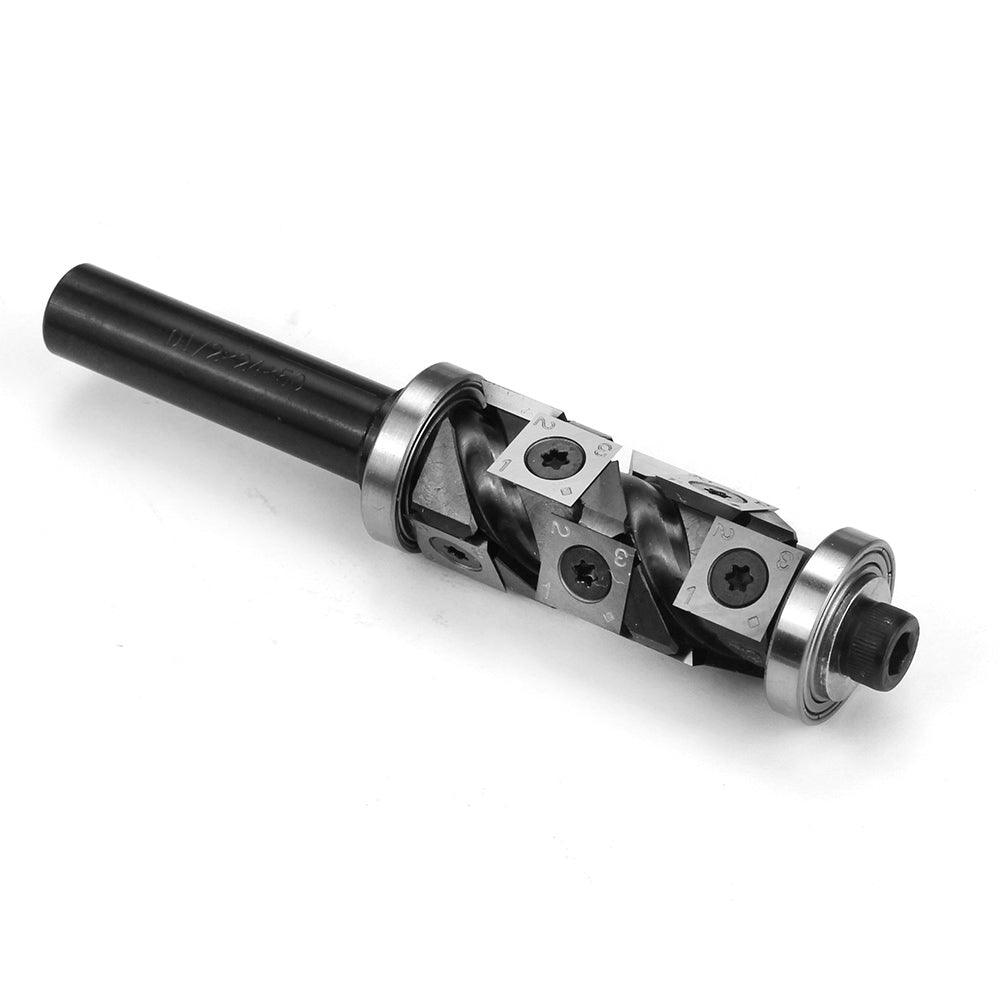

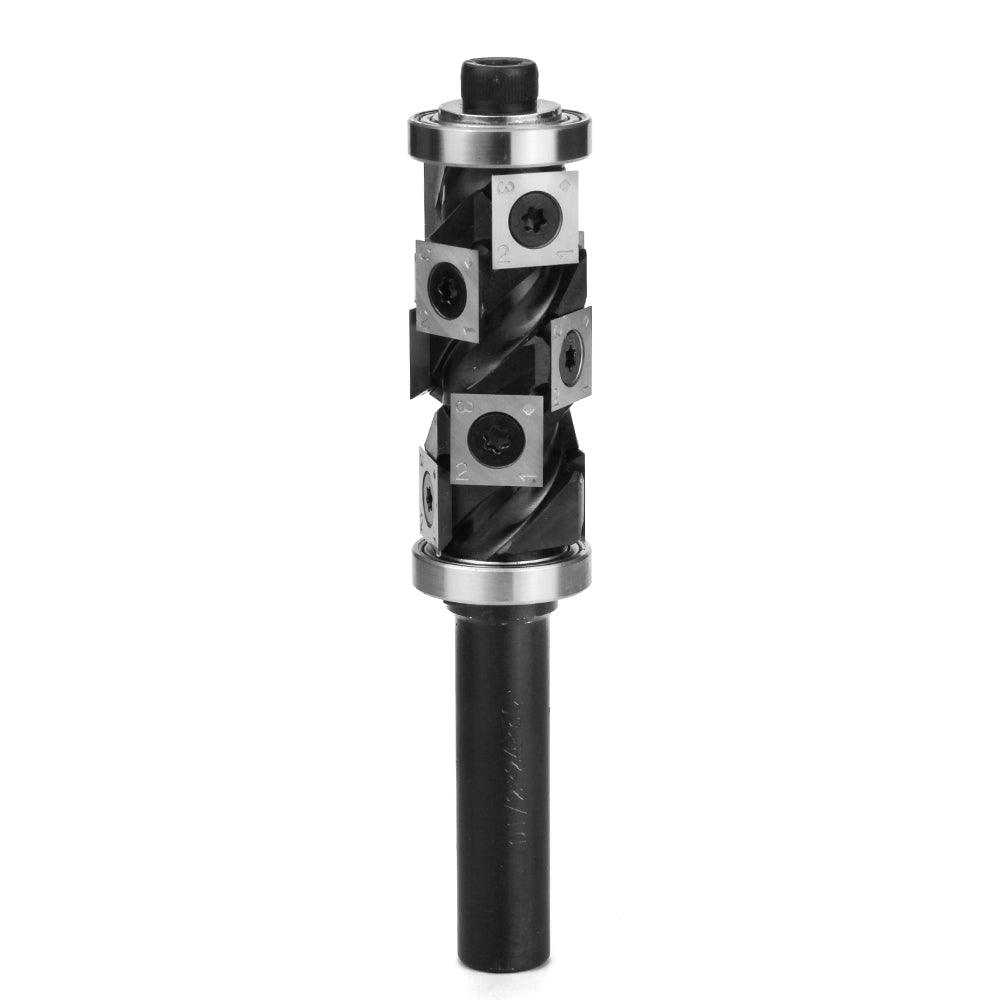

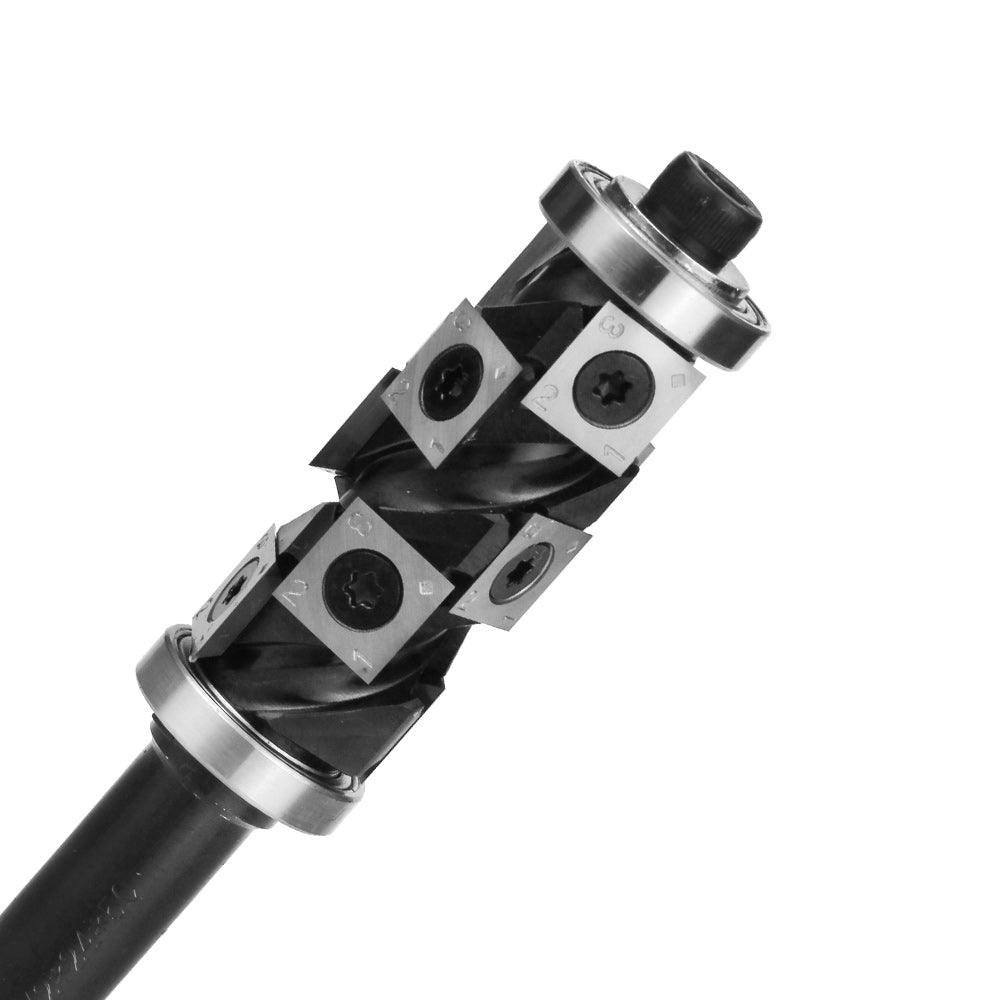

Spiral Flush Trim Router Bit with Carbide Insert, Double Bearing
Spiral Flush Trim Router Bit with Carbide Insert, Double Bearing - Router bit Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Delivery
Spiral Flush Trim Router Bit with Carbide Insert, Double Bearing
- Purchase
- Description
- Spec
- Reviews
Features
Features
Findbuytool offers a spiral flush router bit with carbide inserts, it can ensure optimal working efficiency for edge trimming, duplicate, and template work, with a high RPM for superior smooth results. We offer various types of spiral flush trim router bits with carbide inserts and various cutting heights to best satisfy your project requirements.
- Size: 12.7mm(shank) x 24mm(dia) x 50mm(cutting length). / 1/2in(shank)x19/20in(dia)x24/25in(cutting length).
- Industrial grade, ensure precision edge trimming.
- Made of superior carbide material, sturdy and durable.
- Upgraded, with black oxide coating, anti-rust and corrosion-resistant.
- Excellent trimming efficiency thanks to the 10 carbide inserts.
- Carbide insert specifications: 12x12x2.2mm.
- The balanced knife body ensures a stable cutting process.
- The recommended torque spec for the insert knife is 3Nm.
- The bearing is replaceable, you can buy the bearing from here.
- Maximum RPM: 10000.
- Cutting type: Upcut.
If the 12 inserts type flush trim router bit is too powerful or dangerous for you, this bit might be a good choice:
- With a compact size, less power is required.
- With higher RPM.
- Excellent trimming effect.
- Outstanding chip evacuation.
Note:
- We suggest using the bit better on a router table or CNC machines to achieve better cutting efficiency, and also for better safety.
- When cutting harder or denser wood, please decrease the cutting output and feed slowly.
- The cutting height of the workpiece is better under the cutting height of the router bit.
- If you cutting the plywood, please clean the blade after working to prolong the carbide insert service life.
- For your safety, please wear proper protective gear when working.
Technical information
Technical information

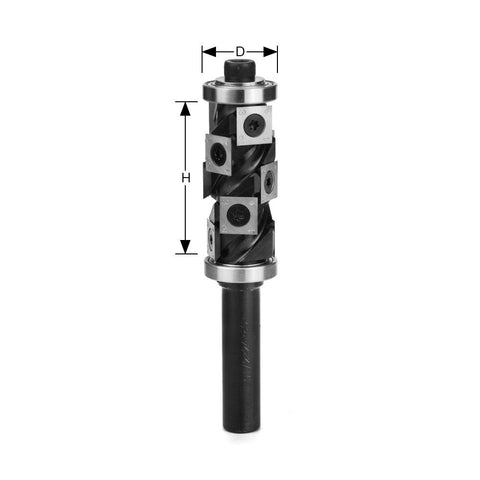

| Shank Size(mm) | D (mm) | H (mm) | Material |
|---|---|---|---|
| 12.7 |
24 |
50 |
Tungsten Carbide |
Package Includes
Package Includes
- 1 x Spiral flush trim router bit
Machine
Machine
- CNC Router
- Fixed Base Router
- Plunge Router
- Bench Top Router Table
SHIPPING DIAMETER
SHIPPING DIAMETER
- UNIT
- Pcs
- Net Weight
- 300g
- Package
- In Plastic Box
- Package Size
- 40 x 40x 130mm
FAQS
How do I return a product?
How do I return a product?
Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unworn/unused, have any tags still attached, and include all the original packaging.
How long will it take to receive my refund?
How long will it take to receive my refund?
Refunds are processed within 7 days from when we receive the item(s).
Customer Reviews
Csak ajánlani tudom a céget. Amit vettem az zseniális. Nem Európai szabvány, de könnyedén megoldottam. Sokan irigykednek amiért ilyen jó marószerszámom van :)
Kézi felsőmaróban használom, szigorúan maximum 3-as fordulatszámon. Festool of 1400
Thank you for your review! I am more than happy that you enjoy the bit! Hope we have opportunities to serve you in the future!
