Helical Cutterhead for Grizzly 6" Jointer G1182/G0654/G0452/G0526/G0604/G0813
Helical Cutterhead for Grizzly 6" Jointer G1182/G0654/G0452/G0526/G0604/G0813 - 6-inch cutterhead is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Delivery
Helical Cutterhead for Grizzly 6" Jointer G1182/G0654/G0452/G0...
- Description
- Reviews

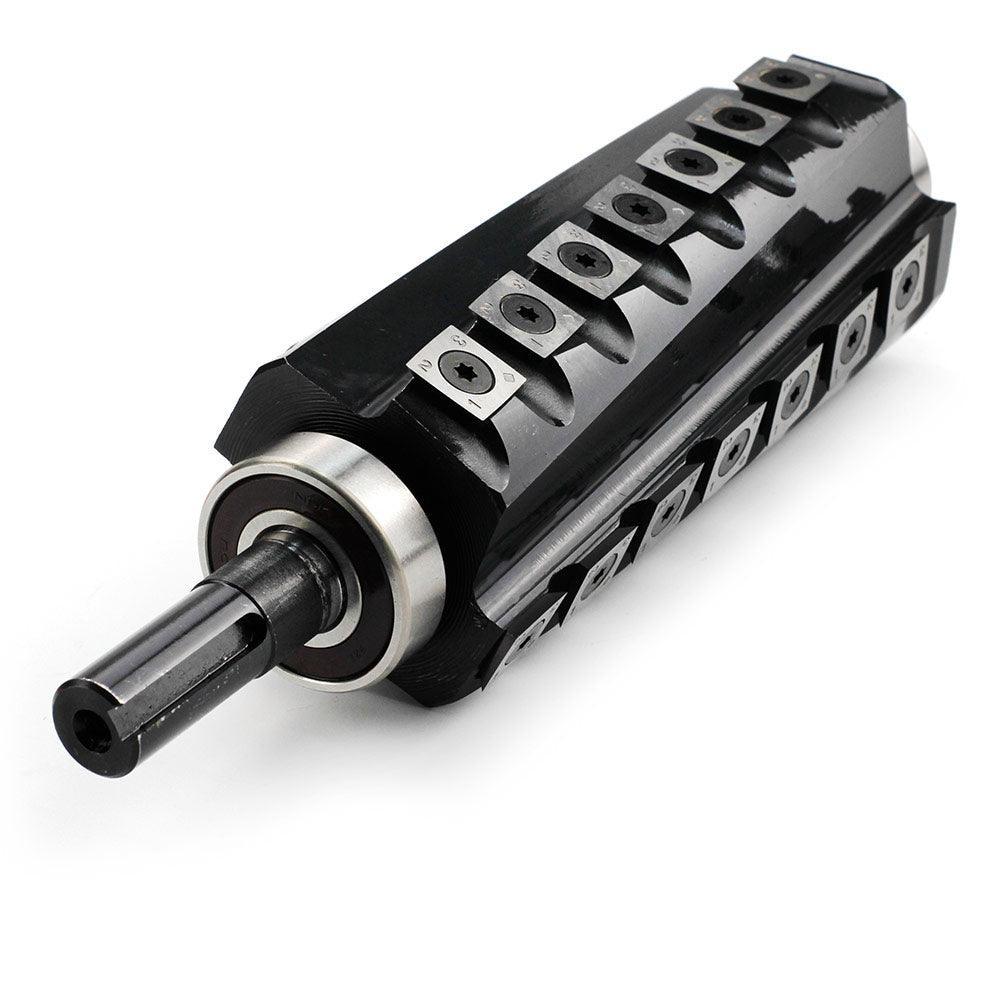

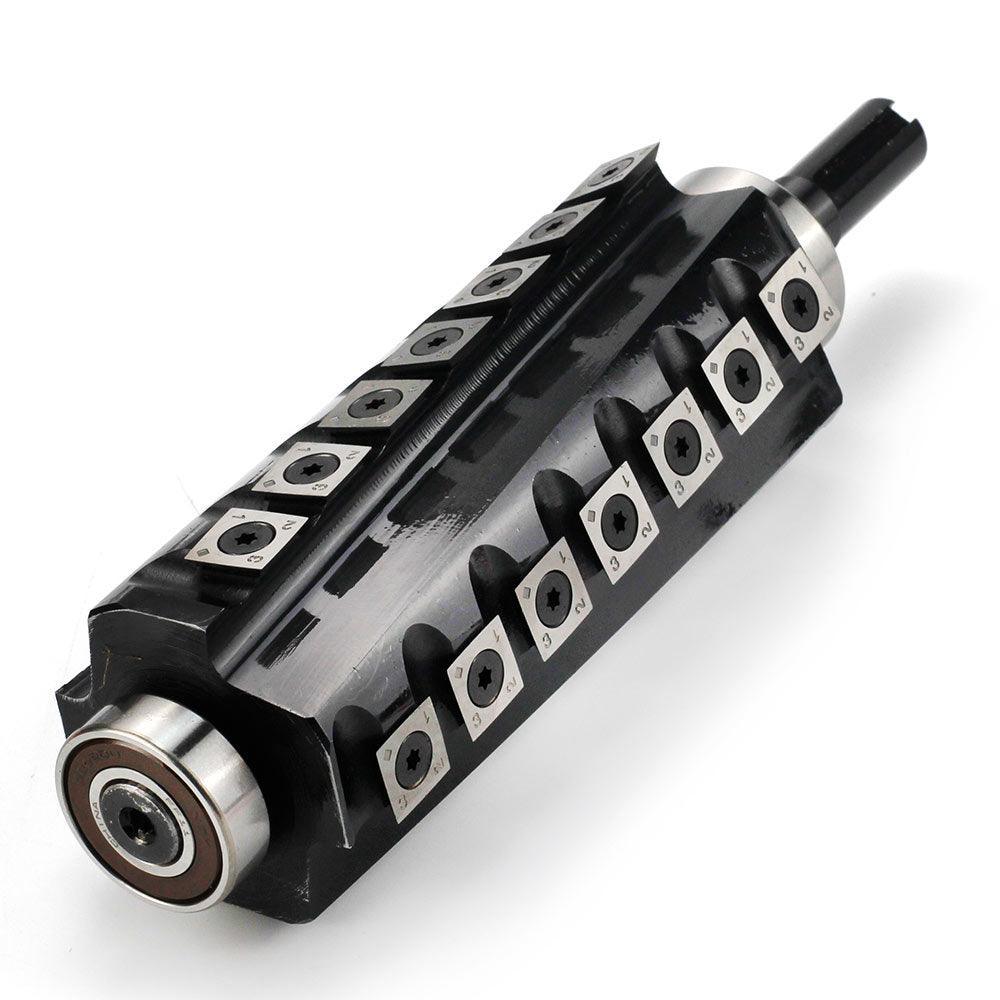

The helical cutter head is used for upgrading Grizzly 6-inch jointers.
Including
- Grizzly G1182 6"x47" Jointer (mfg. since 2003)
- Grizzly G0654 6"x46" Jointer
- Grizzly G0452 6"x46" Jointer
- Grizzly G0526 6" Jointer
- Grizzly G0604 6"x56" Parallelogram Bed Jointer
- Grizzly G0813 6"x48" Jointer
- Grizzly G0814 6"x48" Jointer
This helical cutter head will take your jointer to the next level. Installation is straightforward and your jointer will cut much smoother and the noise will be reduced by more than 50%. The helical head is designed to perfectly replace the G6/63 cutter head, so it also fits other 6" jointers, including
- JET JJ-6/JJ-60S/JJ-6CS/JJ-6CSDX/JJ-6HHDX/JJ-6CSX
- Powermatic 54A, Delta RC JT-360
- RIDGID JP0610/JP06101/JP6101/JP06000
- Shop Fox W1745/W1679, Sunhill CT-60L/SM-150, Northstate CT-150D
- Bridgewood BW-6R, GEE-TECH CT-15, Accura 02206
- General 1180/80-100/80-100LM1/80-150/80-150L/80-075
- Steel City 40615/40625/40640
- Carba-Tec CTJ-150/CTJ-196, Axminster CT1502, Reliant DD-38
- KingCanada KC150C, MagnumMI-81200, Busy Bee Tool B706, Craftex B706N
The true helical design of this helical head allows a true shear action, so compared with the original blades, our helical cutter head offers you:
- The 30 tungsten carbide blades allow for a superior finish, reducing the need for sanding after planing.
- 40 times longer lifetime thanks to our premium tungsten carbide blades.
- The shear cut virtually eliminates tear-outs and kick-backs.
- Producing much smaller chips and your dust collection system will function more efficiently.
- Changing blades is effortless and does not require adjustment.
- No need to re-sharpen the blades any longer.
- Significantly reduce the noise level by at least 50%.

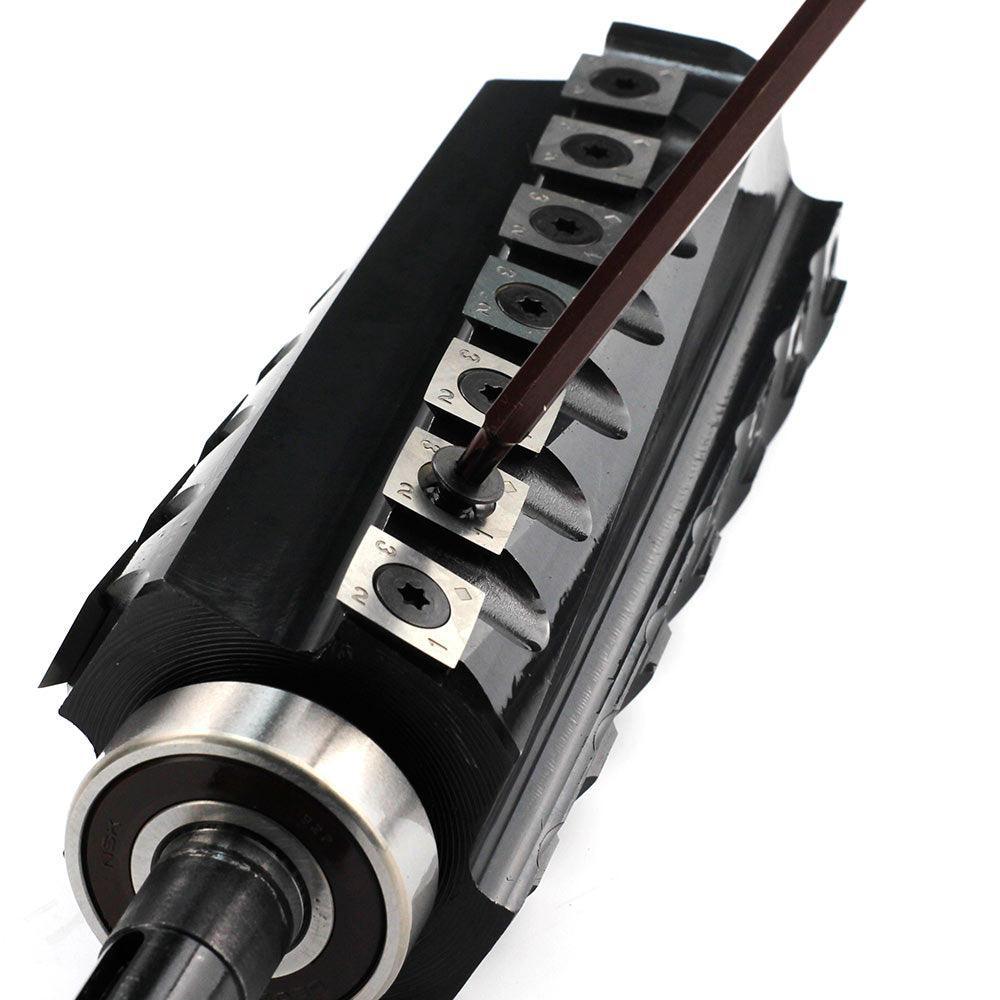

- To properly align the inserts, please tighten them to approximately 6 Newton-meter torque. Please refer to the manual for guidance on installing the carbide insert knives when replacing them.
- In case you're unable to locate a cutter head that matches your machine model, we also provide an option for a custom cutter head.

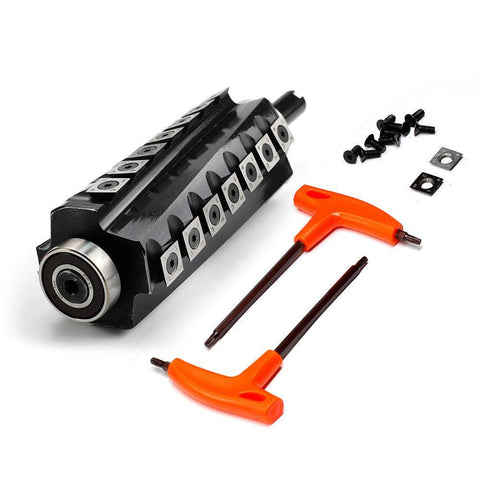

Components Included
- 1 x 6-inch helical spiral cutterhead
- 30 x Carbide insert knives
- 30 x Screws
- 2 x Screw Drivers
- A pair of bearings (Pre-installed)
Technical information
Technical information
| Max Wide of Cut | 6 Inch |
| Diameter | 63mm |
| Cutting Wings | 4 |
| Quantity of Knives | 30 |
| Insert Knives | 15x15x2.5mm-30°-R150-4R0.5 |
Application
Application
- Wood
SHIPPING DIAMETER
SHIPPING DIAMETER
- Package
- In Carton
- Net Weight
- 1900
- Package Size
- 220 x 50 x 50mm
Customer Reviews
This cutter is Awesome!! Super clean cut and easy install with the new bearings already installed. I’m loving my new helical cutter !
Thank you for your positive feedback on our Helical Cutterhead for the Grizzly 6' Jointer! We're so glad to hear that you're enjoying the cutter head!
I had to make a couple of modifications for it to fit, but all was good and works so well. Th as thanks again. Patrick
Hi Patrick, thank you for taking the time to leave a review. You must be very skillful at machining!
I have a stellex 6 inch jointer made by shop fox there was some dought if this would fit my jionter but it fit just fine had to shim the front 10)thousand but other than that and accidentally striping a bolt had to re-thread the stud but it works fine sound is different and cut is very nice very little sanding needed when done
Thank you for taking the time to leave your valuable feedback!
Helical head fit on an older Grizzly 6" jointer without issue. Good cit quality and no complaints so far.
Thank you so much for providing us with your valuable feedback!
