Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead

SKU: FB132H
$1,394.00 CAD

6% Off
MD6OFF
The European version is expected to ship on 29/05/2026
The European version differs in its use of metric units, a 230V 50Hz motor, and enclosed protective side panels that comply with European safety standards.
Option

12-Month Warranty

We offer a one-year warranty for quality-related issues and lifetime technical guidance from the date of purchase for FindBuyTool FB132H 13" Thickness Planer.

Fast and Free Shipping in 3–5 Days

With local warehouses in California, US, we ship within 1–2 days and deliver to your door within 3–5 days. Enjoy hassle-free shopping today!

30-Day Money-Back Guarantee

You can return a Findbuytool product which states that it comes with a 30 day money back guarantee within 30 days for a full refund for any manufacturer defects or product quality issues

Payment & Security

  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Description
  • Spec
  • What's In the Box
  • Reviews
  • $1,394.00 CAD

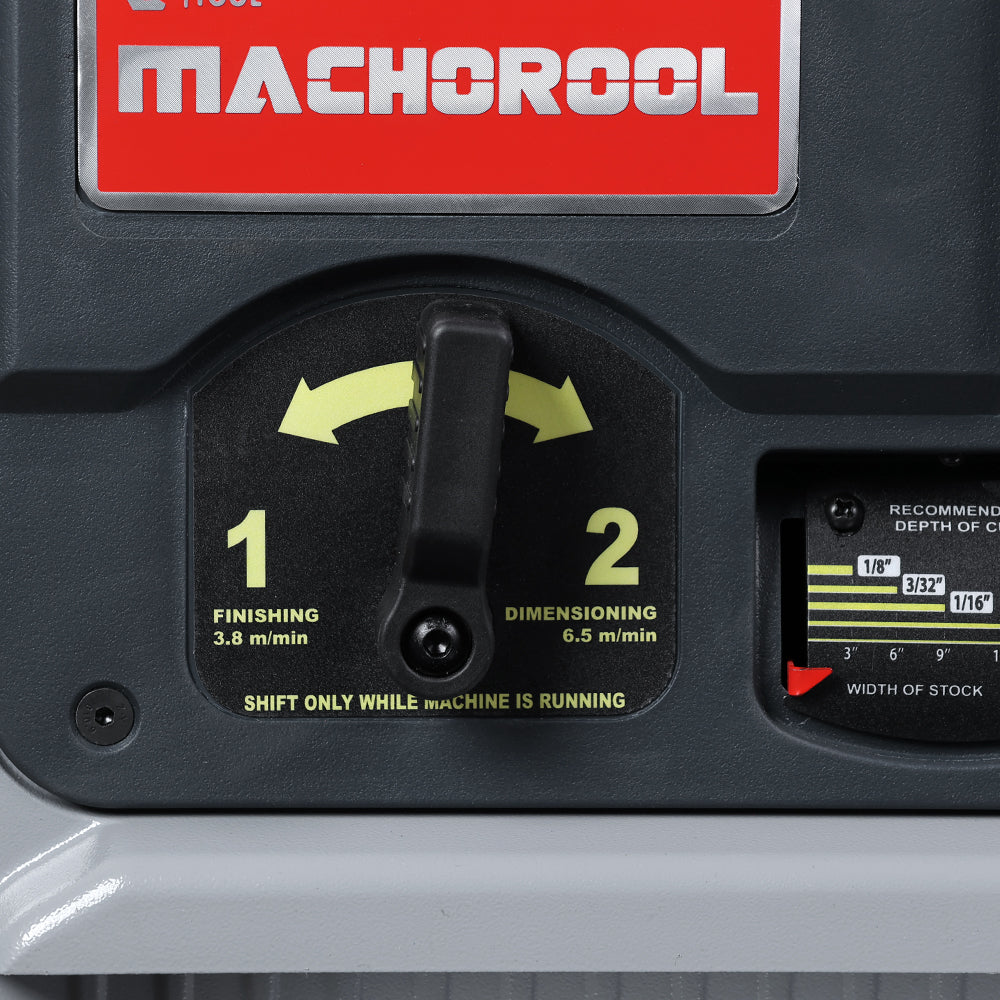

2-Speed of 21 or 12 FPM

The FB132H 2-speed planer is a professional-grade woodworking machine with two adjustable speeds: 21 FPM and 12 FPM.
21 FPM – Ideal for roughing, quickly planing to the desired thickness, such as planing untreated wood and removing bark.
12 FPM – Perfect for fine finishing, achieving a smooth surface without tear out. It can easily handle a variety of woodworking needs, from hardwood and softwood to rough and fine work.
(The US version uses Imperial units, while the European version uses metric units.)

Powerful 15A 2.5 HP 20000 RPM Motor

This 15A, 2.5HP (1800W) motor (US Version)/ 7.8 A 1800W motor (EU Version) delivers high torque and stable power, turning the cutterhead at 8,700 RPM. It plans through dense hardwoods like oak and maple without being stuck and stops - even on 6" thick, 13" wide boards.The use of gear transmission offers higher transmission efficiency and a relatively smaller load on the motor, which can effectively extend the motor's lifespan.

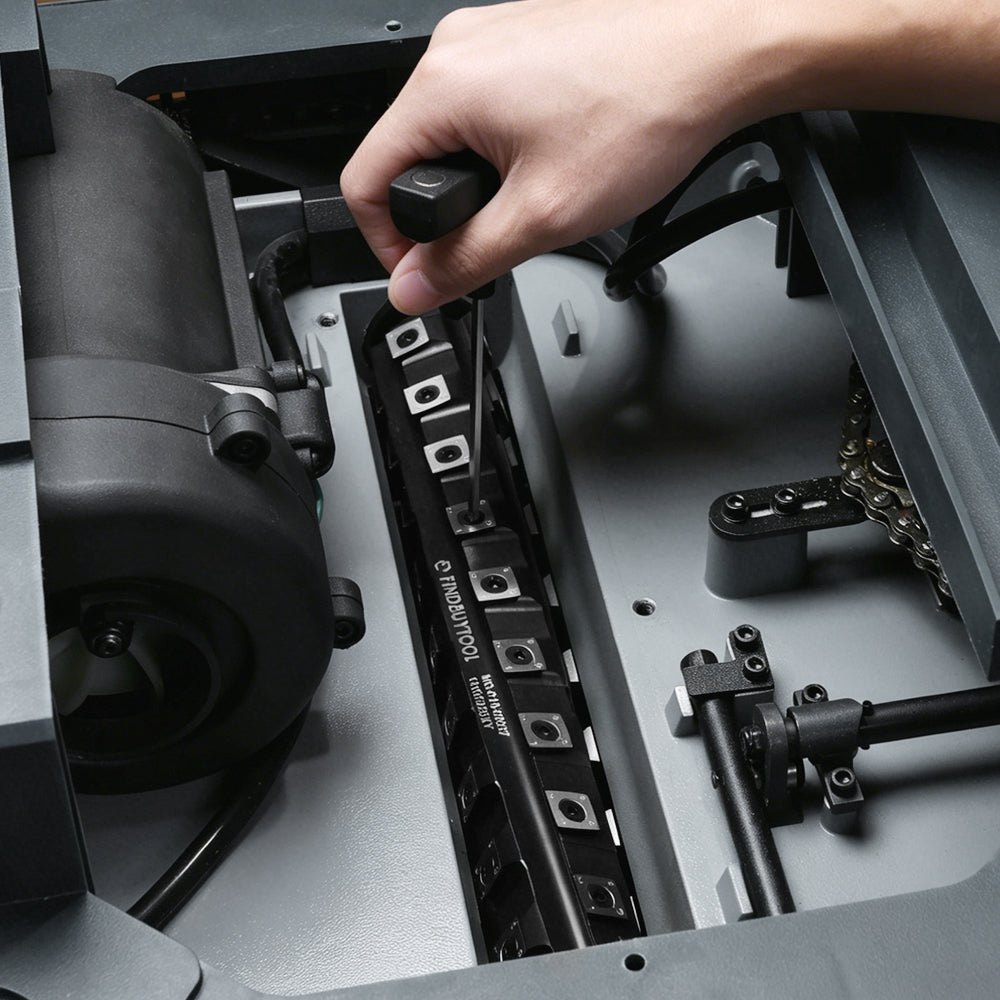

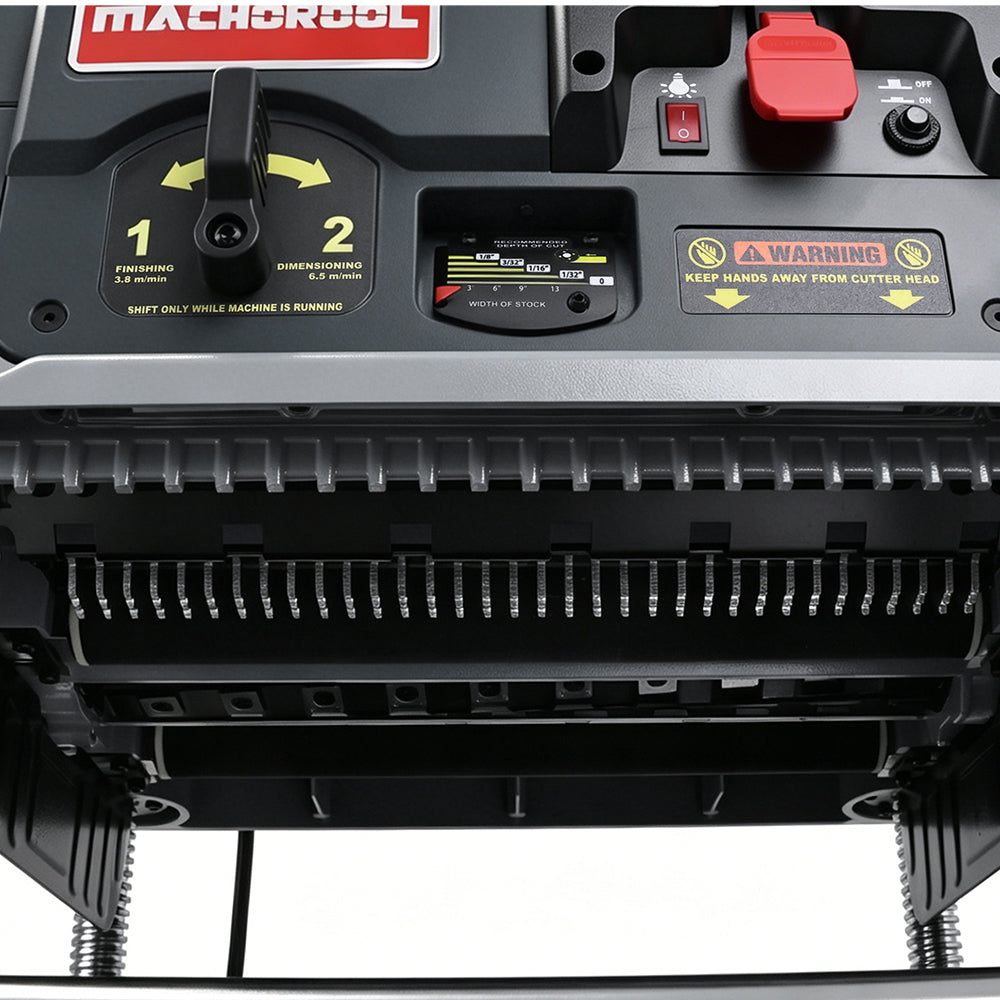

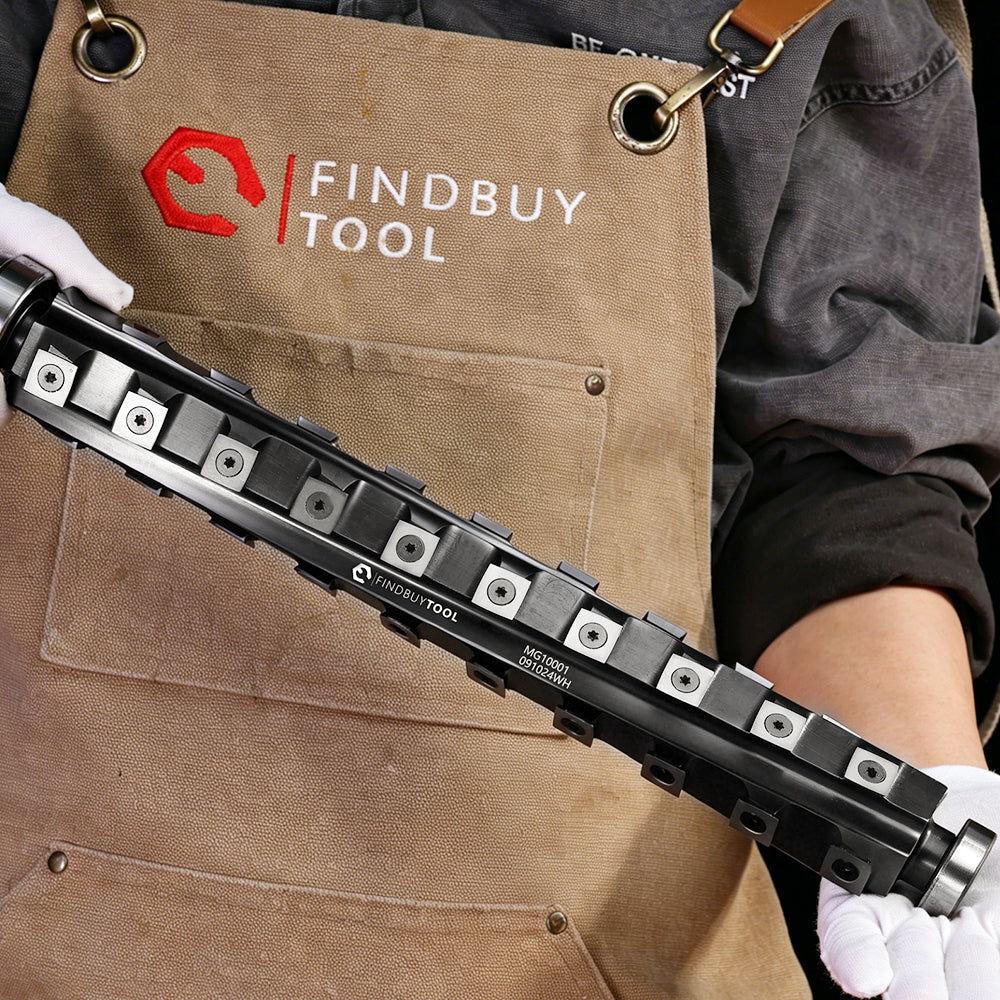

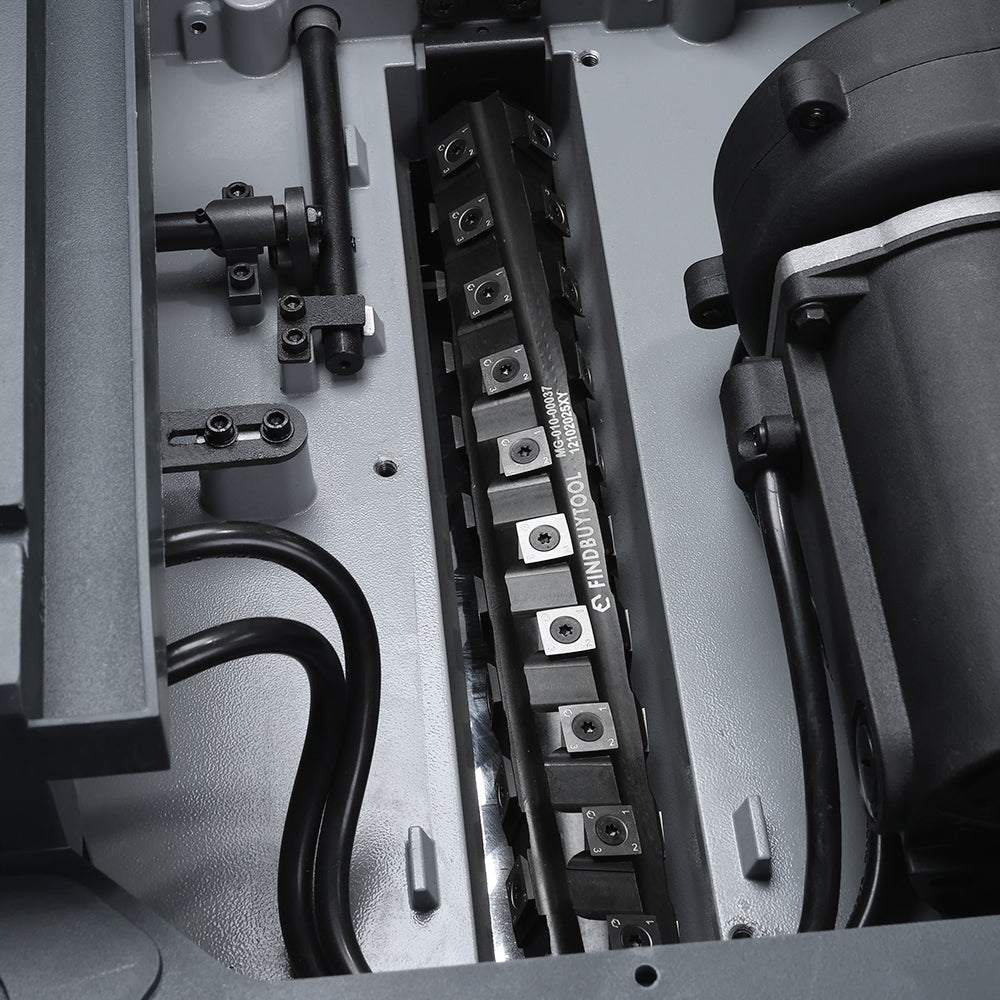

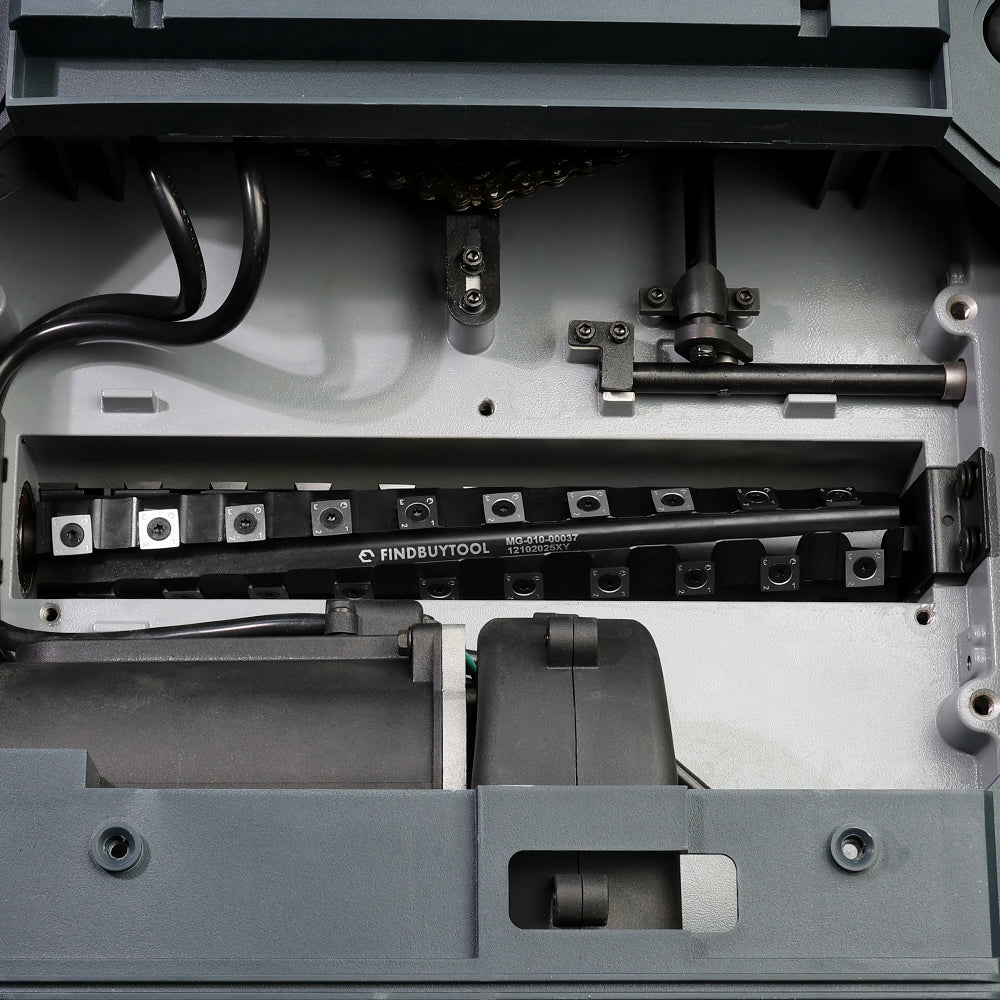

4-Row Helical Cutterhead

This helical cutterhead planer comes loaded with 40 carbide inserts with 4 cutting edges. When an edge dulls, simply rotate the insert to a fresh edge - or replace it entirely when needed. This smart design keeps maintenance quick and affordable. It's perfect for high-volume professional shops. Compared to traditional straight knives, this lifespan lasts 4X longer.

Anti-Kickback Safety Protection

The built-in anti-kickback system instantly stops reverse movement, preventing dangerous material throwback caused by feeding issues or binding. Stay protected and in control, no matter your experience level.

Features of FB132H

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

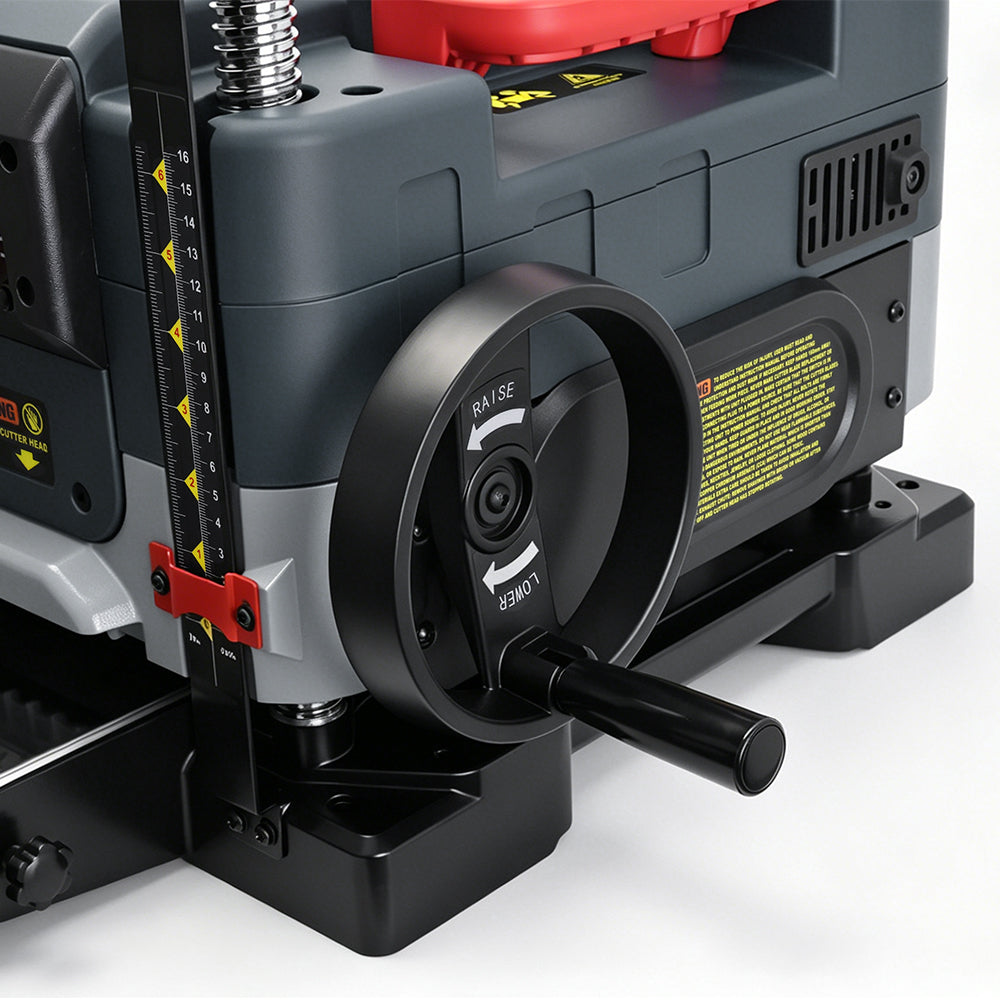

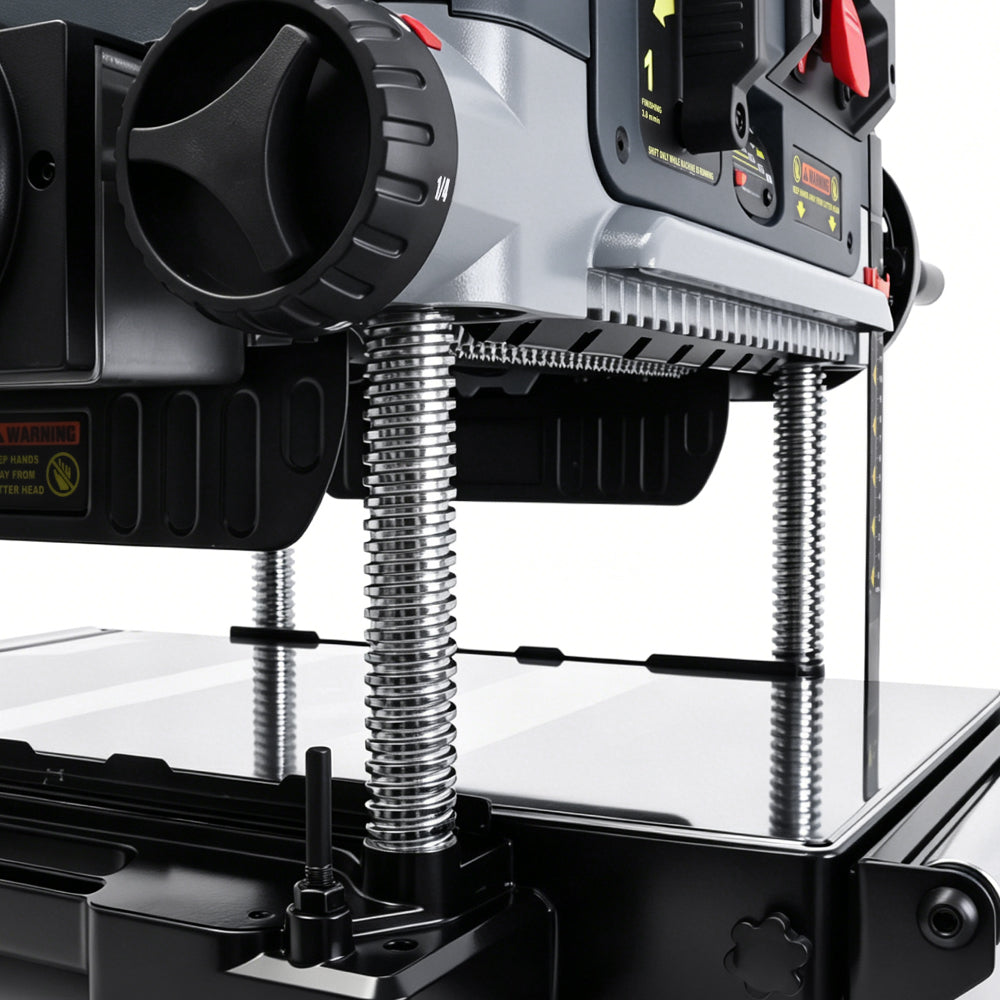

    Precision Height Adjustment

    Our four ball screw assembly with worm gear drive achieve precise adjustment within ±0.05mm. Unlike standard screw-and-gear mechanisms, this professional-grade setup maintains its precision over time.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

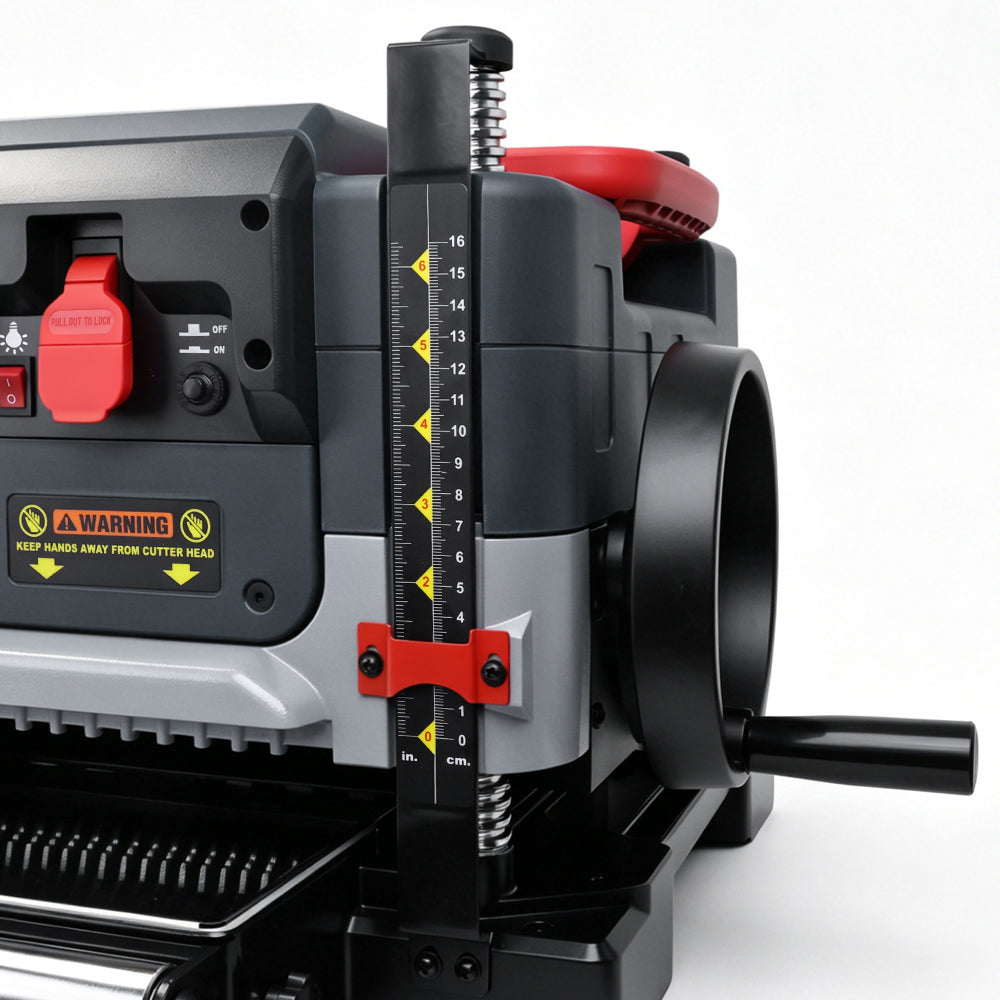

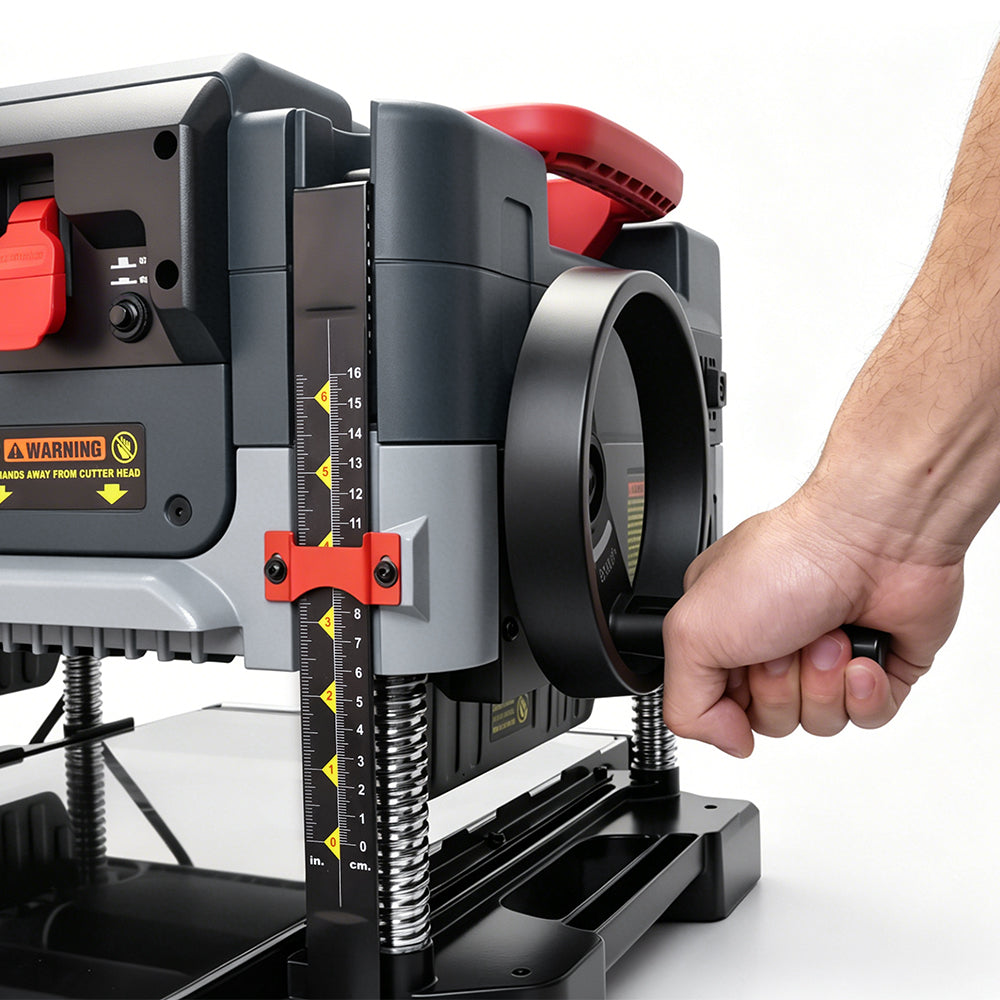

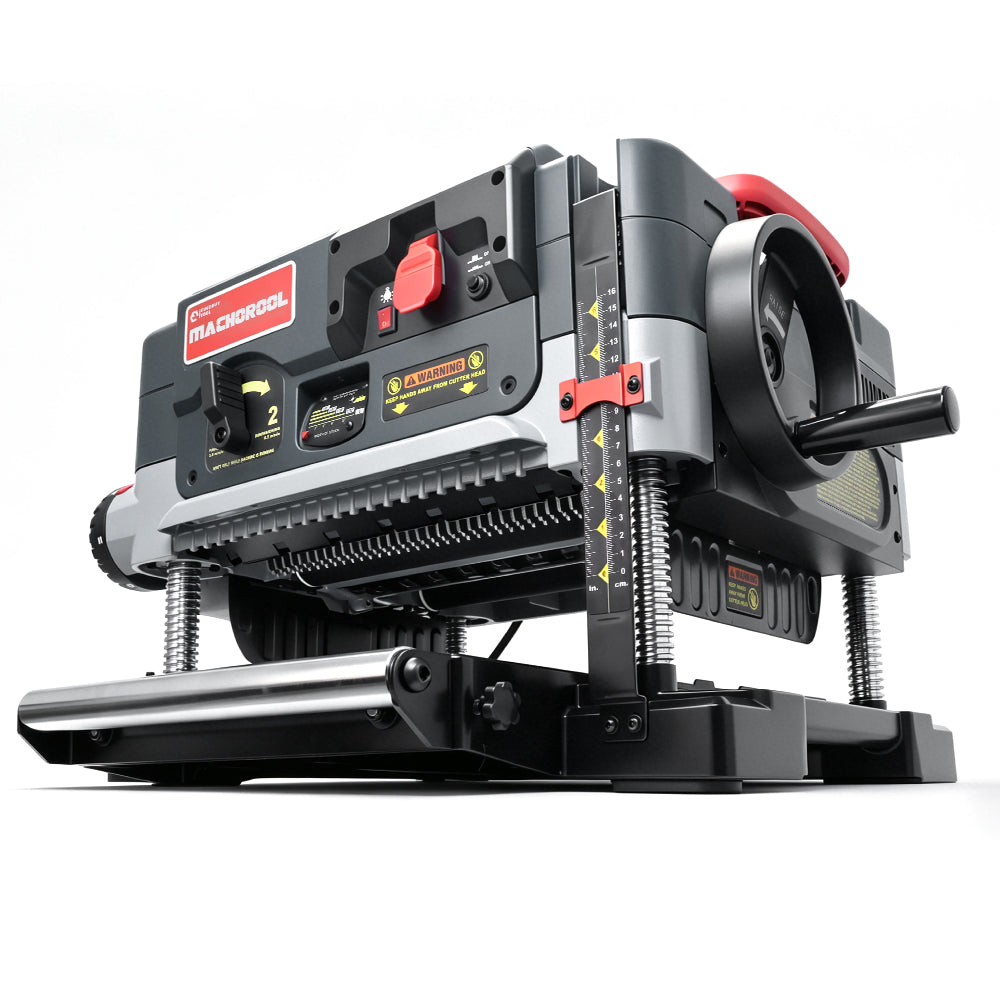

    Visible Depth Scale

    The depth scale shows the height of the cutterhead from the feed table. Dual-sided scales (inches and millimeters) accommodate both Imperial and metric users. Combined with the handwheel, you can easily adjust precise dimensions without guesswork.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

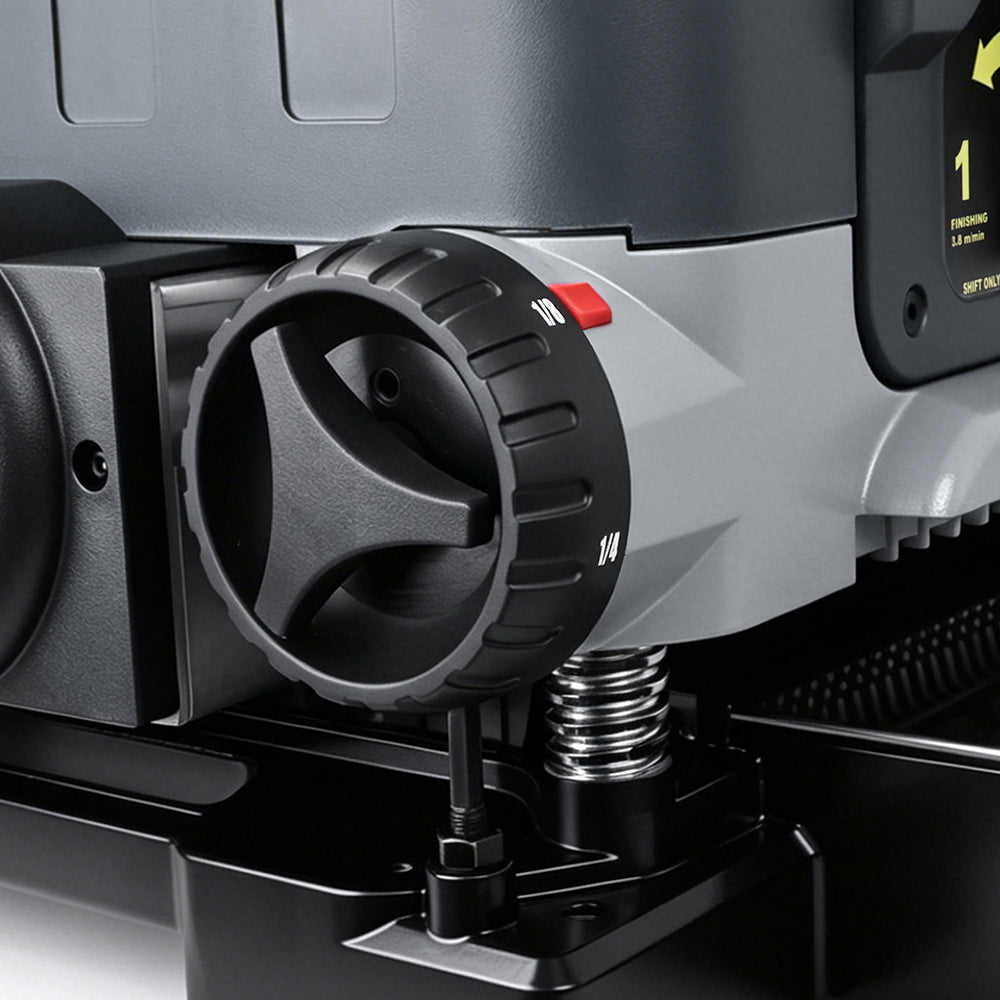

    Repeat Cutting

    The Preset knob has a six-position preset thickness. You can precisely lower the cutterhead to your most frequently used dimensions (up to 1/8" max cut depth). This ensures consistent repetitive cuts - even when planing large batches of workpieces.

  • Stable and Precise

    2 Feed Speed and Precise

    Achieving 21 FPM or 12 FPM with a tolerance of <0.05mm

  • 40 Carbide Insert Knives

    40 Carbide Insert Knives

    40 Replacement inserts, sharp and durable

  • Smooth Planing

    Smooth Planing

    Smooth cut without tear-outs and snipe

  • Low Noise Level

    Low Noise Level

    At least 50% lower noise than a traditional planer

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

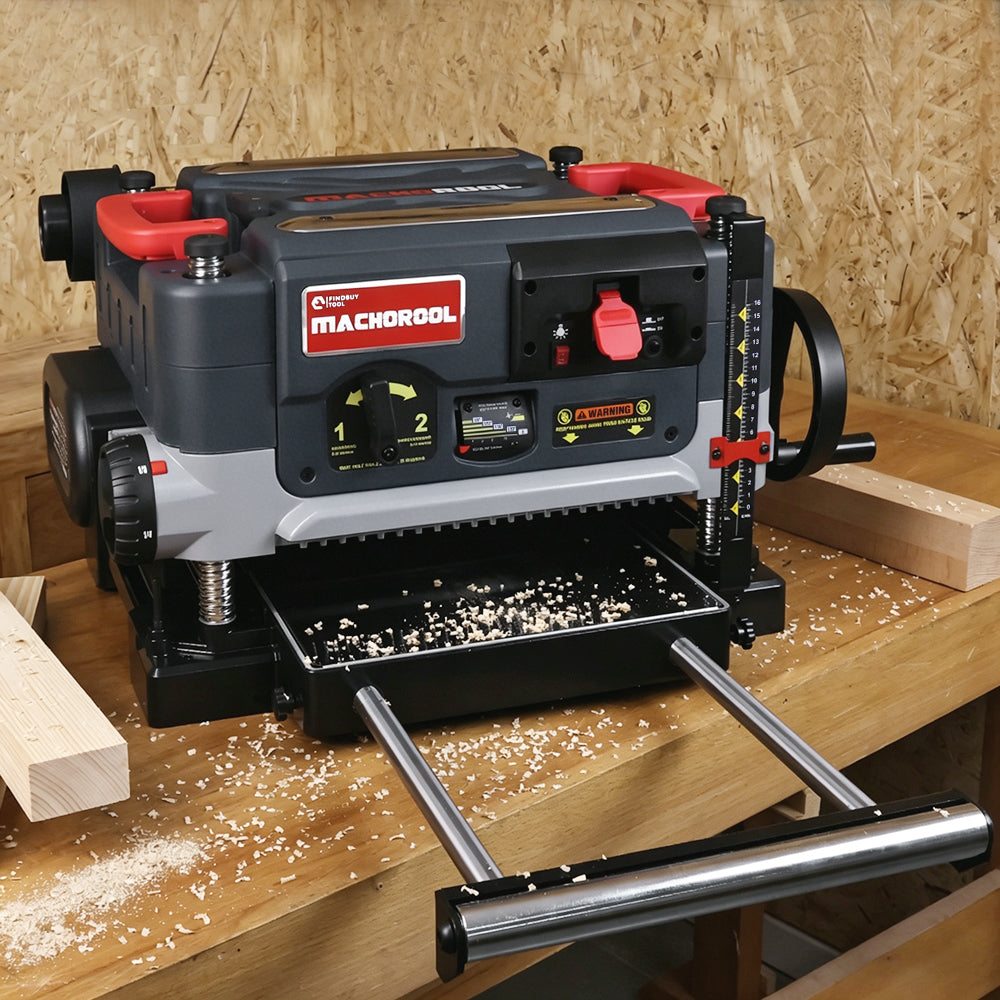

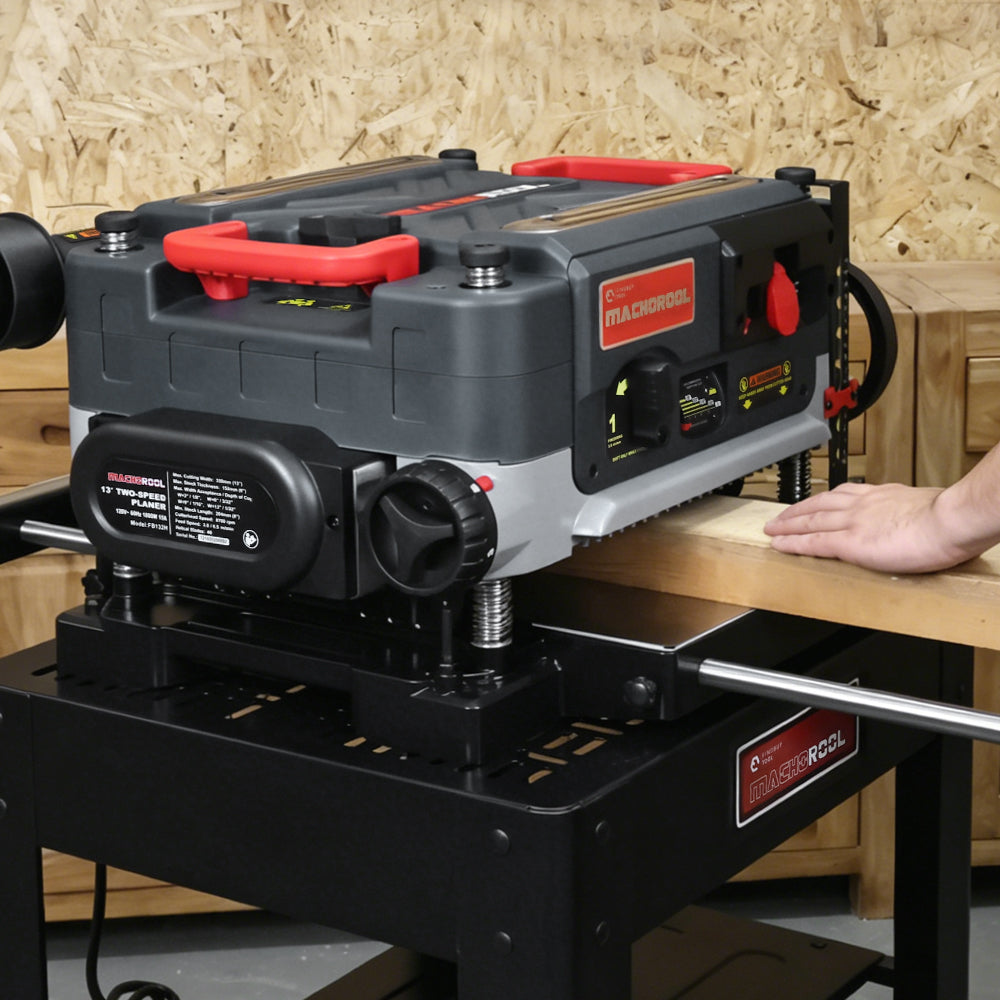

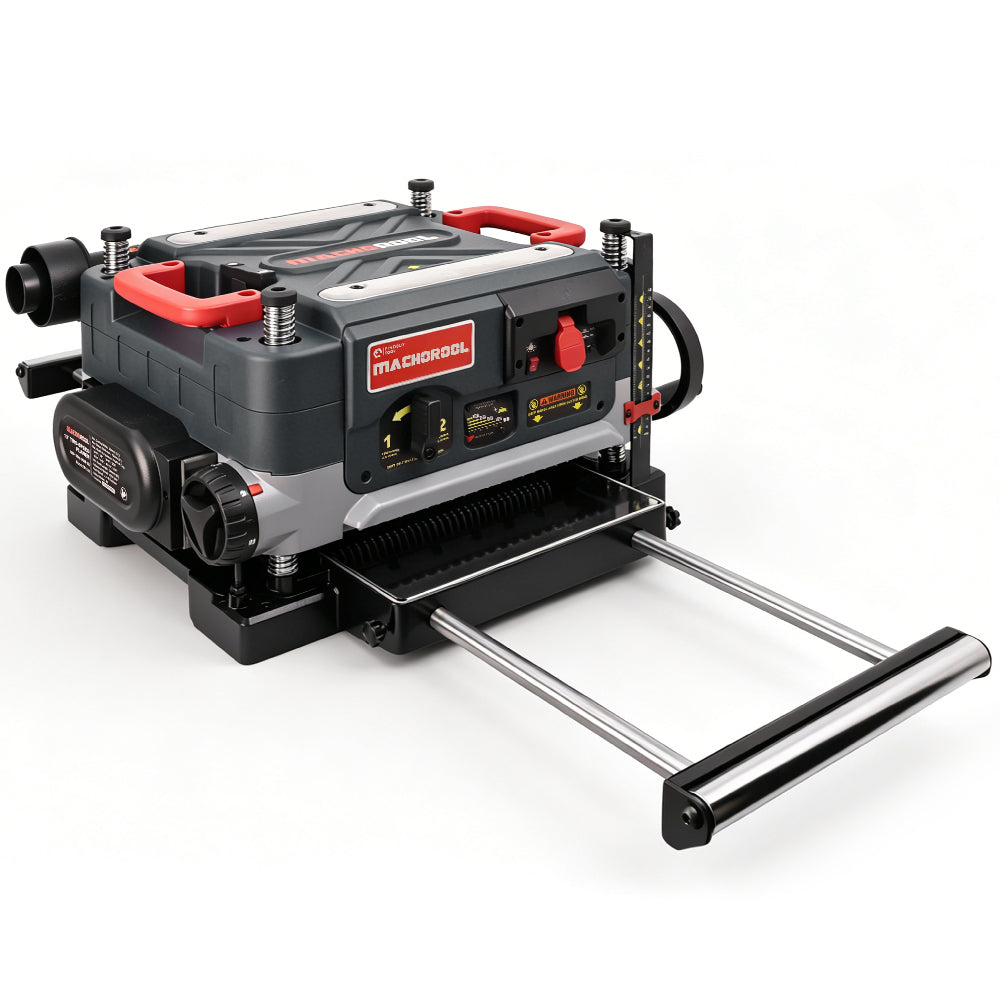

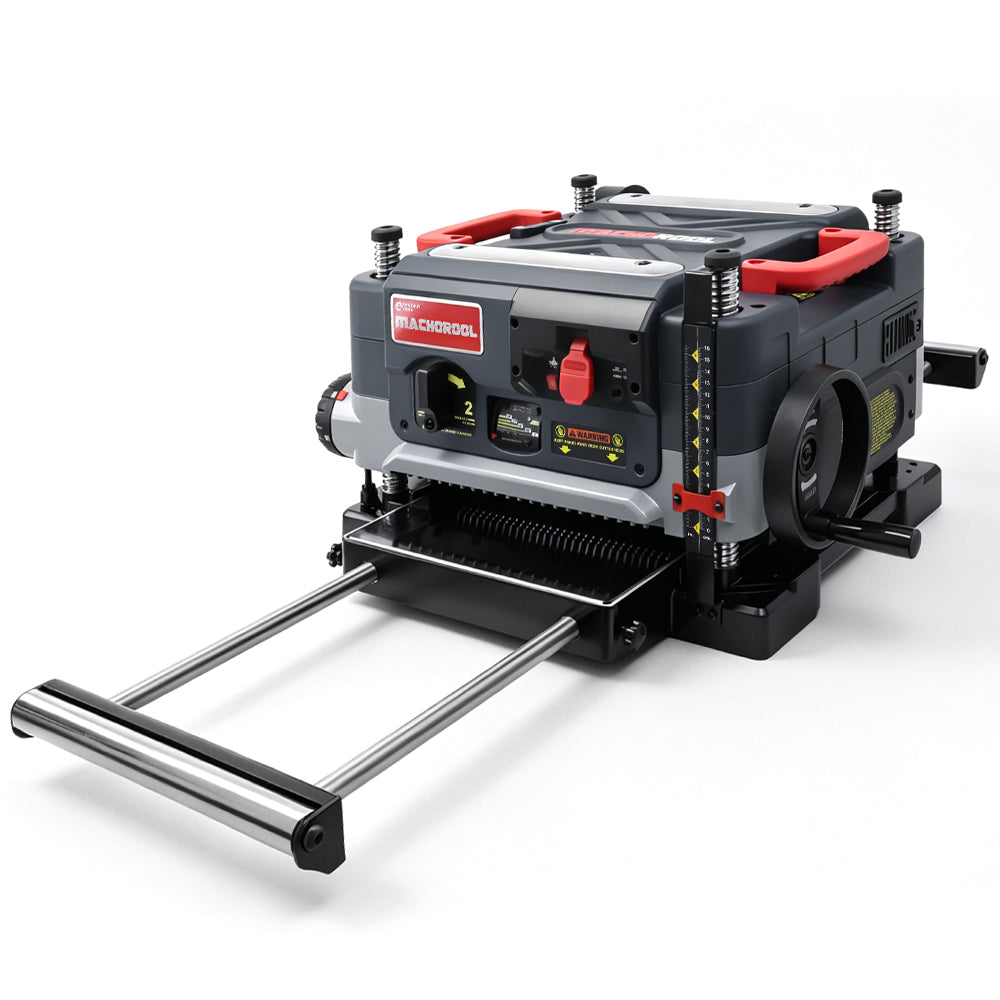

    Adjustable Feed Table

    We've added pull-out extensions to the heavy-gauge infeed and outfeed tables, allowing you to extend the table length up to 45 inches to handle longer plates. This keeps the plate coplanar with the table, providing better support and preventing it from tipping or breaking.

  • Less Vibration

    This thickness planer features a cast aluminum base that's 2X as rigid as a standard planer with a larger base area and a lower center of gravity to minimize vibration. Holes on the base of the FB132H allow it to be securely fixed to a workbench. This allows for smoother, flatter cuts with less snipping and tearing out.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

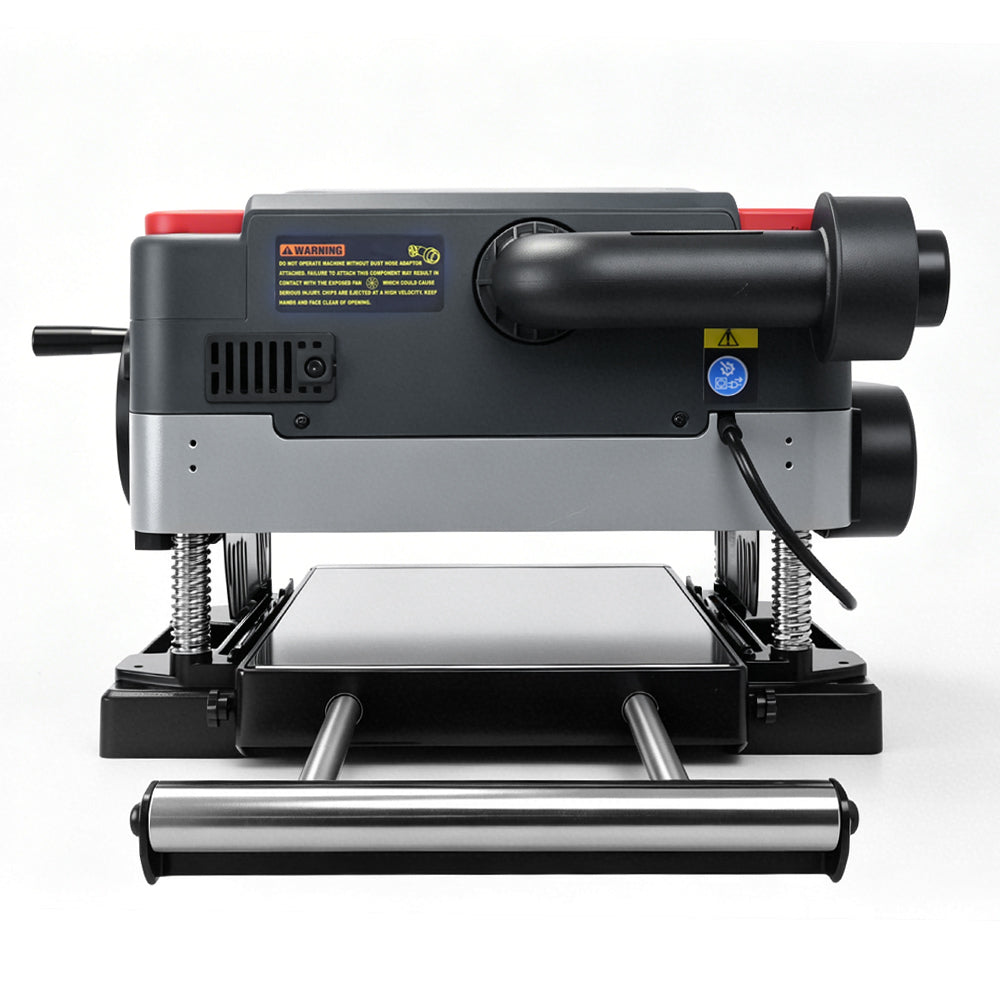

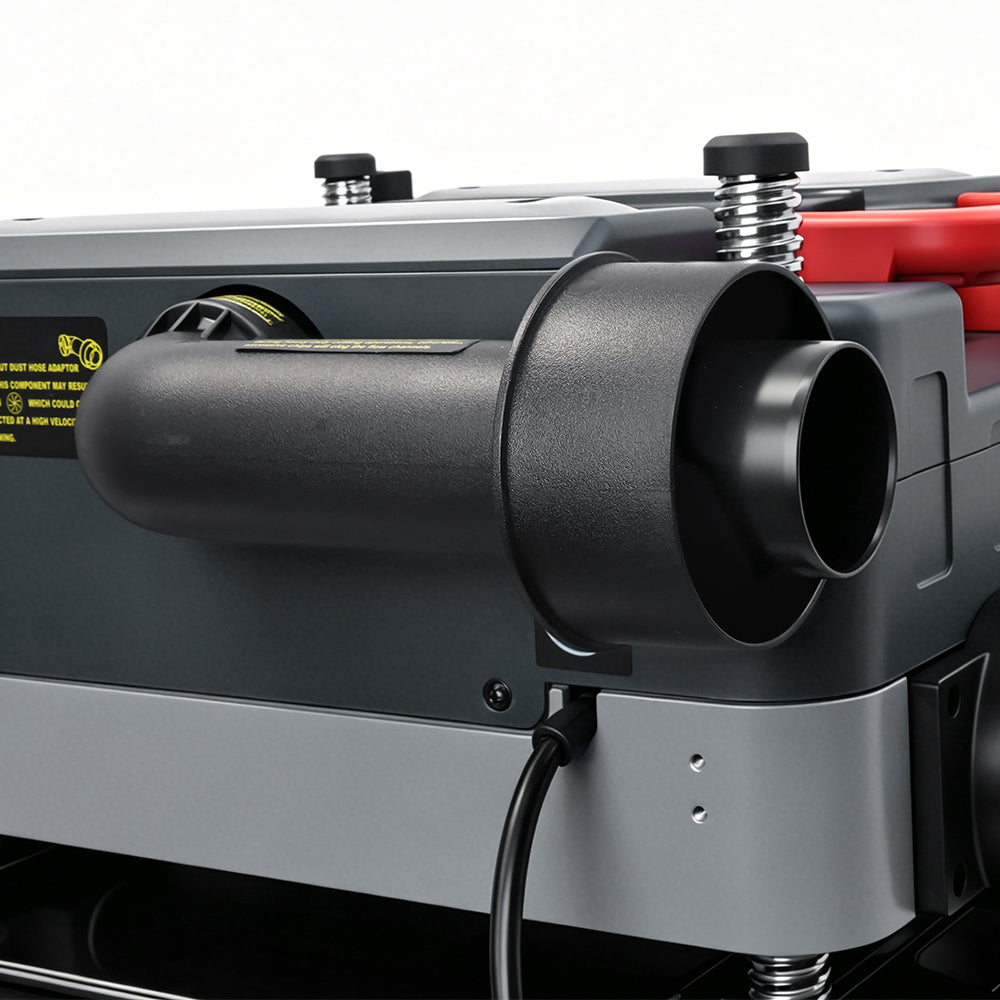

    4" Dust Port with Chip Ejection

    The fan-assisted chip evacuation system scrapes chips off the 3,000 RPM cutterhead and directs them straight into the included dust bag, preventing clogs and protecting the cutterhead. It's high-capacity 4-inch port connects easily to standard shop vacs or dust collectors, removing 95% of chips during use.

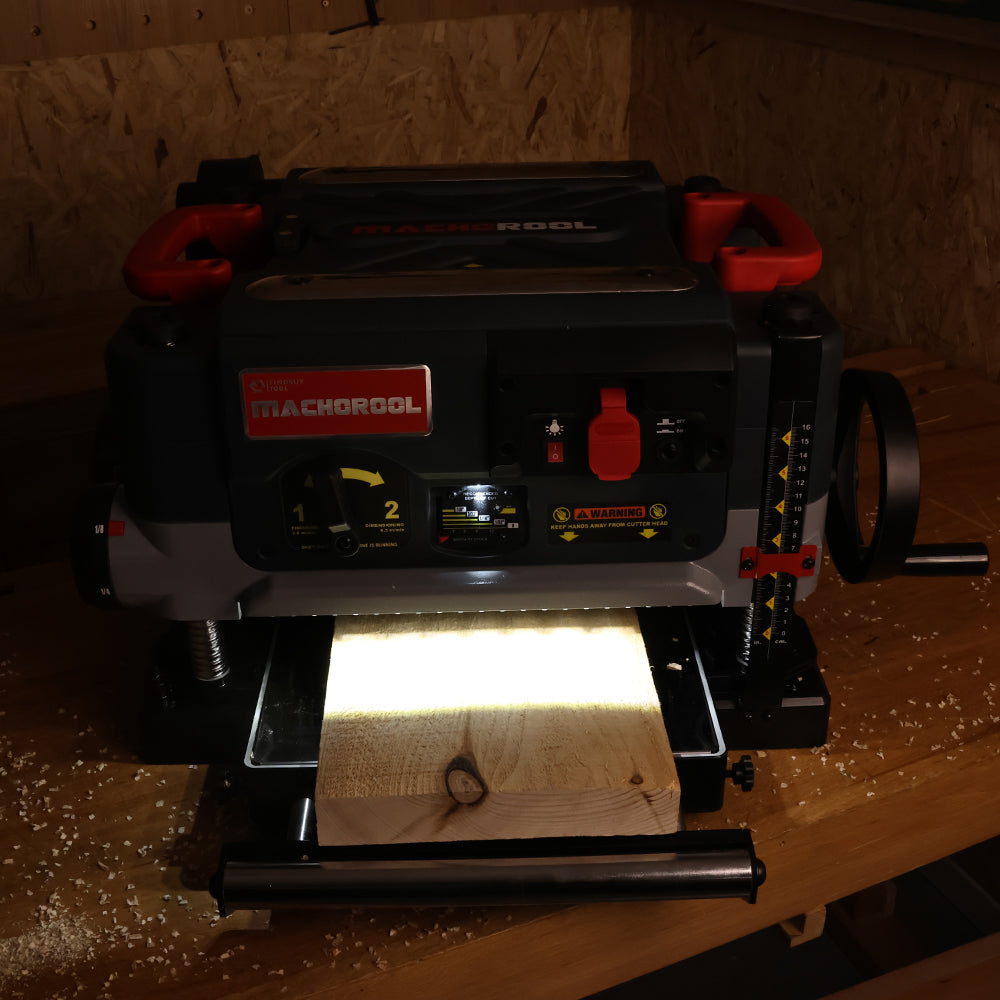

  • Led Light

    The wood planer is equipped with two LED lights to provide additional illumination for the depth-of-cut gauge and infeed table.This ensures good visibility even in a dark workshop or garage.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

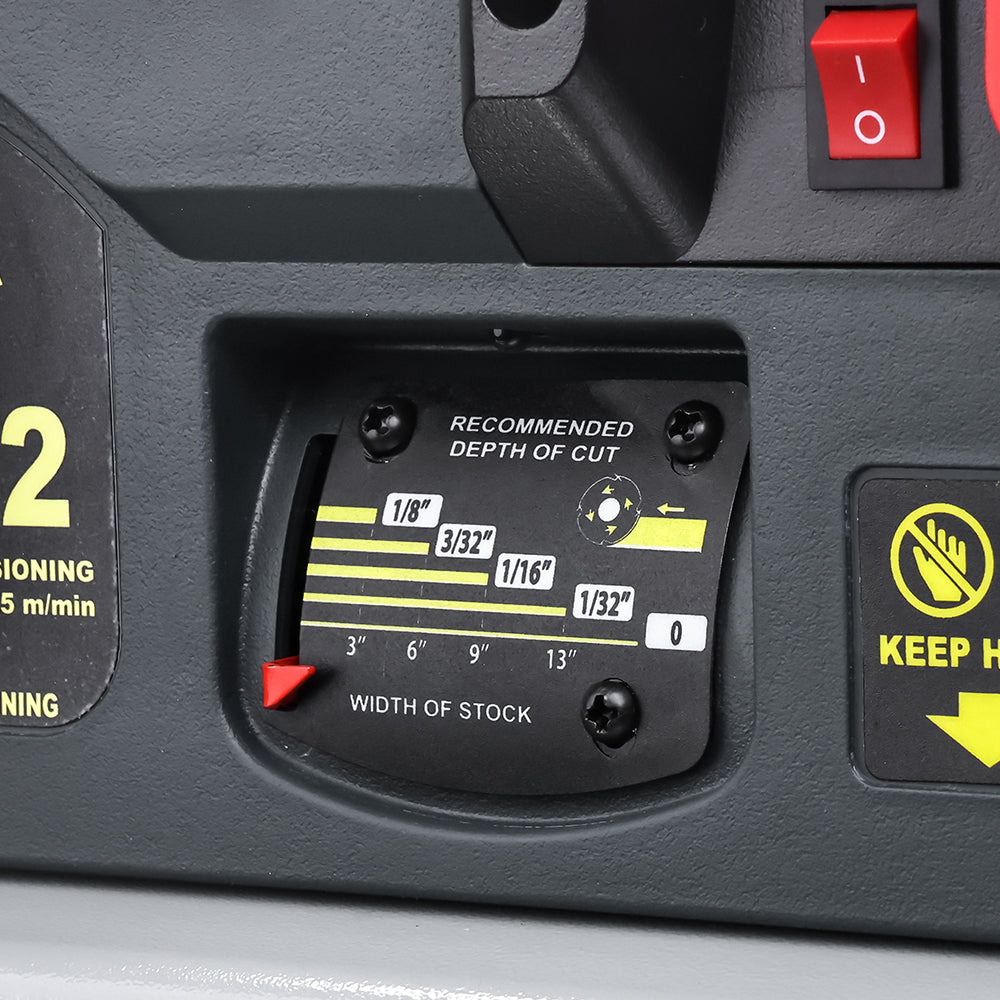

    Depth of Cut Gauge

    The thickness planer is equipped with a depth-of-cut gauge. Easy-to-read depth-of-cut gauge shows cut depth from 0 to 1/8", allowing users to know exactly how much material will be removed on each pass.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

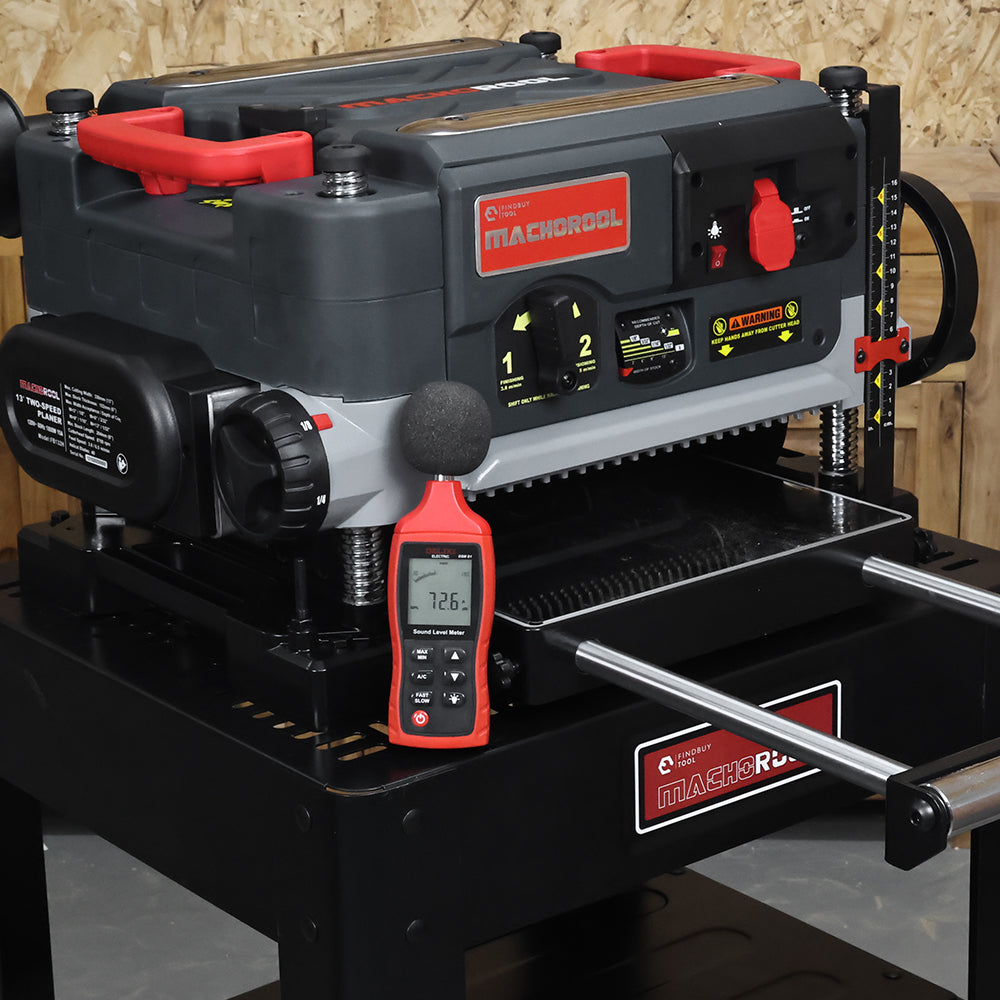

    Low Noise Level

    Our benchtop thickness planer helical heads are lab-tested for a quieter woodworking experience. Just focused planning with less noise fatigue.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

    Automatic Carriage Lock

    The auto-locking cutterhead prevents the cutter head movement for flawless, professional-grade results—no manual locking needed. Just load your board and plane with confidence, knowing every cut stays locked in precision from start to end.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

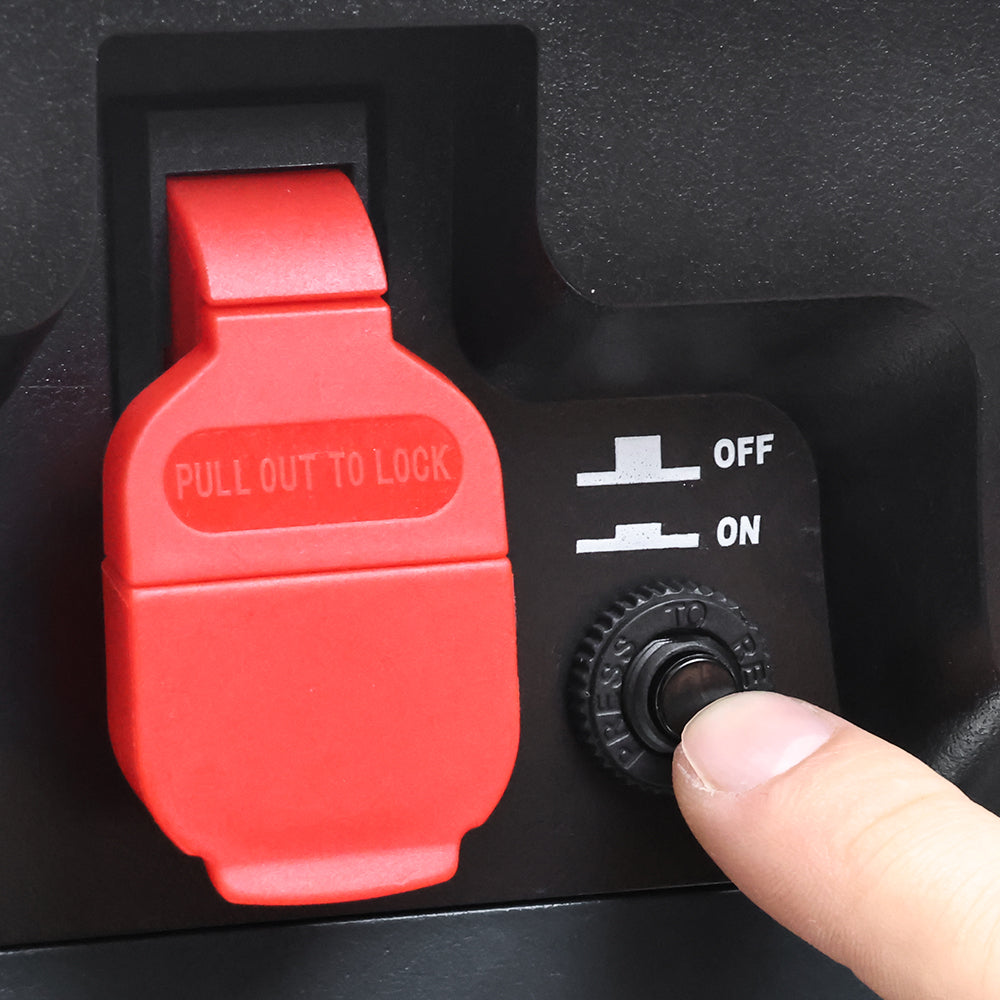

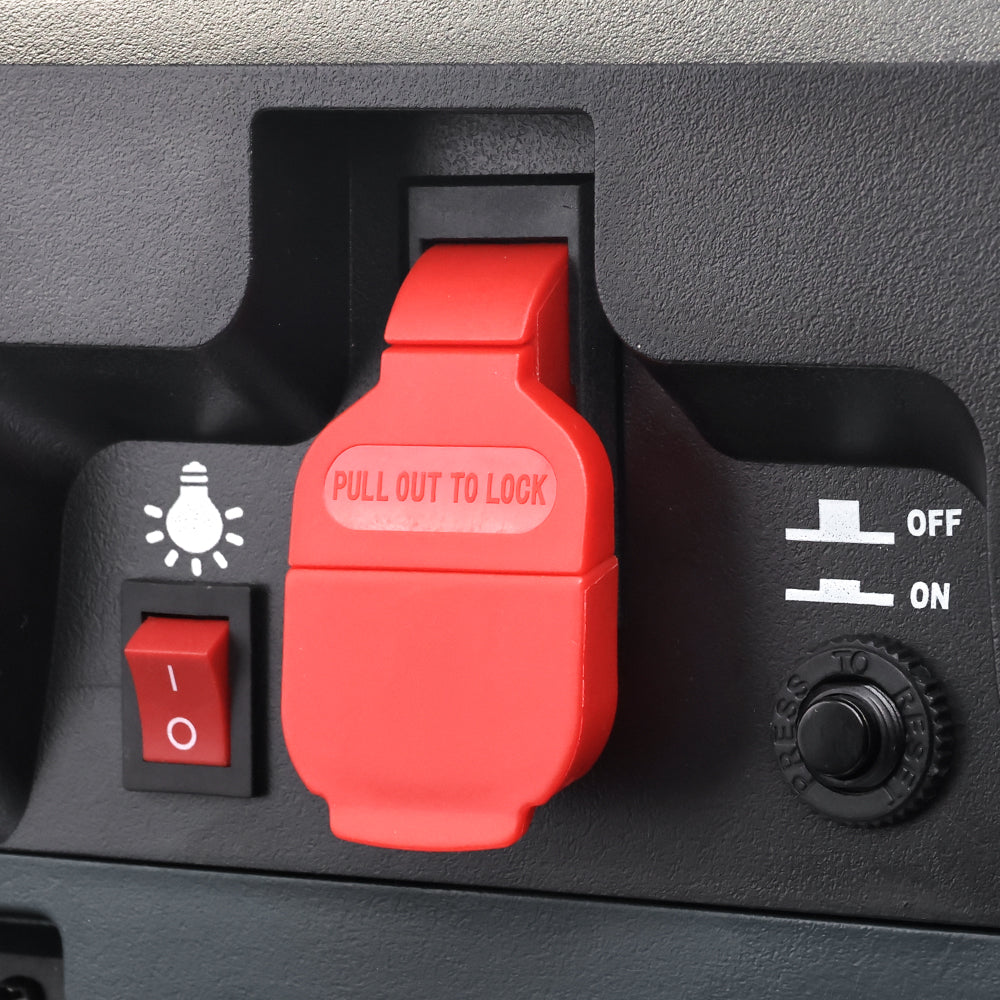

    Overload Protection

    This thickness planer is equipped with a circuit breaker. For added safety, when the current overloads, the circuit breaker shuts off the power to protect the motor windings and your safety. The circuit breaker can be reset with the push of a button.

  • Machorool® FB132H 13" 2-Speed Thickness Planer with Helical Cutterhead - Findbuytool

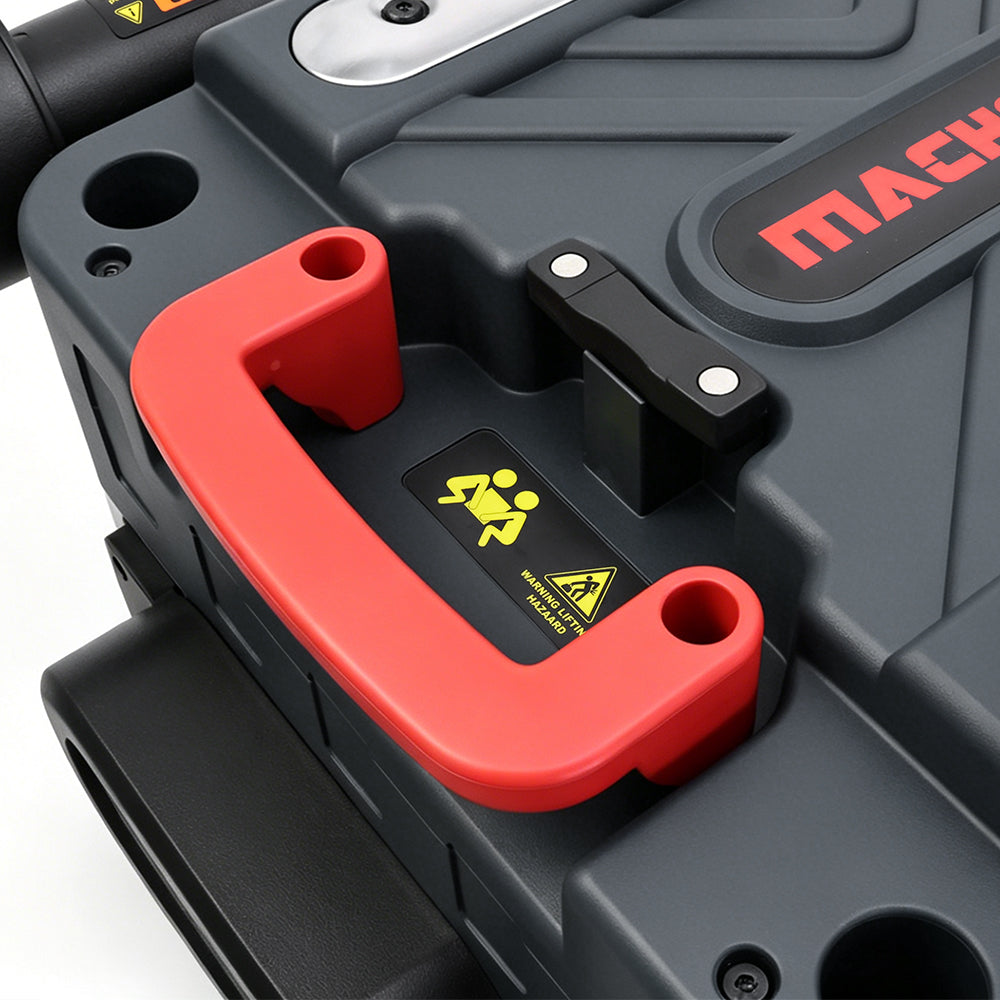

    Handle

    The handles on both sides allow you to easily lift the entire 13-inch planer and adjust its position at any time. It is convenient for users to move the machine to the site for use or store it when not in use.

Technical Details

Motor
Power:1800W (2.5HP)
Voltage: 120V (US Version) / 230V (EU Version)
Frequency: 60Hz (US Version) / 50Hz (EU Version)
Current: 15A (US Version) / 7.8A (EU Version)
Speed: 20000 RPM

Helical Cutterhead
Cutting Wings: 4
Cutterhead Speed: 8700 RPM
Blades: 40 Four-sided 15x15x2.5mm-R150 Tungsten Carbide Inserts
Max Depth of Cut: 1/32″(0.8mm)
1/16″(1.6 mm) W≤9″(230mm)
3/32″(2.4 mm) W≤6″(150mm)
1/8″ (3.2 mm) W≤3″(75mm)
Max Cutting Width: 13"
Max Stock Thickness: 6" (152mm)
Feed Rate: 21 or 12 FPM

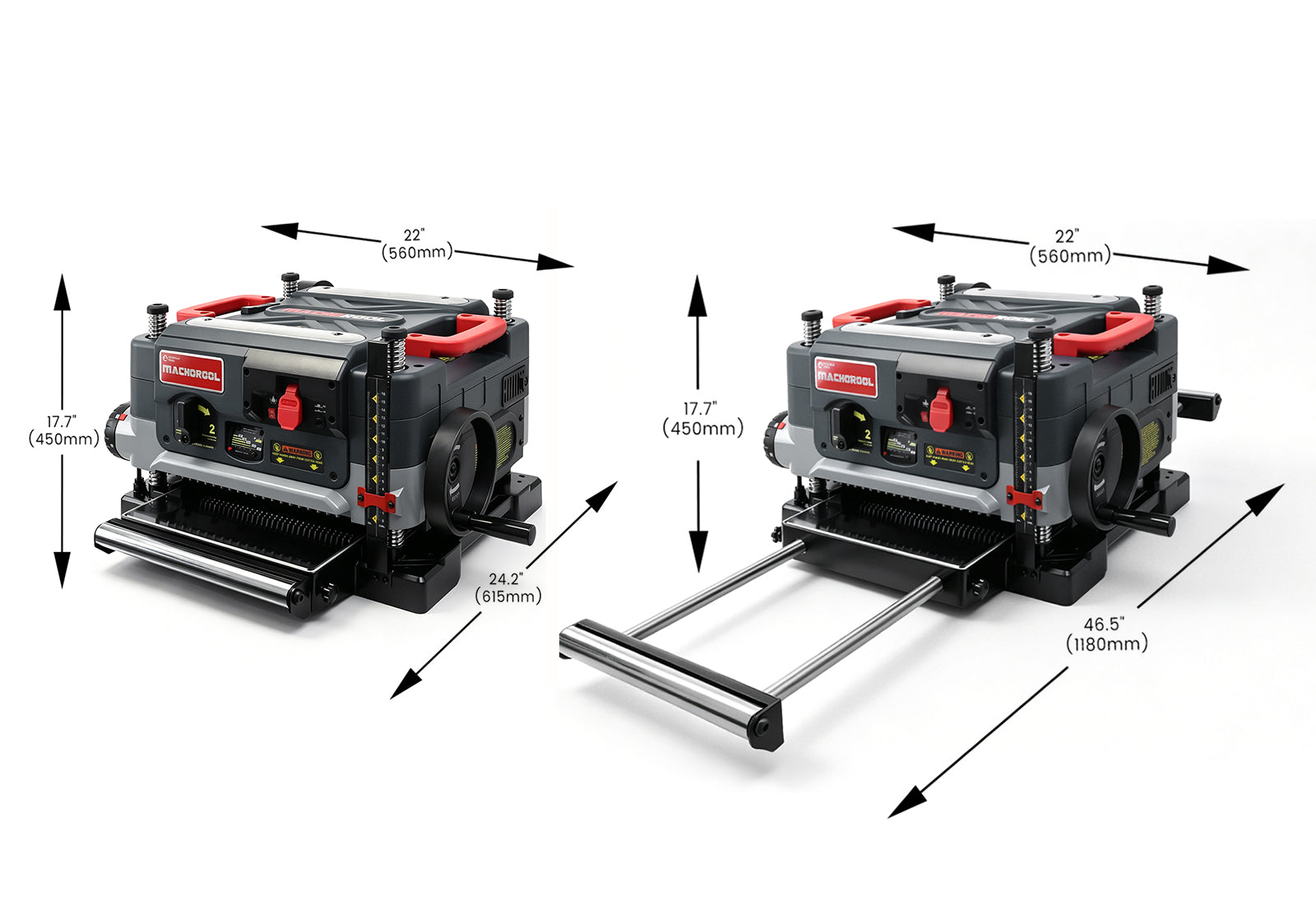

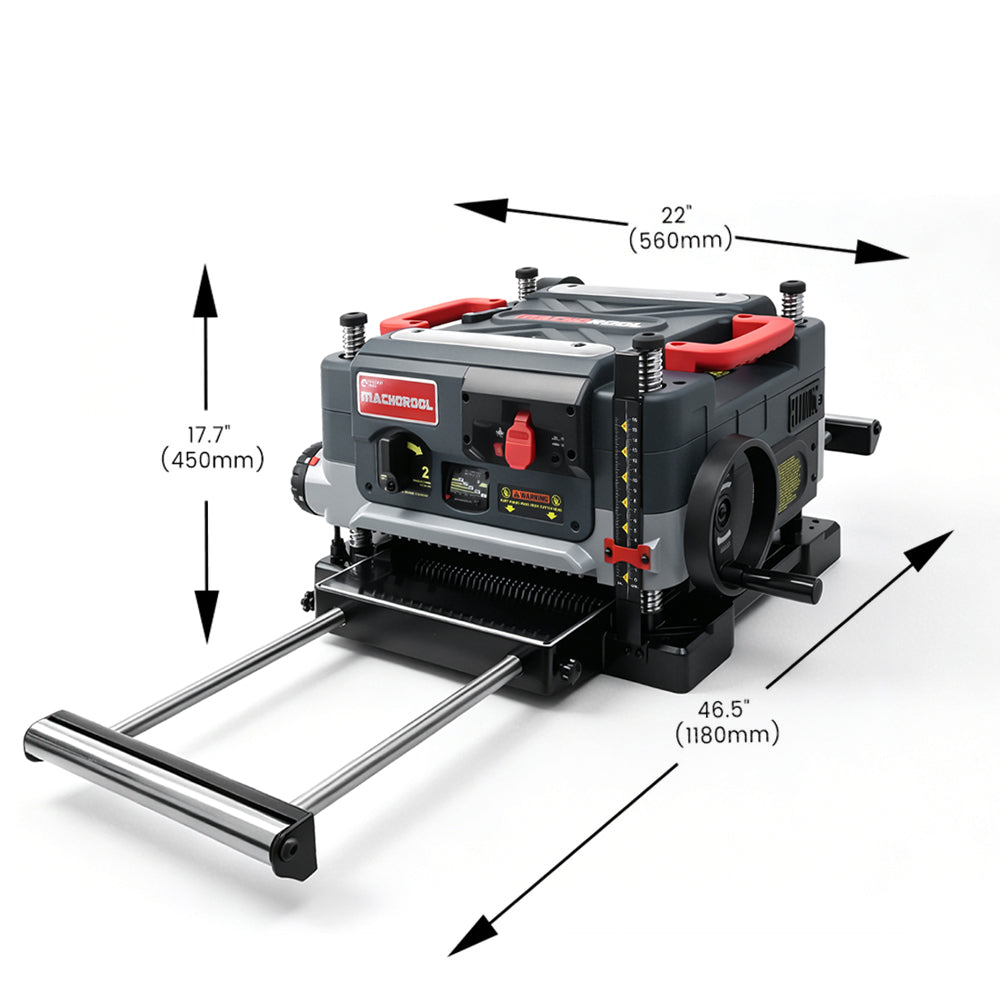

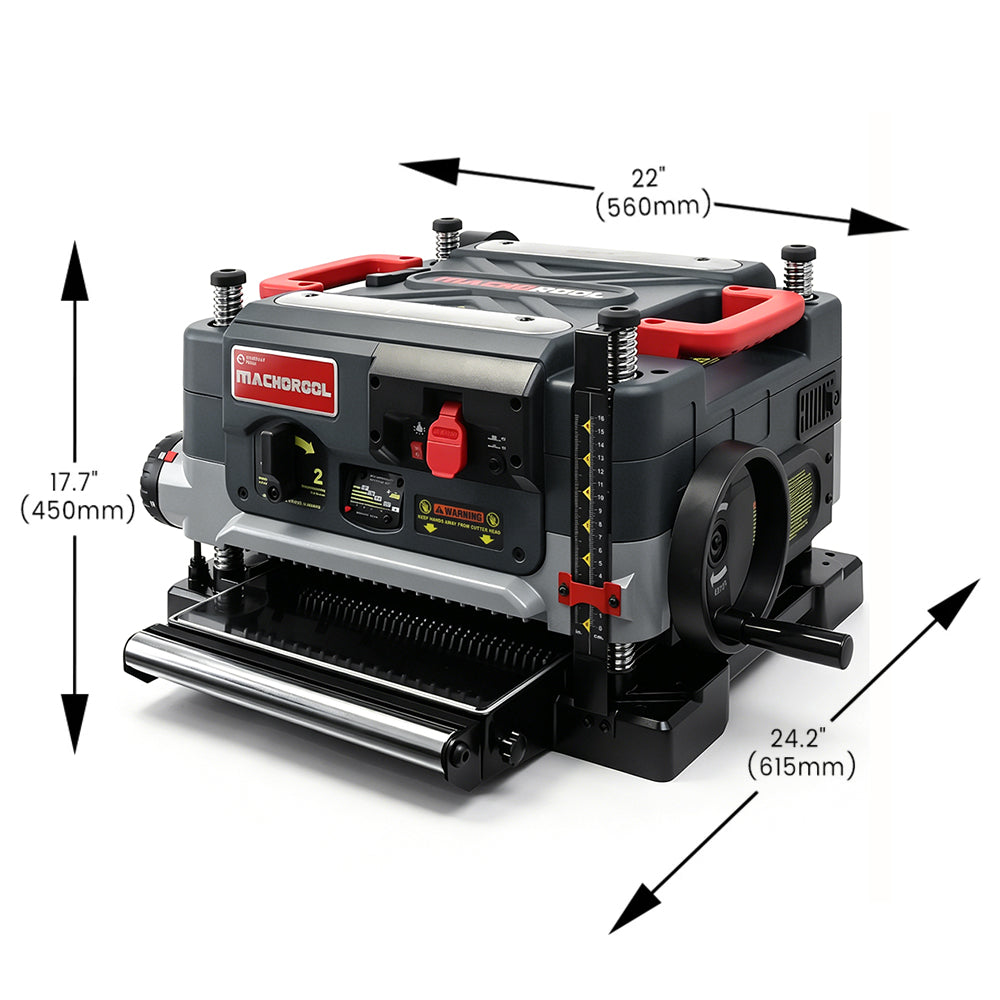

Dimensions
Overall Size (W × L× H): 22"(560mm)×24.2"(615mm)×17.7"(450mm)
Extented Size (W × L× H): 22"(560mm)×46.5"(1180mm)×17.7"(450mm)
Dust Port Diameter:4" (100mm)
Net Weight:49.5kg(109lbs)
Package Weight:54kg(119lbs)

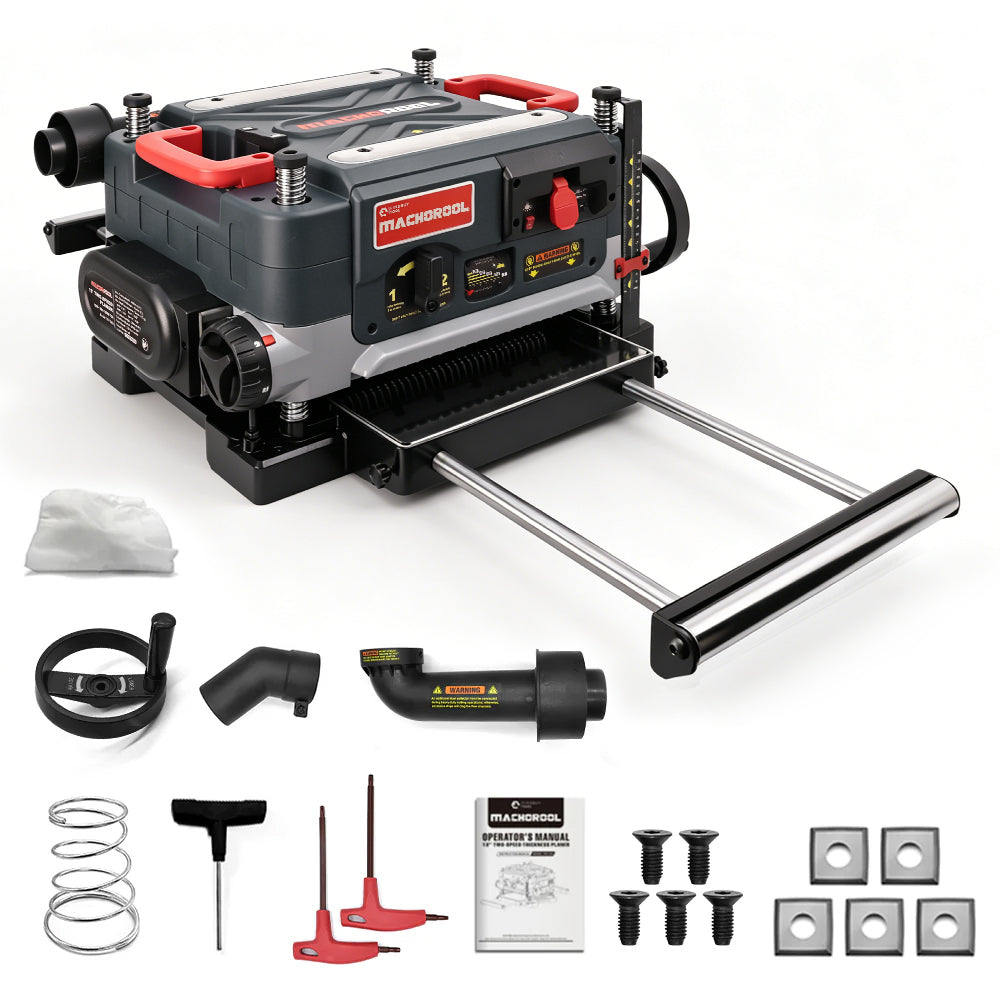

In the Box

The Trust We Build
More About FB132H
Did FindBuyTool Just Push DeWalt to the Background?

FB132H FAQs

Why are there different versions (US, European) of the planer?

This machine or motor is customized for each region to match its local electrical standards, voltage, frequency, and plug types. Each version meets the safety certifications required by the region. This ensures safe and efficient operation.

How long will it take to receive my order?

Orders usually take 3-5 business days to arrive from our local warehouse in the USA. For information on shipping to other countries, please contact us.

What's the size of the FB132H?

Overall Size(L × W × H): 27.4inch × 20.7inch × 18.9 inch

Folded Size(L x W x H): 19.5inch × 14.2inch × 17.6 inch

Dust Port Diameter: 4 inches (10cm)

Weight: 109 lb (49.5kg)

Can I replace the knives?

Yes, you can buy the knives: 15x15x2.5mm R150 carbide insert

Where is the user manual?

Yes, click here to view the FB132H user manual

Can the preset thickness be set at 3/8 inch?

Yes, the minimum planing thickness of the planers is 1/32"

What's your warranty policy?

Findbuytool offers a one-year warranty on all thickness planer, for more specific warranties, please check our warranty policy.

What's your return policy?

All customers have a 30 DAY MONEY BACK GUARANTEE
For more specific return and refund, pls check our return policy.
