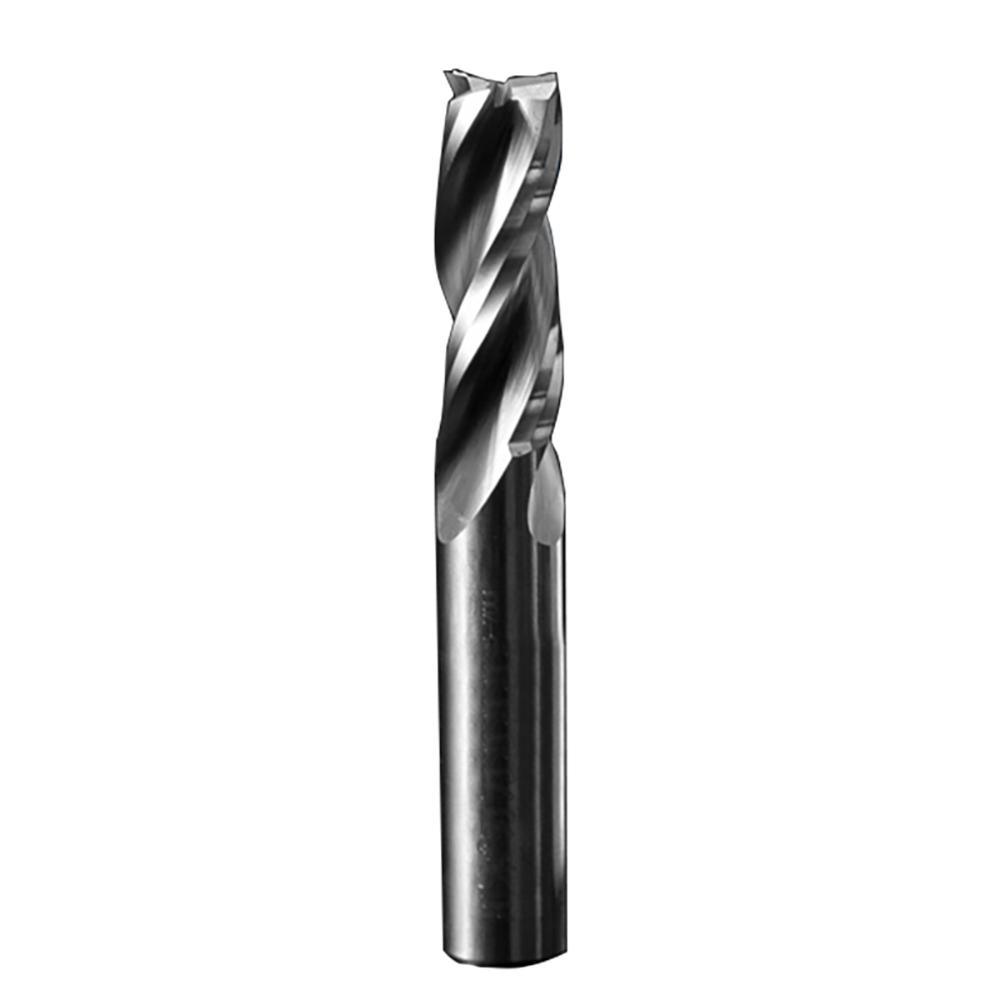

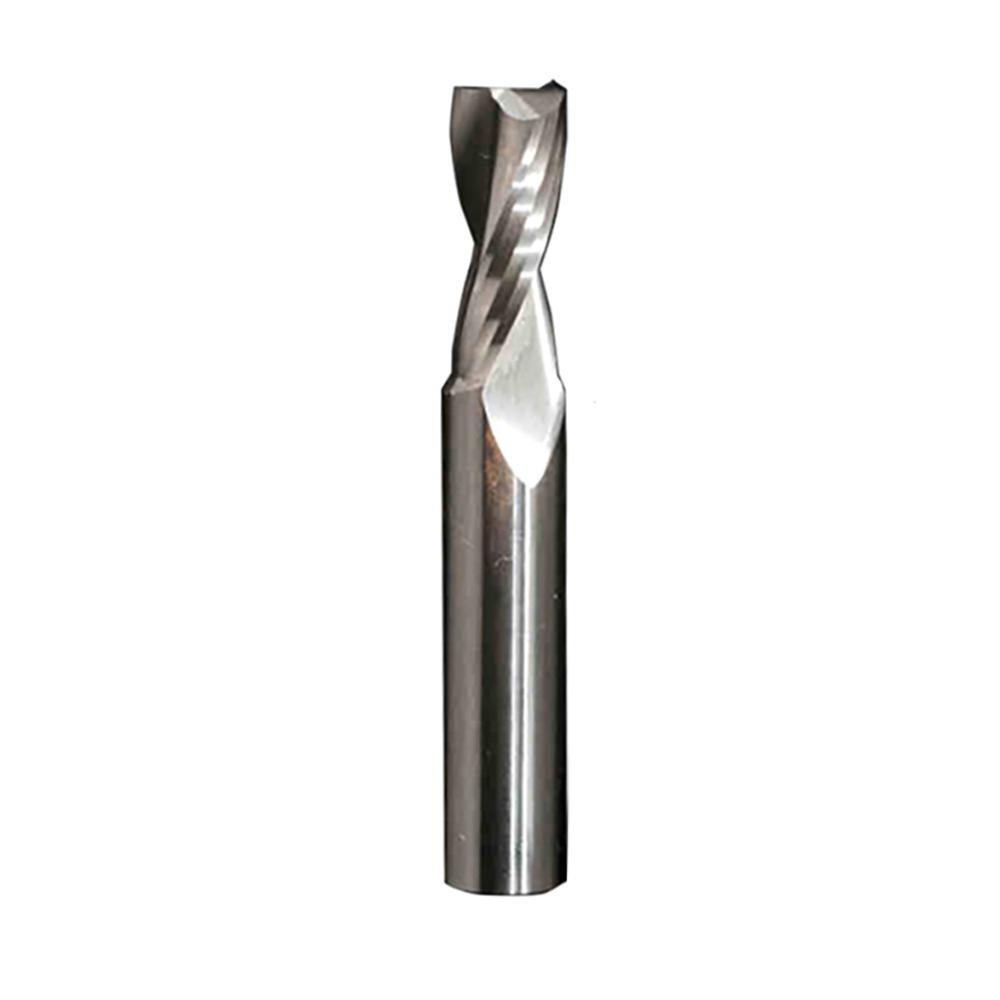

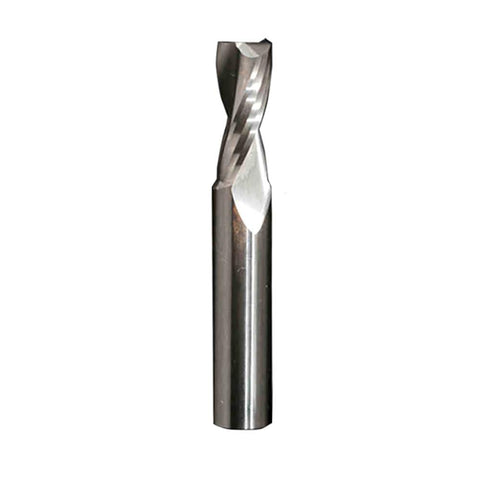

Solid Carbide Three-Flute Spiral CNC Router bit

SKU: S003U8825-70
$42.99
Tax included Shipping calculated at checkout.
Model

Payment & Security

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Trusted Delivery

  • Description
  • Reviews
    • $42.99

The solid carbide three-flute spiral bits are ideal for cutting deep and blind holes. Findbuytool offers industrial-grade solid carbide three-flute spiral bits in various sizes. Both upcut spiral bits and downcut spiral bits are available.

Features
  • Three-flute design with perfect chip removal efficiency.
  • Upcut spiral bits are perfect for processing wood boards with curved surfaces.
  • All cutting feed methods are acceptable.
  • Upcut spiral bits are ideal for cutting bottom veneers without tear-out; downcut spiral bits are for top veneers.
  • Bigger contact areas lead to a nicer finish on the inner surface of the wood piece.
  • Machine: CNC engraving machine, CNC machining center.
  • Application: MDF, veneers, solid wood.

Technical information

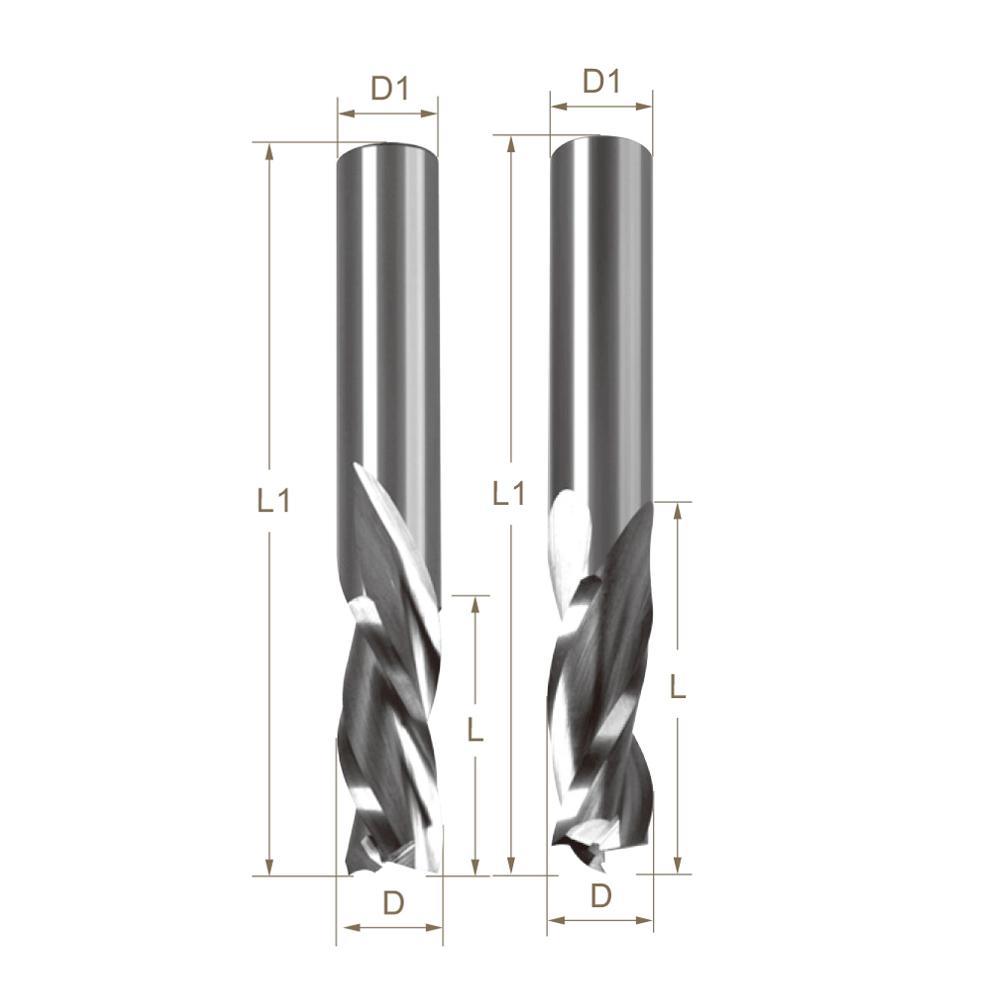

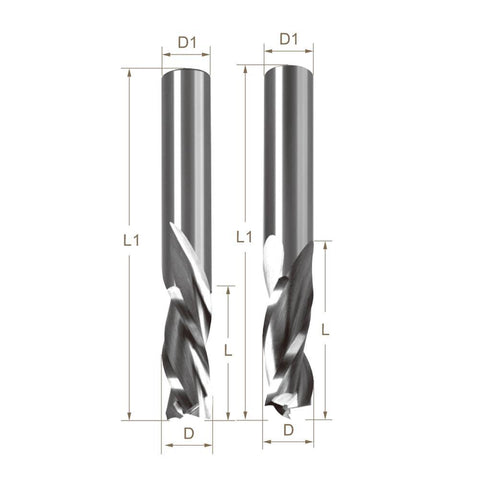

Size (inch) D1 (mm) D (mm) L (mm) L1 (mm) Material
8x8x25x70-UP 8 8 25 70 Tungsten Carbide
8 x 8 x 25 x 70-DOWN 8 8 25 70 Tungsten Carbide
10x10x25x70-UP 10 10 25 70 Tungsten Carbide
10 x 10 x 25 x 70-DOWN 10 10 25 70 Tungsten Carbide
12x12x32x80-UP 12 12 32 80 Tungsten Carbide
12x 12x42x90-UP 12 12 42 90 Tungsten Carbide
12x12x42x90-DOWN 12 12 42 90 Tungsten Carbide
12x 12x50x100-DOWN 12 12 50 100 Tungsten Carbide
16x16x50x100-UP 16 16 50 100 Tungsten Carbide
16x16x50x100-DOWN 16 16 50 100 Tungsten Carbide

Applications
  • Wood

Machine
  • CNC router machine
  • CNC engraving machine
  • CNC machining center
  • Router table

SHIPPING DIAMETER
  • UNIT
  • Pcs
  • Net Weight
  • 50
  • Package
  • In Plastic Box
  • Package Size
  • 95 x 18 x 18mm
