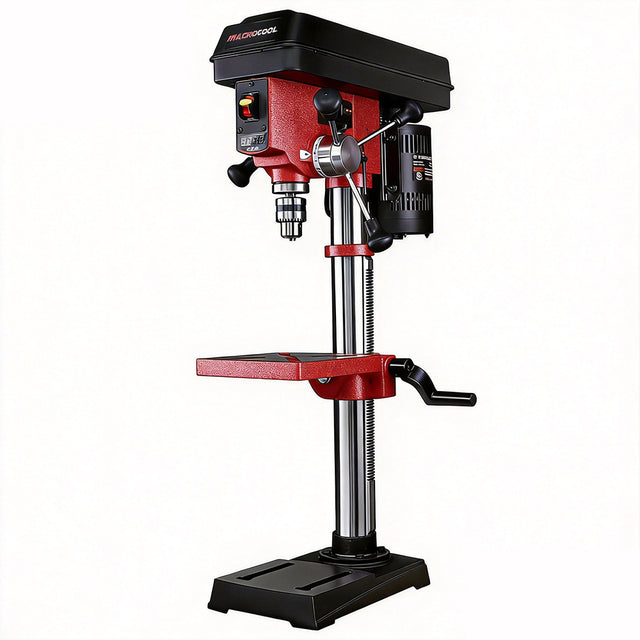

Machorool® FDP101 10" Variable Speed Benchtop Drill Press
- Description
- Spec
- What's In the Box
- Reviews

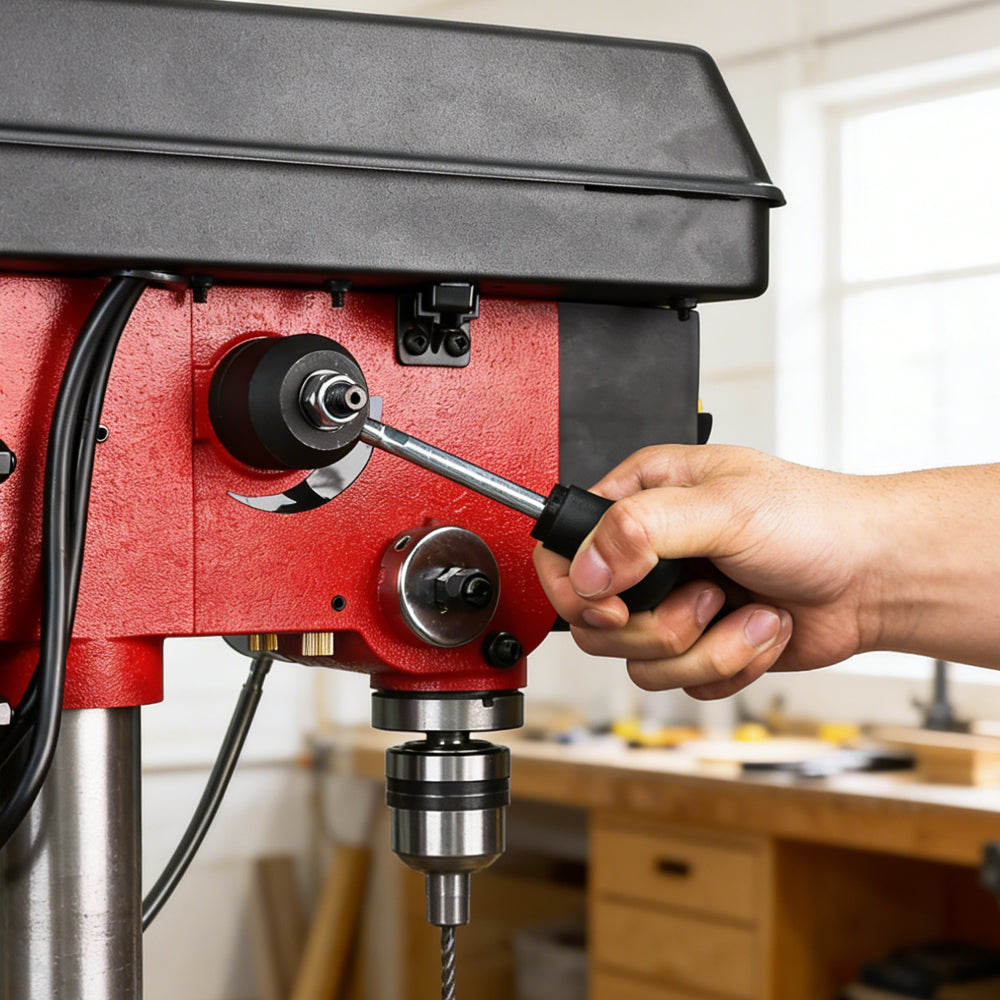

530-3100 RPM Variable Speed
Adjust the speed from 530 to 3,100 RPM with a quick turn of the handle, so you can dial in the right setting for your bit and material without shutting down the machine.

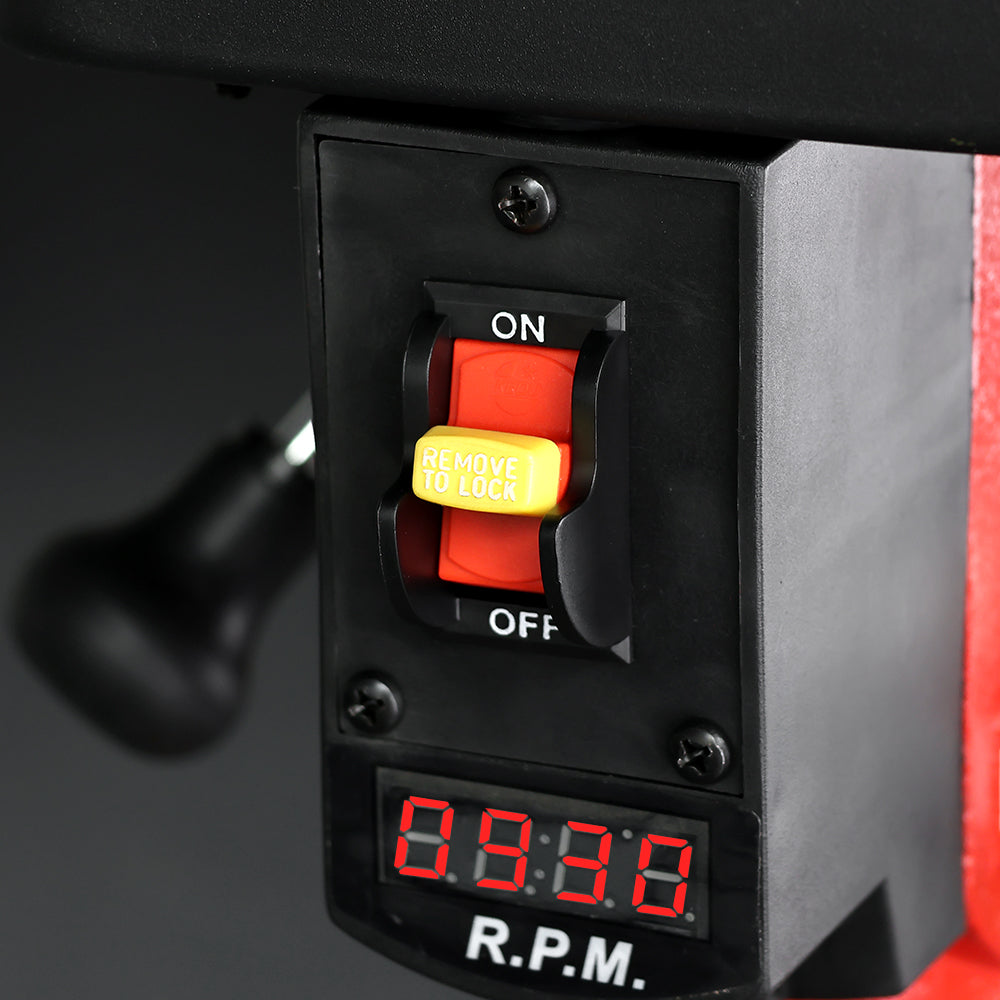

Highly-Visible Digital Readout
The high-definition digital speed display provides real-time feedback, eliminating guesswork and helping prevent over-drilling or bit damage. Ensure clean, precise holes every time.

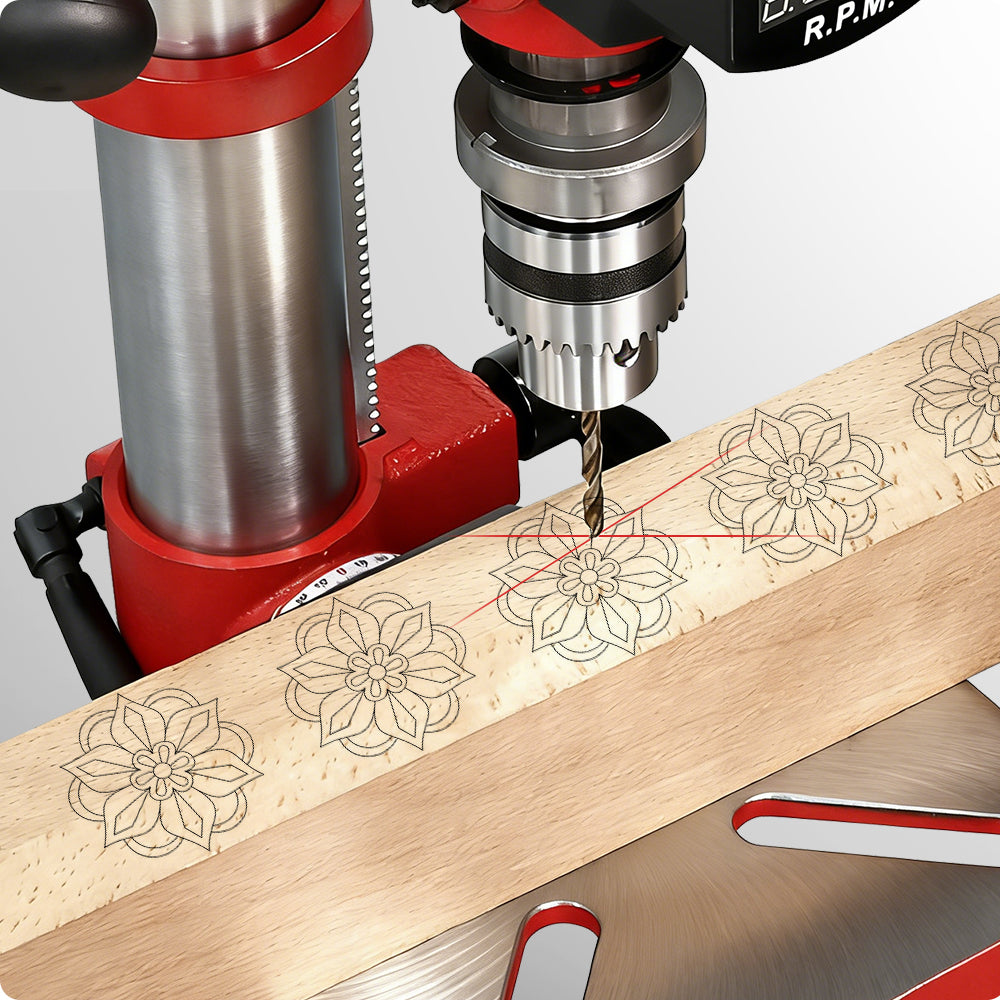

X-Laser Positioning
A laser Positioning system improves drill bit alignment for greater positioning accuracy and cleaner starts. It also helps prevent errors and reduce material waste.
Features of FDP101
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

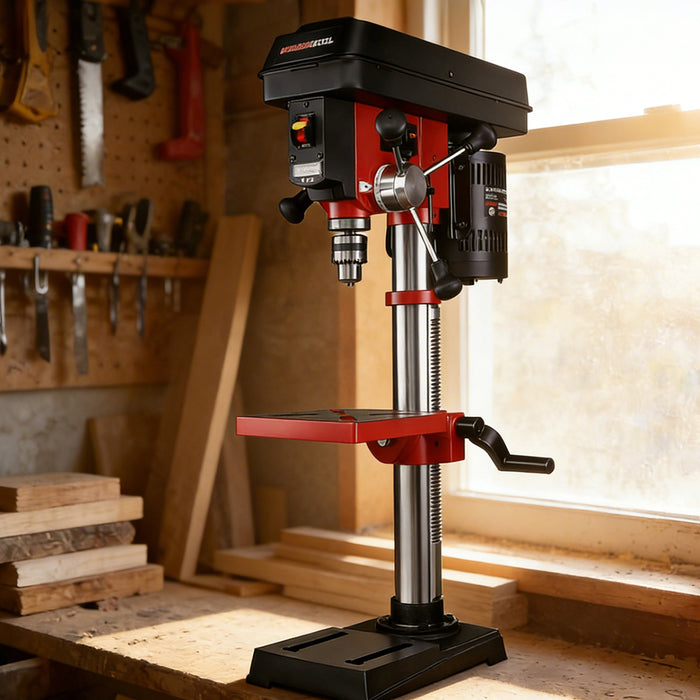

Cast Iron Construction
Cast iron where it counts—the worktable, base, and spindle head—keeps vibration under control and the machine steady, even during longer jobs. You get cleaner holes and more consistent performance over time.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

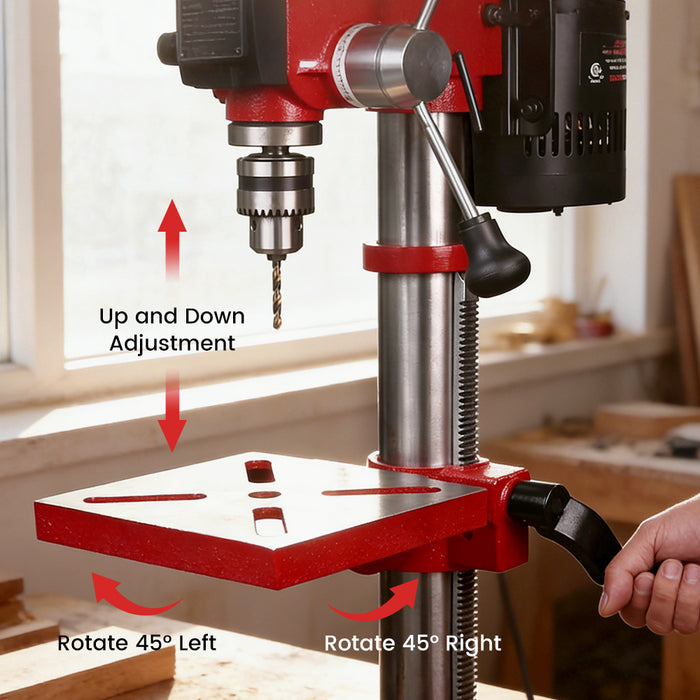

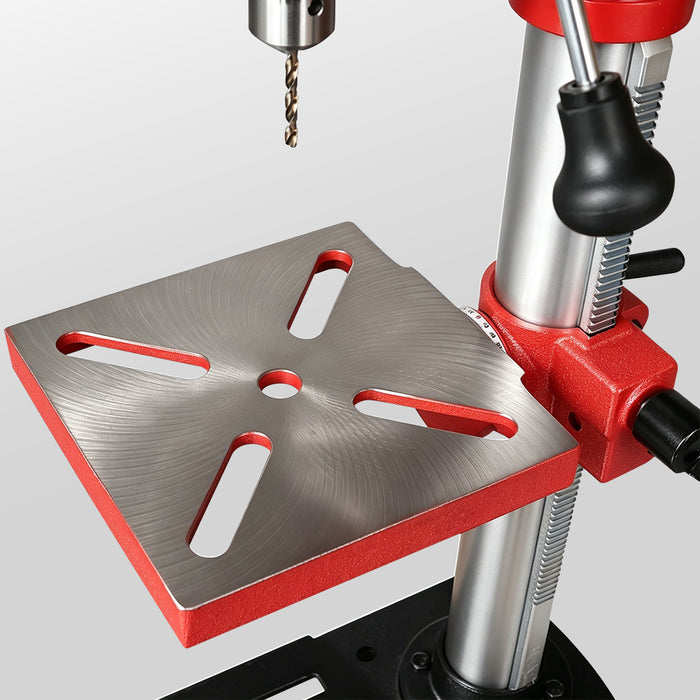

45° Left/Right Tilting Table
This 7-1/2 × 7-1/2 inch cast iron worktable can tilt 45° to the left and right, allowing it to flexibly meet drilling needs at various angles.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

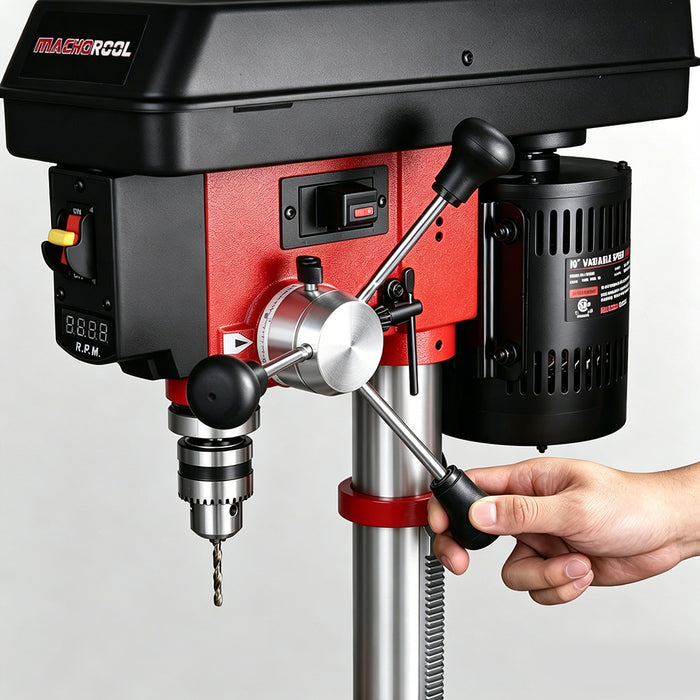

High-Precision Spindle
Our variable speed drill press produces more precise holes. The spindle delivers consistent torque across the full speed range, reducing stalling when drilling into harder materials.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

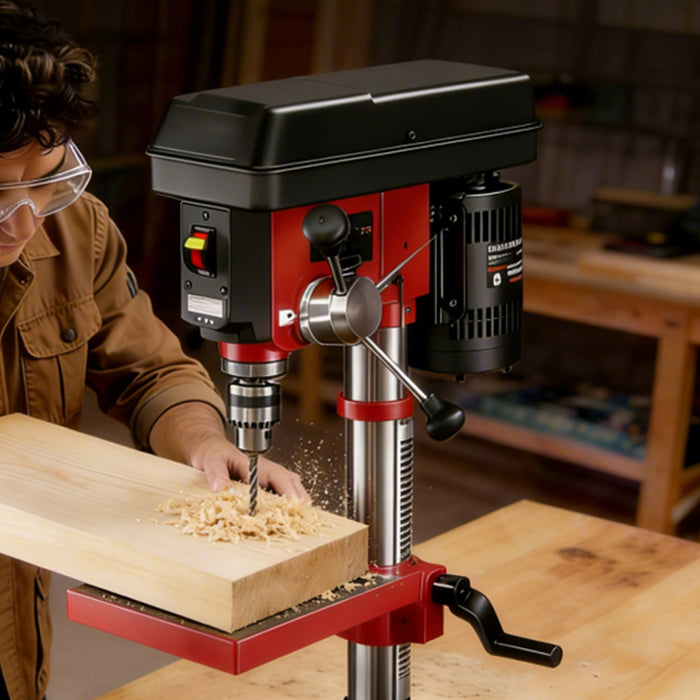

Powerful 5 Amp Motor
Equipped with a 5-AMP motor, a 10-inch swing, and a 2-inch spindle travel. The variable speed drill press can easily drill through wood, light metal, jade, plastic, etc.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

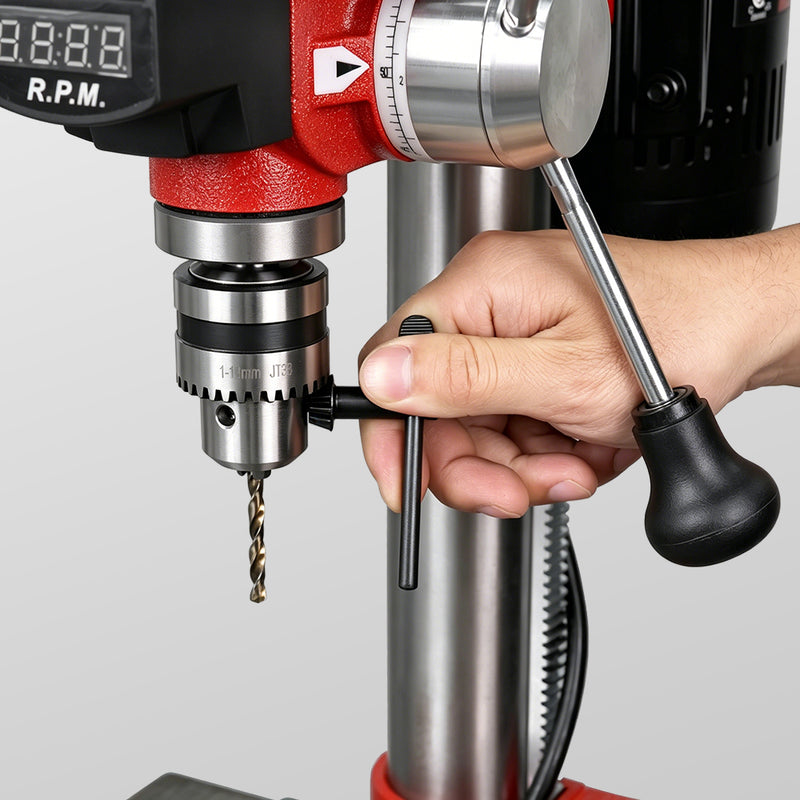

1/2-Inch Keyed Chuck And Onboard Key Storage
The precision drill press comes with a 1/2-inch keyed chuck and a dedicated storage rack for easy storage. No digging around when you need it.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

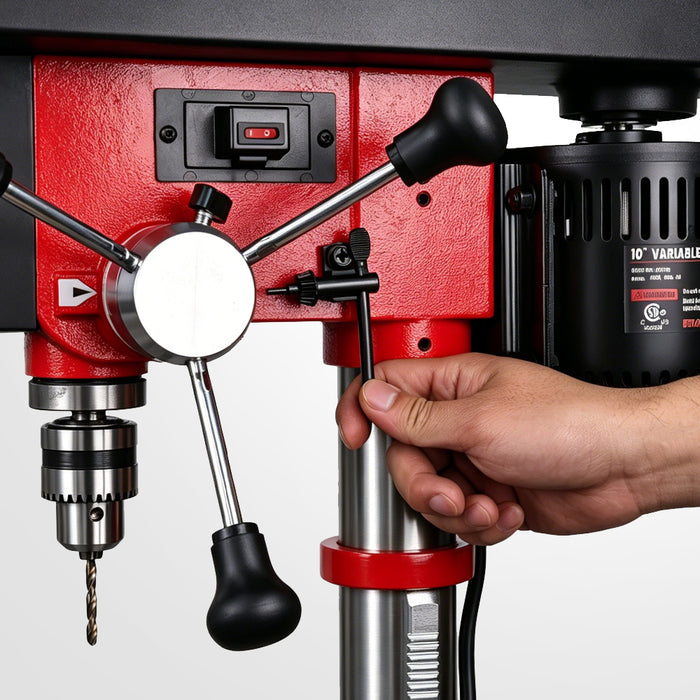

Adjustable Table Height
Rotate the table locking handle for easy height adjustment.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

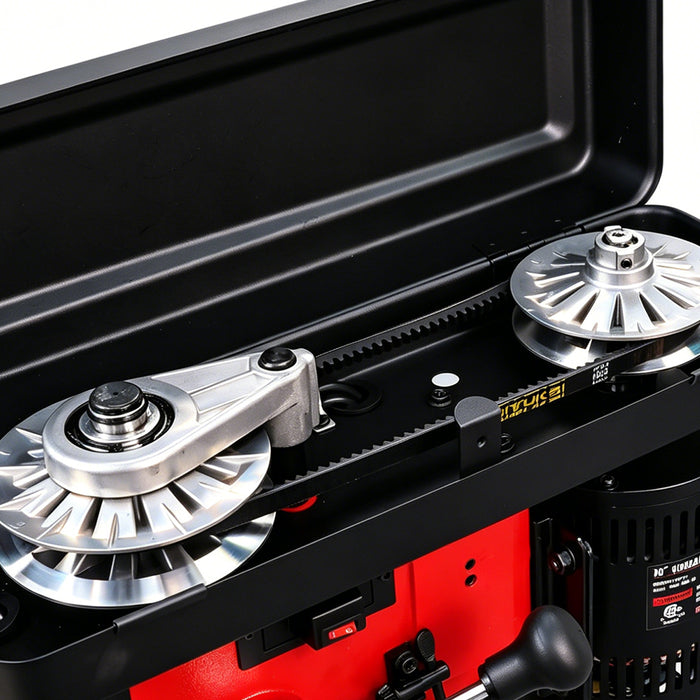

Upgraded Belt System
The belt stays firmly in place during operation, allowing precise speed adjustments without changing it. That cuts downtime and keeps your workflow moving.
-
![Machorool® FDP101 10" Variable Speed Benchtop Drill Press - FindBuyTool]()

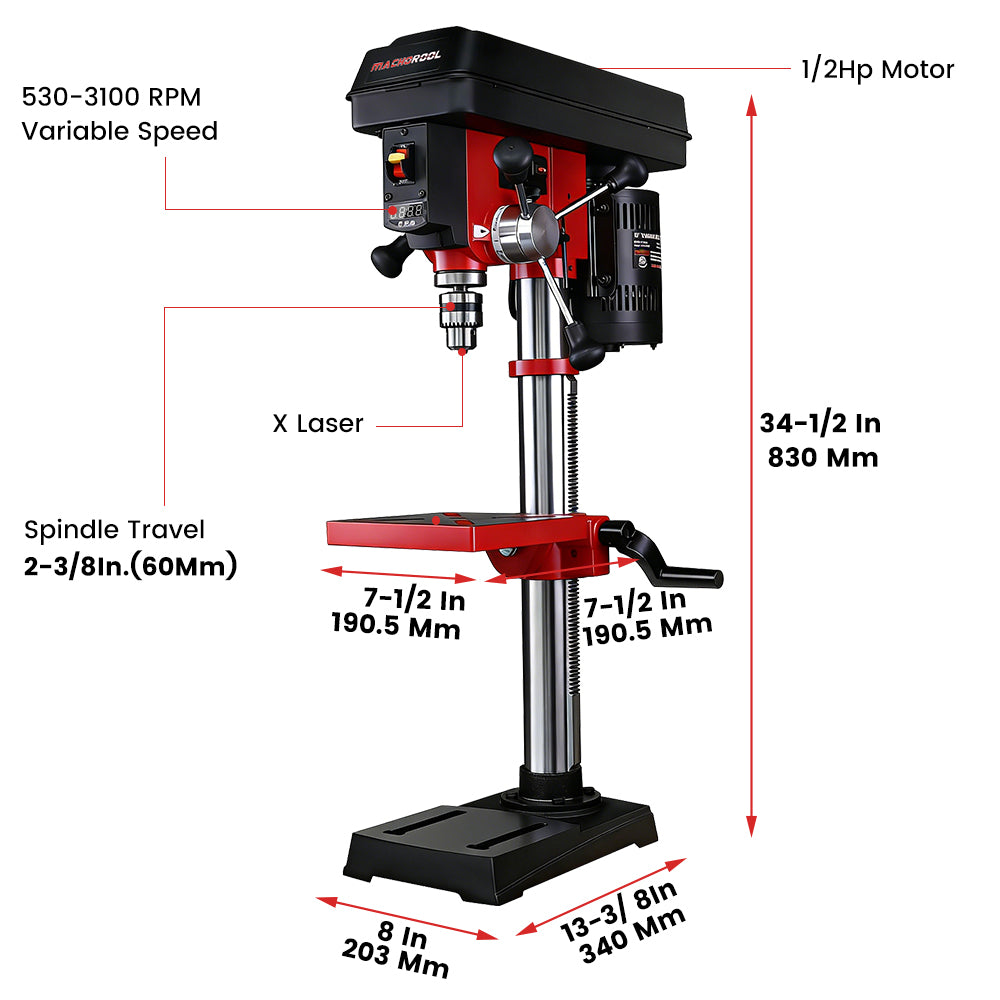

Compact Size, Easy to Move
The 10 inch drill press is 34-1/2 in. tall with a 13-3/8 × 8 in. base, weighing 64 lb. Small footprint, easy to position, and simple to move around the shop.
Technical Details
Model Number: FDP101
Motor: 120V.1/2HP, 1 PH, 5.0A,60Hz
Swing: 10 in.(250mm)
Range of Spindle Speeds: Variable, 530-3100 RPM
Drilling capacity: 5/8in. (15.86mm)
Table Tilt:45° left/right
Spindle Taper: JT3
Spindle Travel: 2-3/8in. (60mm)
Base Size: 13-3/8×8 in.(203×340mm)
Spindle Distance to Base: 21-1/4 in.(540mm)
Spindle Distance to Table(max.): 16-1/2 in.(420mm)
Overall Height：34-1/2 in. (830mm)
Table Size Diameter(width × depth): 7-1/2×7-1/2 in.(190×190mm)
Net Weight:59 lb.(26kg)
Package Weight:64 lb. (29 kg)
In the Box
-
![]()
1 × Head Assembly
-
![]()
1 × Column and Rack Assembly
-
![]()
1 × Table
-
![]()
1 × Base
-
![]()
1 × Chuck
-
![]()
1 × Chuck Key
-
![]()
3 × Handles
-
![]()
1 × Table Height Adjust Handle
-
![]()
1 × Speed Adjust Handle
-
![]()
4 × M8*25 Socket Cap Screws
-
![]()
1 × User Manual
FDP101 FAQs
How long will it take to receive my order?
How long will it take to receive my order?
Orders usually take 3-5 business days to arrive from our local warehouse in the USA.
Where is the user manual?
Where is the user manual?
Yes, click here to view the FDP101 user manual
What's your warranty policy?
What's your warranty policy?
Findbuytool offers a one-year warranty on all thickness planer, for more specific warranties, please check our warranty policy.
What's your return policy?
What's your return policy?
All customers have a 30 DAY MONEY BACK GUARANTEE
For more specific return and refund, pls check our return policy.
How do I change rpm speed?
How do I change rpm speed?
Adjust the spindle speed by changing the position of the spindle speed adjustment handle. The actual speed is displayed on the digital readout.
How much spindle travel does it have, or how deep can I drill?
How much spindle travel does it have, or how deep can I drill?
The spindle travel is 2" on the drill press.
Will it come preassembled?
Will it come preassembled?
Not completely.But The amount of assembly required is minimal. Simply follow the instructions to assemble it.
What does 10 inch swing mean?
What does 10 inch swing mean?
The 10-inch swing on a drill press refers to the maximum distance from the center of the chuck (the part that holds the drill bit) to the front of the support column (the vertical post that holds the drill head). It represents the maximum diameter of the workpiece that can be accommodated by the drill press.
