Indexable Boring Bar Set, 3/4Inch Shank, 8Pcs
SKU:
J0S8PTK34KA01
686,00 lei RON
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Indexable Boring Bar Set, 3/4Inch Shank, 8Pcs - 1 Set is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Delivery
Indexable Boring Bar Set, 3/4Inch Shank, 8Pcs
686,00 lei RON
Unit price
/
Unavailable
- Description
- Reviews
686,00 lei RON
Unit price
/
Unavailable

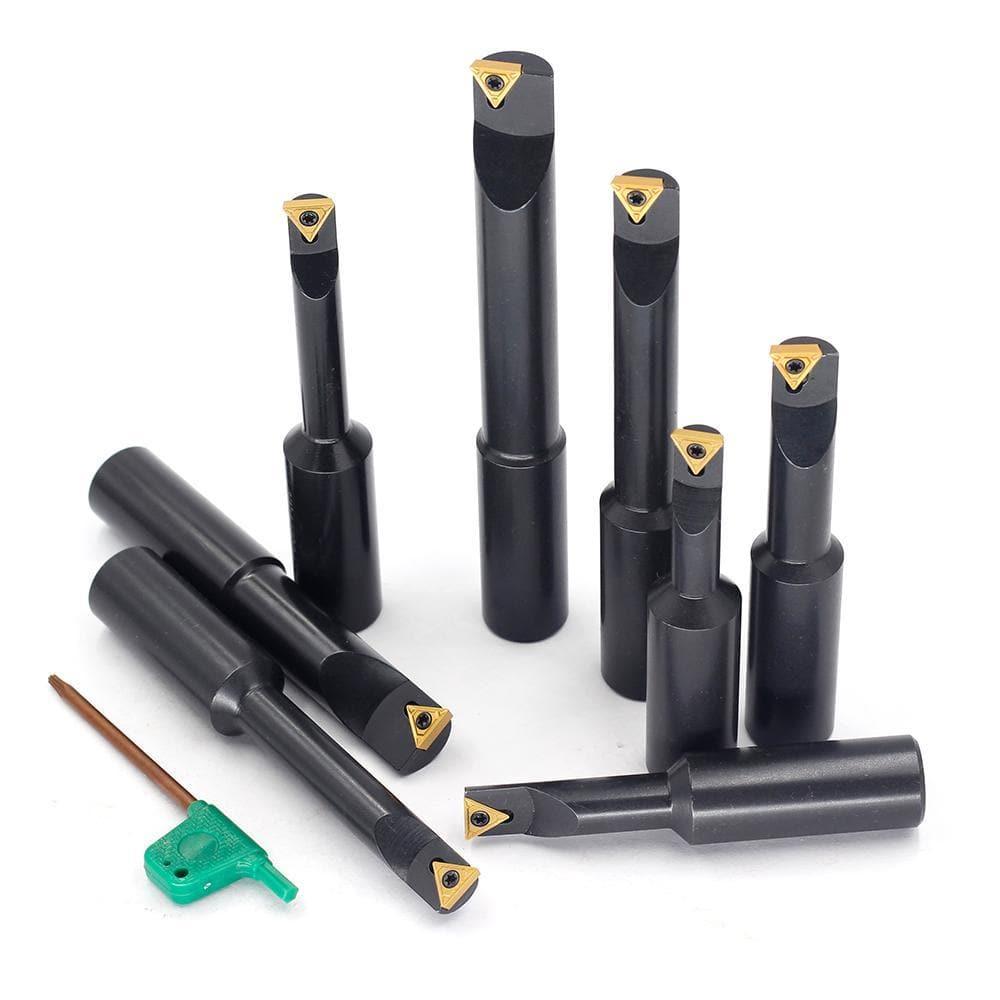

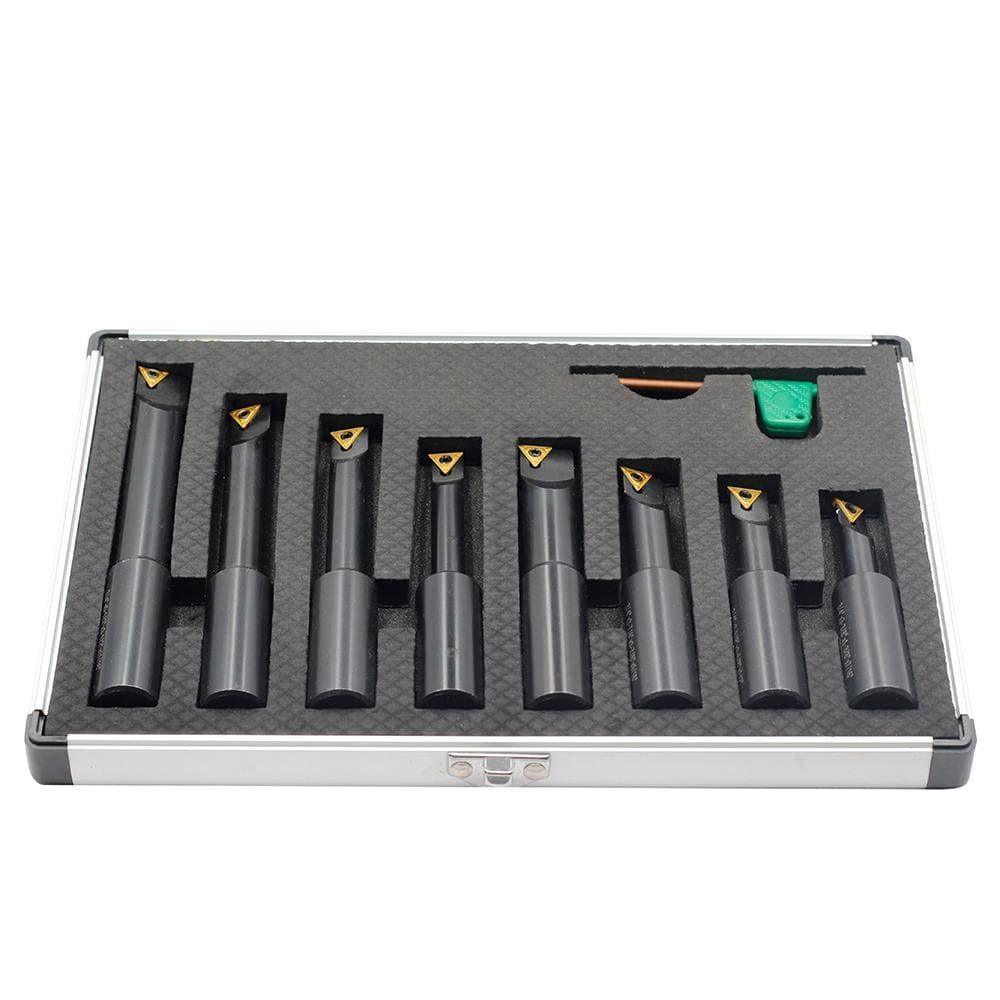

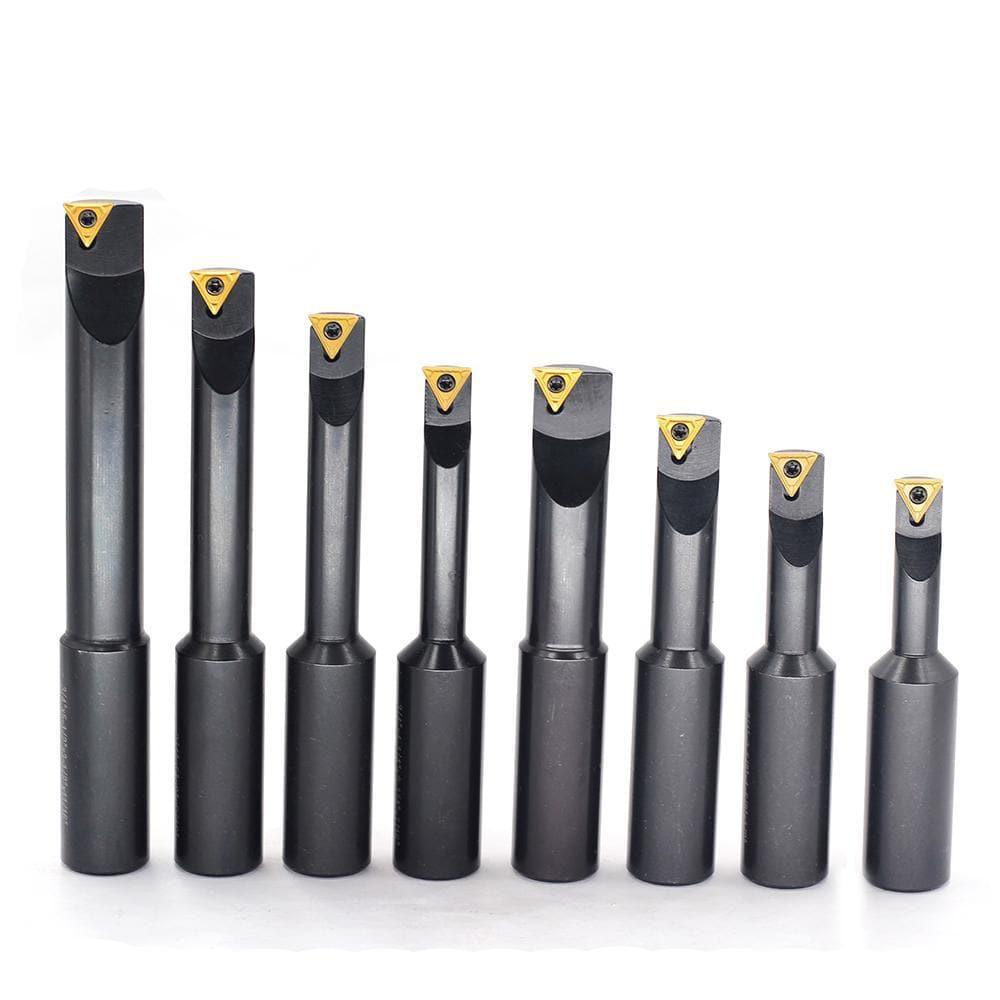

8 Pcs boring bar set includes 8 indexable boring bars, used for turning internal hole, reaming,and copying.
Technical information
Technical information
| Shank | OAL | Bore Depth | Min Bore Diameter | Insert | Insert Screw | Key | Material | Image |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 3-3/8" | 1-3/8" | 7/16" | TCMT110204 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel |  |
| 3/4" | 4-1/4" | 2-1/4" | 7/16" | TCMT110204 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 3-5/8" | 1-5/8" | 1/2" | TCMT110204 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 4-5/8" | 2-5/8" | 1/2" | TCMT110204 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 3-7/8" | 1-7/8" | 9/16" | TCMT110304 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 5" | 3" | 9/16" | TCMT110304 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 4-1/4" | 2-1/4" | 11/16" | TCMT110304 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel | |
| 3/4" | 5-1/2" | 3-1/2" | 11/16" | TCMT110304 | M2.5x5 M2.5x6 M2.5x7 | T8 | Nickel coated steel |
Machine
Machine
- Lathe Machine
- Boring Machine
Items
Items
- 8 Pcs Bars
- 8 Pcs Carbide Inserts
- 8 Pcs Screws
- 1 Key
SHIPPING DIAMETER
SHIPPING DIAMETER
- Net Weight: 1355 g
- Package Size: 255 x 180 x 40mm
