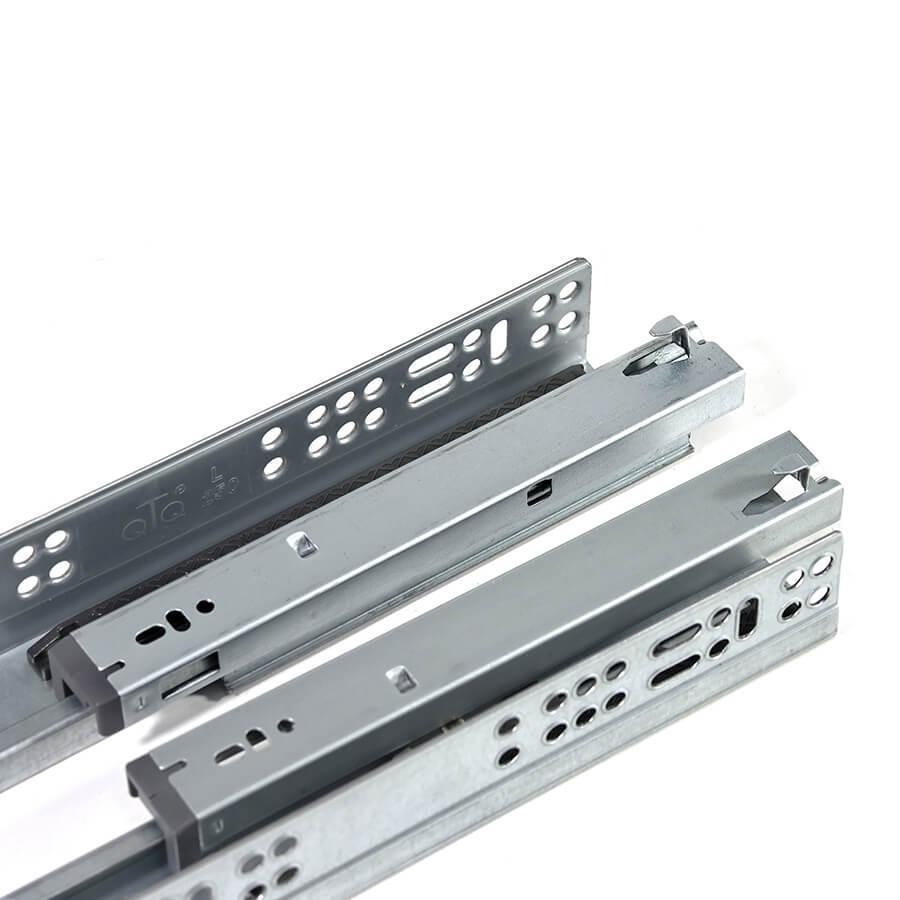

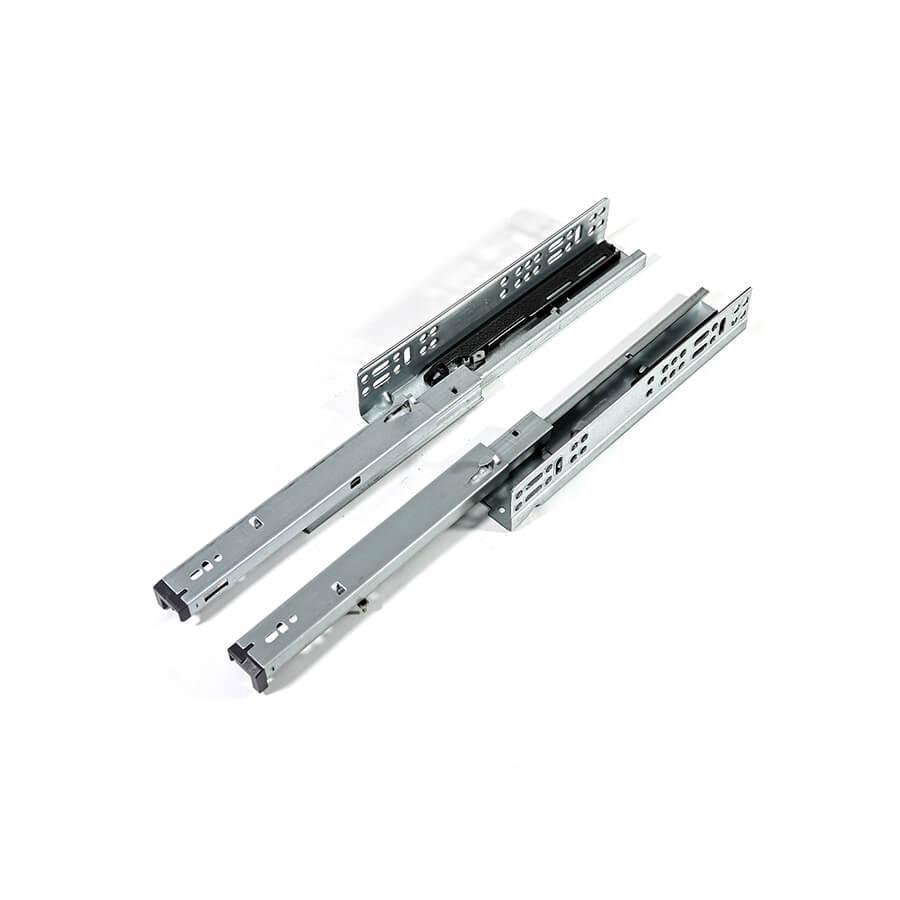

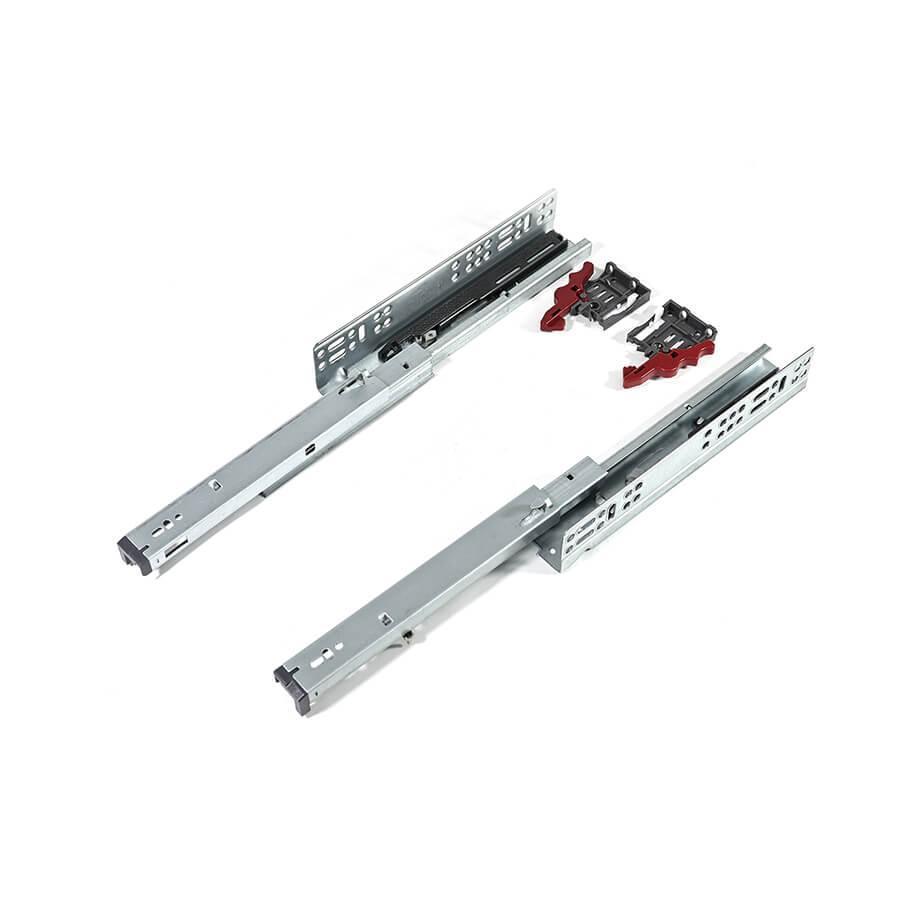

Soft-Close Concealed 3-Section Undermount Drawer Slide, 1 Pair

FEATURING

• Smooth Soft Close feature closes gently and quietly during the last few inches of travel.
• Full extension design allows complete access to the entire drawer.
• Undercounter installation completely conceals the drawer slide.
• Supports 55 lb. (25 kg)  weight while maintaining smooth operation.
• High-Quality Damping System – Ensures silent and controlled drawer closure.
• Fits 1/2" to 5/8" (12mm to 16mm) and 5/8"to 3/4 "(16mm to 19mm) wooden drawer sides.
• Multi-hole design allows for flexible screw installation.
• The Anti-Drop Hook Design prevents drawers from accidentally falling.

APPLICATION

• Drawer

SPECIFICATIONS

• Extension: Full-extension
• Weight Rating: 55.1 lb (25kg)
• Soft Close: Yes
• Mounting Type: Undermount
• Slide Length: Choose from a range of lengths
• Compatible Drawer Side Thickness: 1/2'' to 5/8'' (12mm to16mm) and 5/8''to 3/4 "(16mm to 19mm)
• Required Side Clearance (Each Side): 13/64" (5mm)

SHIPPING DIAMETER

• UNIT: Pcs
• Net Weight: 1200g
• Package: In Plastic Box
• Package Size:
